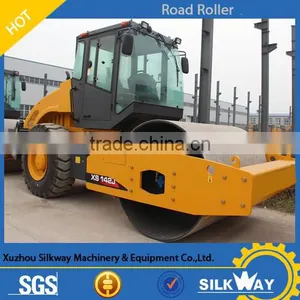

Hot Sale XS143J Single Drum 14ton Vibratory New Road Roller Price
Main Specifications:
Engine Shangchai 92kW
Operation weight 14000kg
Drum width 2130mm
Dimension(L*W*H) 6010*2340*3200mm
Single drum
Optional Parts:
1. Air Conditioner
2. Padfoot drum (exchanged/welded)
Feature of XS143J Single Drum 14ton Vibratory New Road Roller Price
It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature

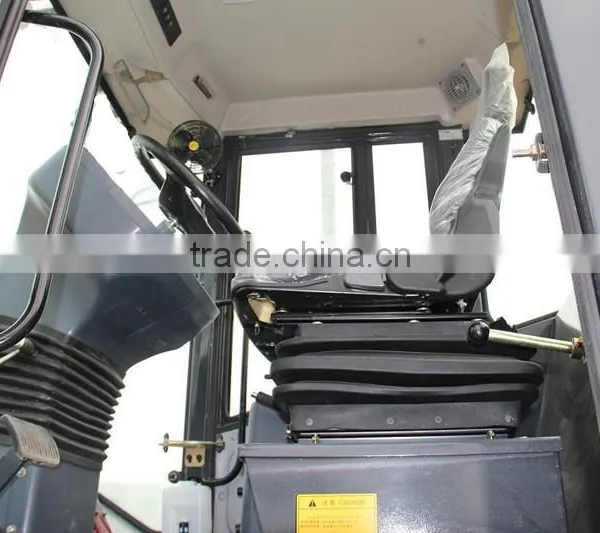

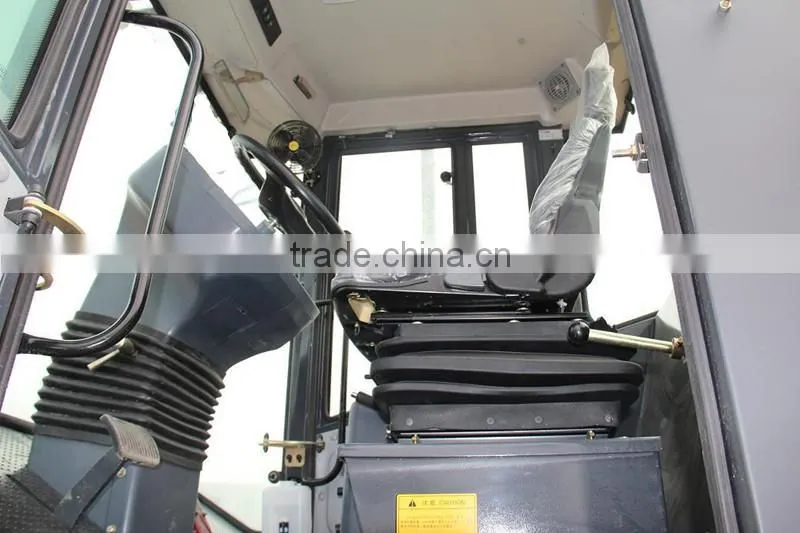

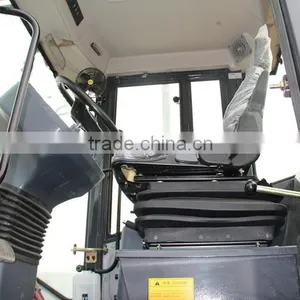

•The spacious and bright cab features wide view and comfort.
Simple operation

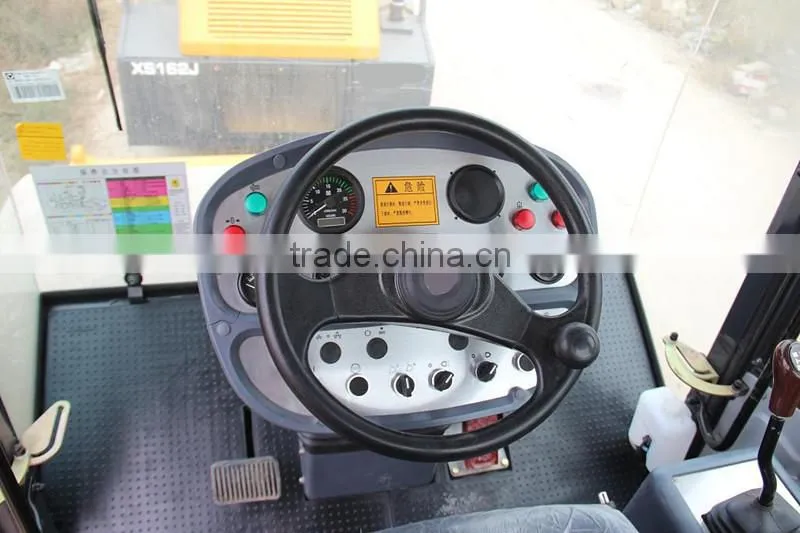

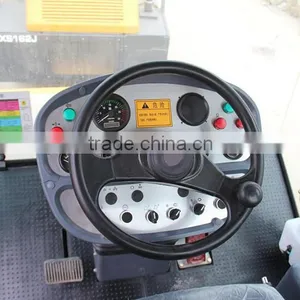

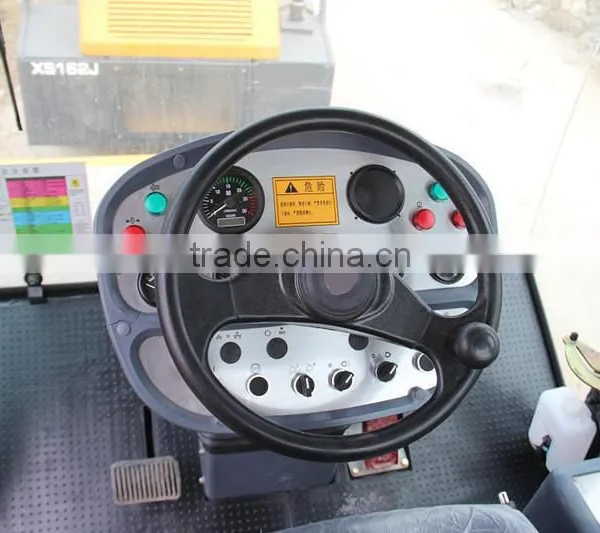

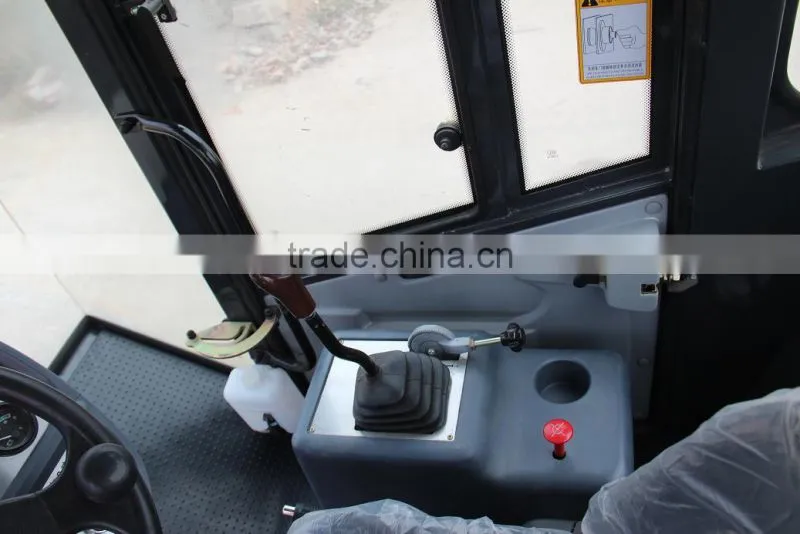

•The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
•Adot the gearbox with synchronizer, which is easy to operate.
•The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
•The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
•Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
Optional configuration
•The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
•The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
•The high positioned air intake prolongs the maintenance interval of the air filter.
Type |
Unit |
XS143J |
Static linear load |
(N/cm) |
315 |
Vibration frequency(Low/High) |
(Hz) |
28 |
Excitation force(High/Low) |
(mm) |
1.9/0.95 |
Excitation force(High/Low) |
(Kn) |
274/137 |
Theoretical gradeability |
(%) |
30 |
Min. external turning radius |
(mm) |
6800 |
Operating weight |
(kg) |
14000 |
Load on front drum |
(kg) |
7300 |
Load on rear wheels |
(kg) |
6700 |
Dimension |
(mm) |
6010×2340×3200 |
Wheel base |
(mm) |
3040 |
Compacting width |
(mm) |
2130 |
Steering angle |
(°) |
±33 |
Swing angle |
(°) |
±11 |
Min. ground clearance |
(mm) |
431 |
Engine model |
- |
SC5D125G2B1 |
Rated engine speed |
(r/min) |
2200 |
Engine power |
(Kw) |
92 |
Discharge standard |
|
EURO 2 |

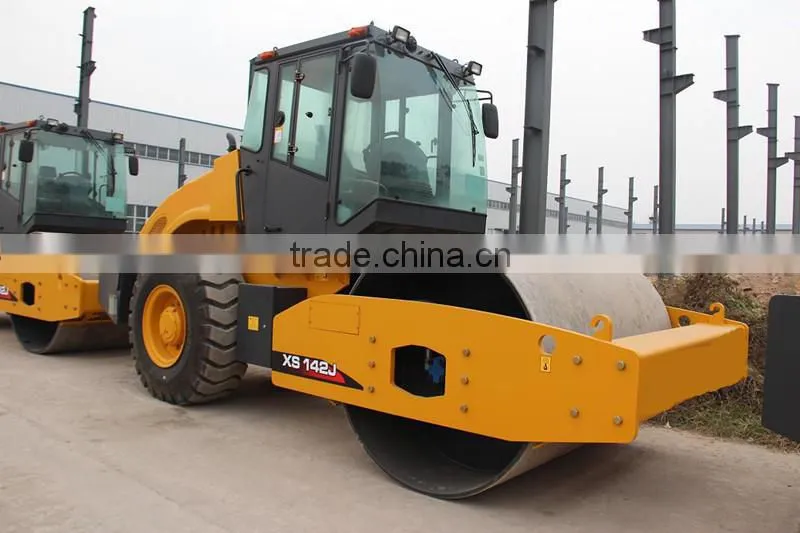

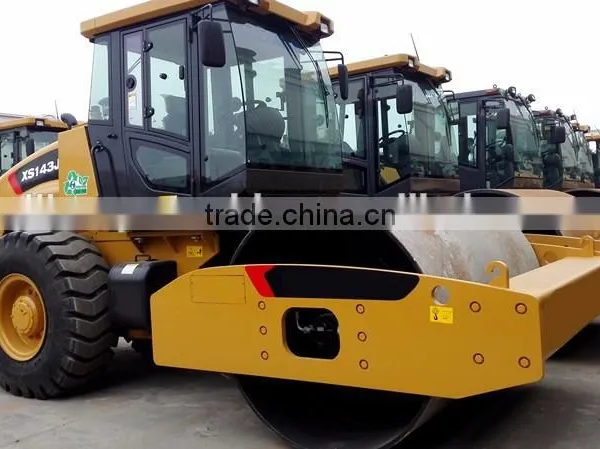

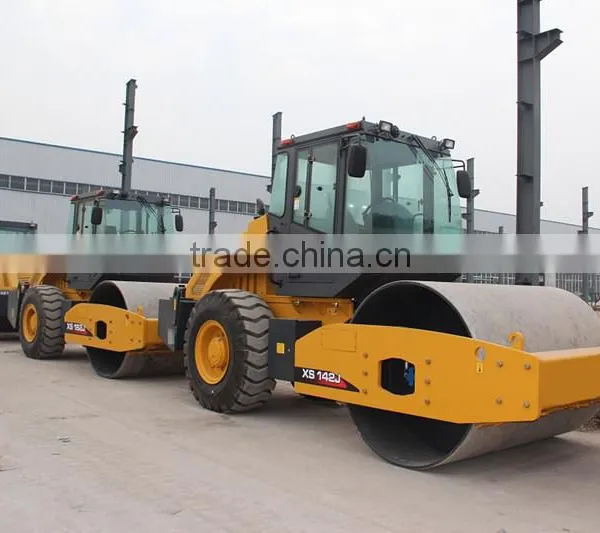

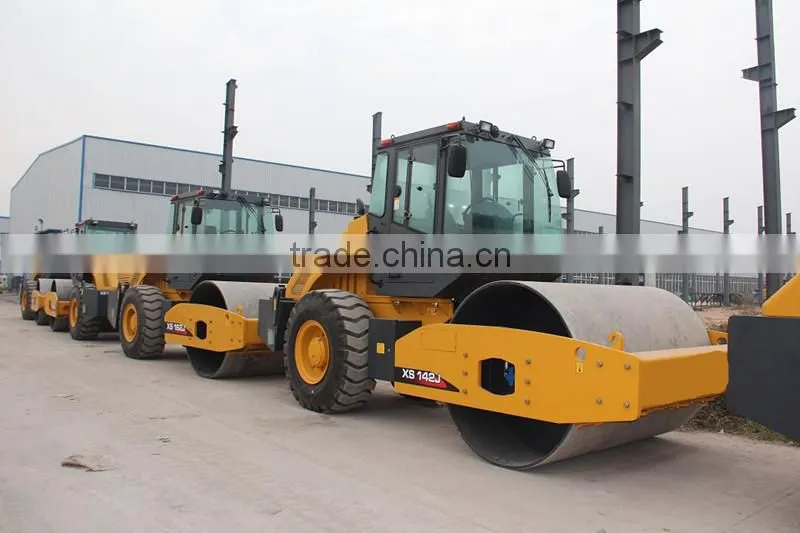

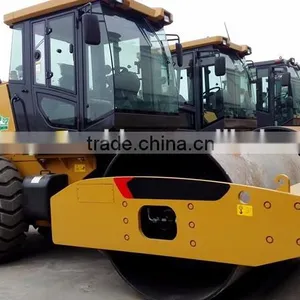

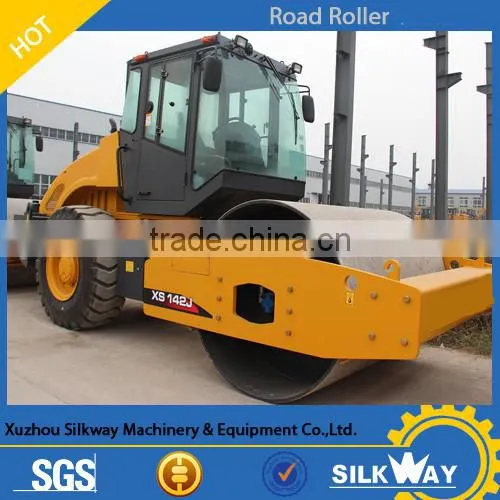

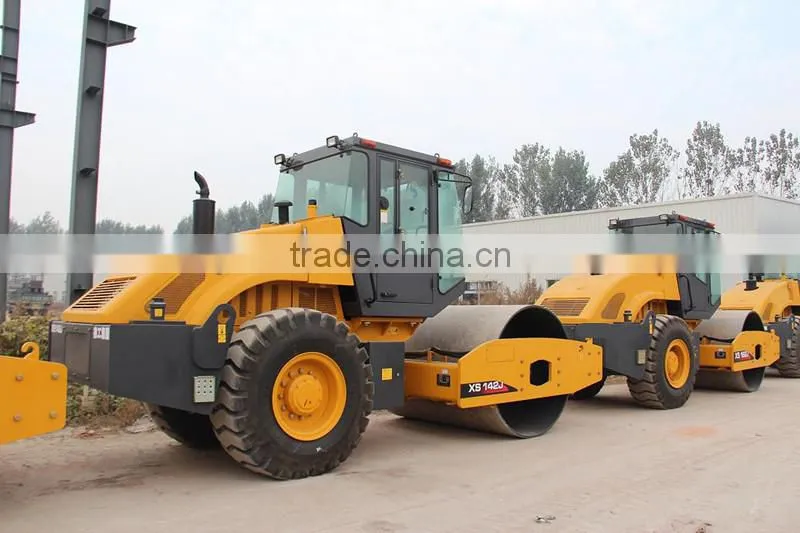

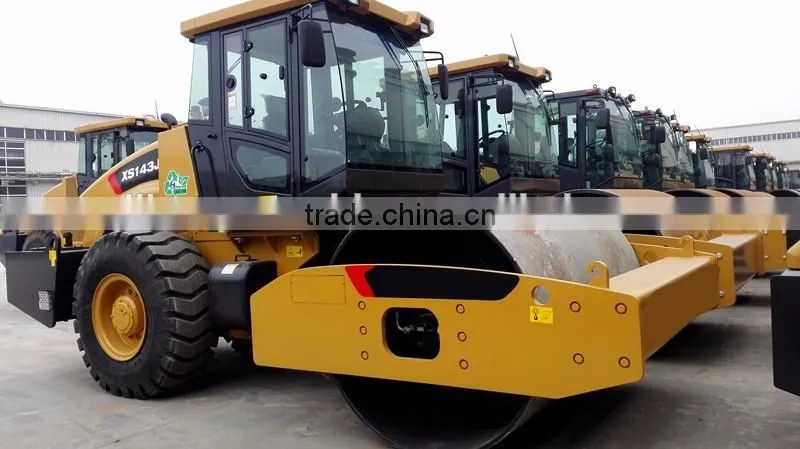

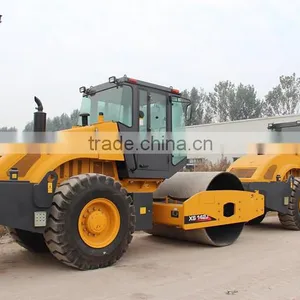

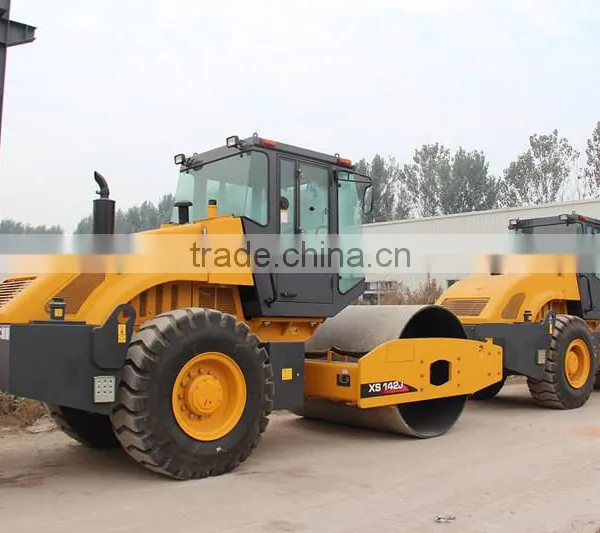

Photos of XS143J road roller:
Our Company Silkway:
WHAT ARE OUR ADVANTAGES ?
1. Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedback from clients, our price is more competitive than manufacturer /factories.
2. Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
Our Sales Service:
01. Being available online 24 hours a day.
02. Responding to your e-mails at the first time.
03. Providing the best choice according to the customer’s needs.
04. Giving reception and organize visit of the factory, meeting, technical communication for the customers.
After-sales Service:
1. Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
2. Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
Any questions, pls feel free to contact us!
