Introduction:

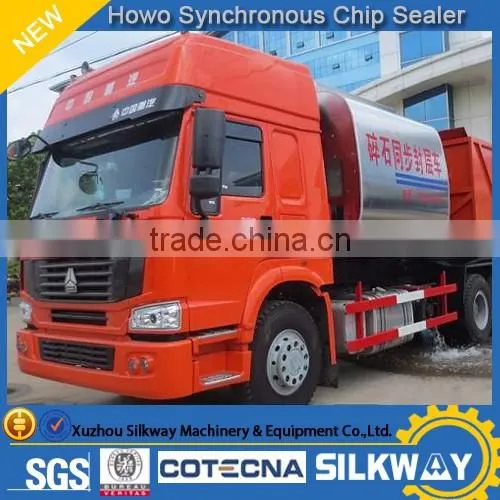

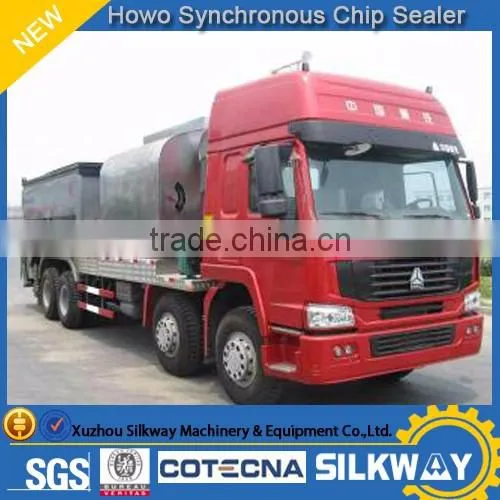

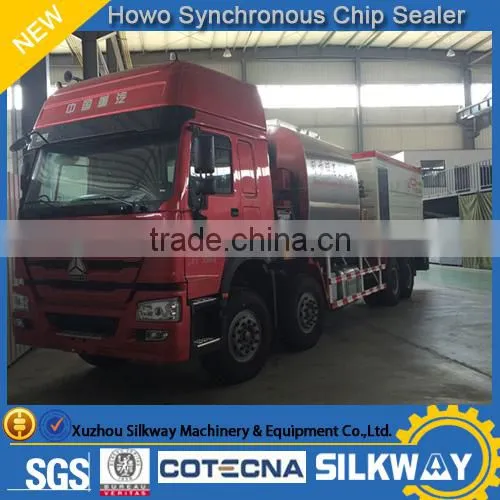

the New 2017Howo Synchronous Chip Sealer, special machinery for asphalt pavement construction and can be widely applied into the highway operation work of fast synchronous spraying. It features cost-saving, surface wear-resistant, anti-skidding and waterproof. The normal traffic could be resumed soon after the construction. It applies to the construction of the highways at different levels.
Howo Synchronous Chip Sealer | |||
Model Name |
HOWO Synchronous Chip Sealer |
||
Driving Type |
6×4,leftt hand drive |
||
Weights | |||
Payload weight(kg) |
28400 |
||
Curb weight(kg) |
17600 |
||
Dimensions | |||
Wheelbase(mm) |
4600+1500 |
||
Overall Dimension(mm) |
10200×2500×3563 |
||
Front /Rear tread (mm) |
2022,1830/1830 |
||
Front/rear overhang(mm) |
1500/2750 |
||
Approach/Depature angle(°) |
16/14 |
||
Engine | |||
Engine model |
WD615.69 |
||
Engine type |
6 cylinder in line, water-cooled ,Intercooling engine |
||
Engine Power |
247kw(336hp) |
||
Displacement(L) |
9.726L |
||
Drive Line | |||
Cluth description |
Dry single plate, hydraulic control booster,mechnical operation |
||
Transmission |
HW15710.(10 forwarder,2 reverse gear,Manual operation) |
||
Steering system |
ZF8098 |
||
Axles | |||
Rear Axle(drive axle) |
13tons*2 |
||
Front Axle-Model |
7tons |
||
Tire specification | |||
Tire specification |
12.00R20 14PR,10+1 |
||
Bitumen sraying | |||
Bitumen tank |
Material: |
4mm steel plate.60mm insulation layer,stainless steel outside .it can prevent the heating losing |
|
|
Tanker volume |
8m3 |
|
|
1 unit box on each side,with lock |
||
Bitumen pump |
Model |
QGB950 |
|
|
Flow |
950 l/min |
|
|
Rated speed |
584 r/min |
|
|
Resolve pressure |
0.8 Mpa |
|
Heating heater |
Brand : |
Riello G20(Italy Original) |
|
|
Efficiency |
2*10^4 kcal/h |
|
Bitumen |
Sorts can by sprayed |
Hot bitumen, hot modified bitumen, diluted bitumen, emulsified bitumen, specified rubber modified bitumen |
|
Bitumen distribution |
Spraying arm |
Floding mode spray arm , |
|
|
Distribution width |
4m |
|
Aggregate spraying | |||
Aggregate cabin |
Volume |
12m3 |
|
Aggregate |
Specified diameter |
S3 ~S24 mm |
|
Spraying |
Width |
4m |
|
|
Currency |
±2% |
|
Hydrualic system and control system | |||
Hydrualic pump |
Model |
Parker GPC4-50-25-20/20 (USA brand) |
|

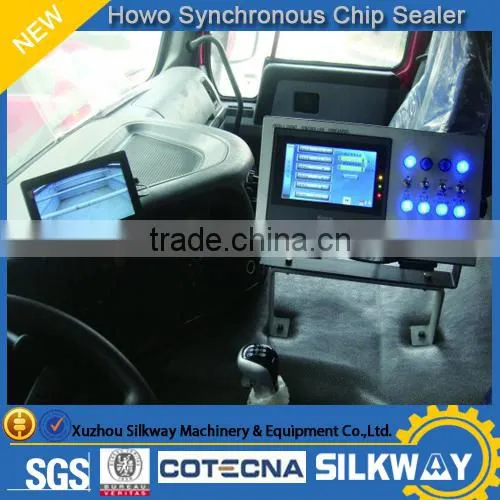

Control system |
Model |
Siemens CLW-32-01 |
|
