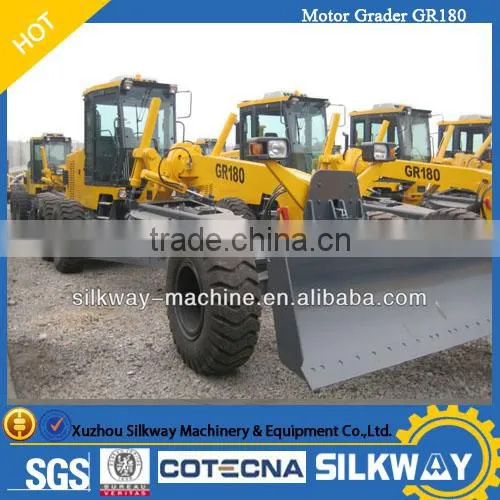

2017 Hot Sale Brand New 180HP GR180 China Cheap Motor Grader for Sale
Main Description:
Engine Shangchai or Cummins 190HP
Operating weight 15.4t
Moldboard width*height 3965*610mm
Dimension(L*W*H)8900*2625*3470mm
Meritor axle, imported hydraulic parts
Optional Parts:
1. Front blade
2. Rear ripper

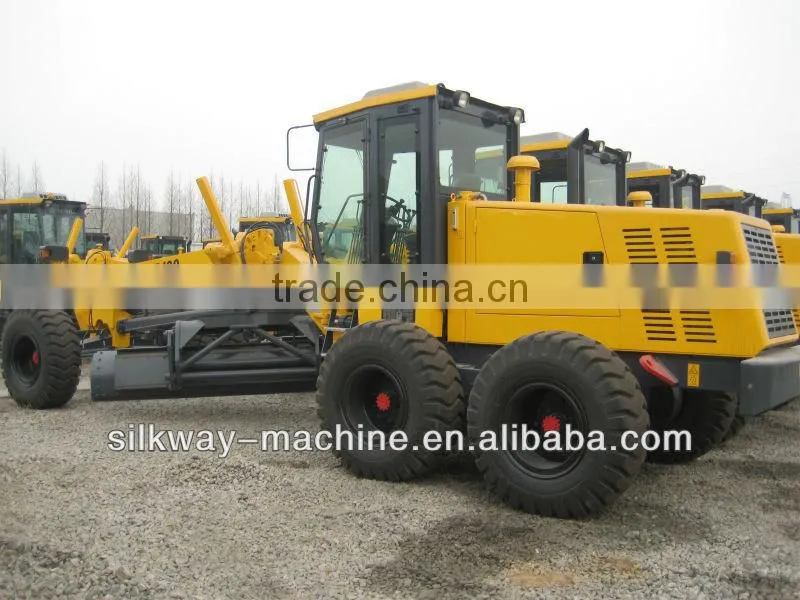

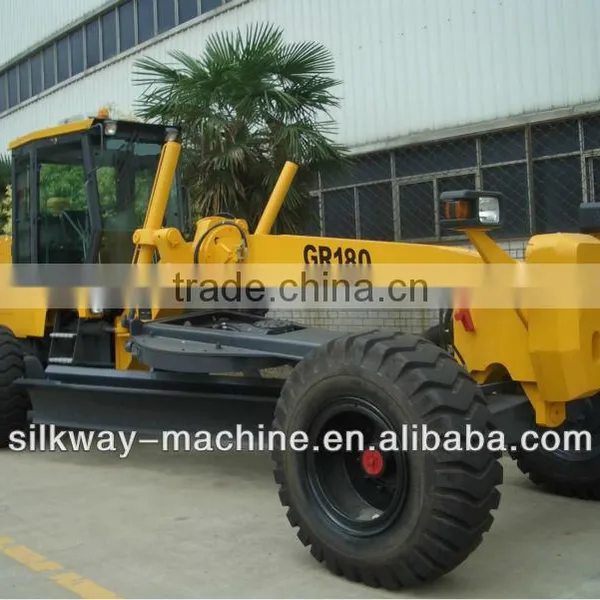

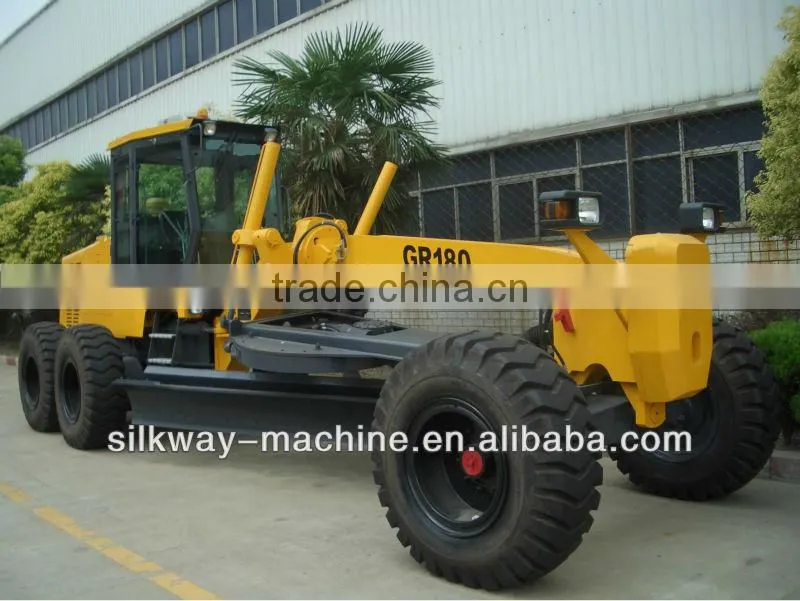

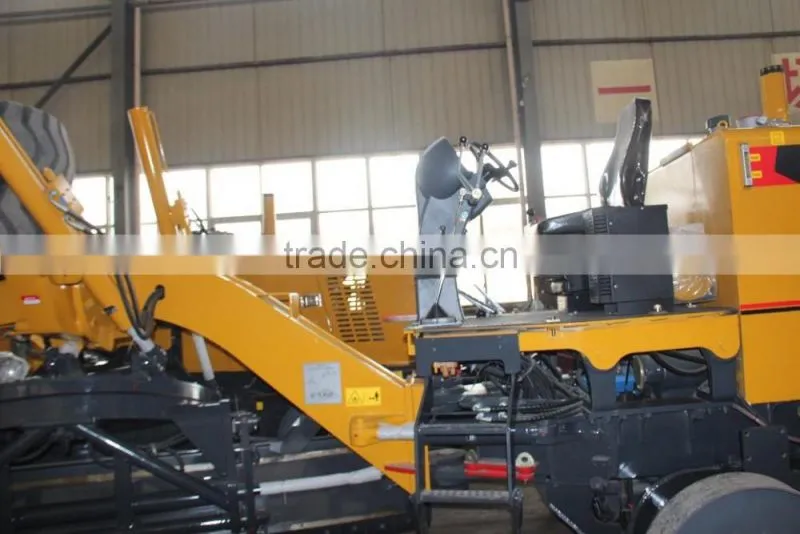

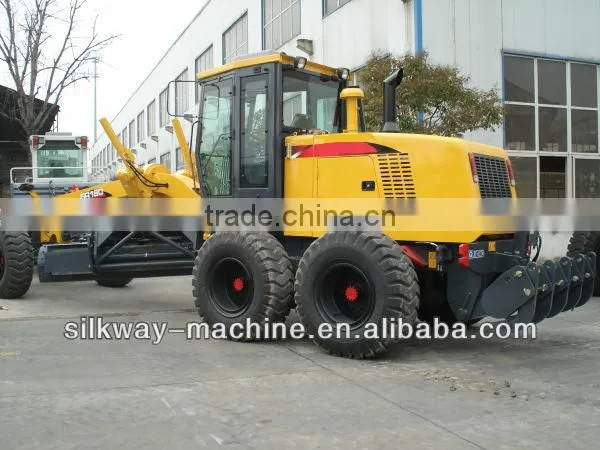

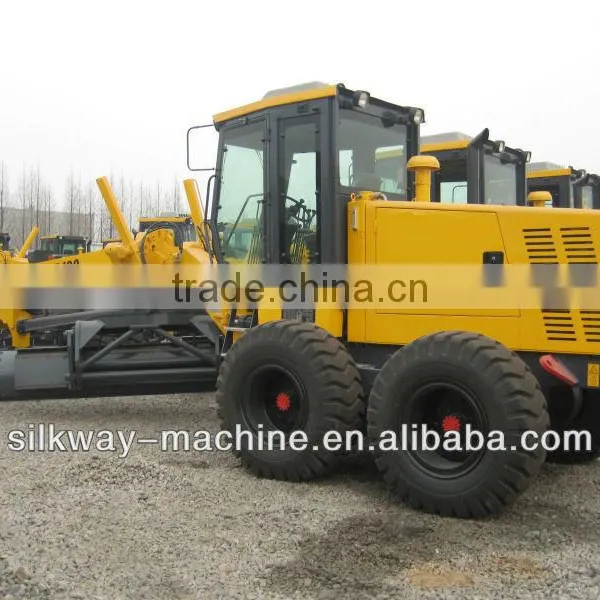

Photos: 2017 Hot Sale Brand New 180HP GR180 China Cheap Motor Grader for Sale

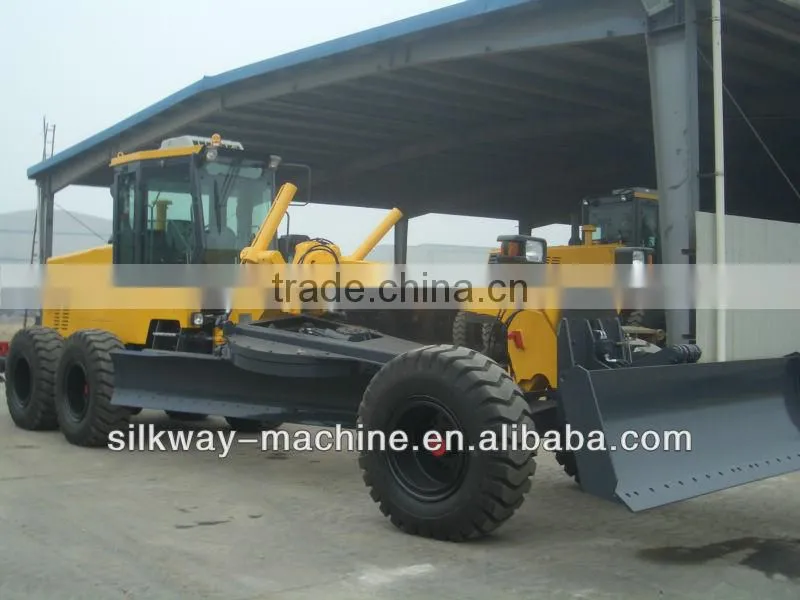

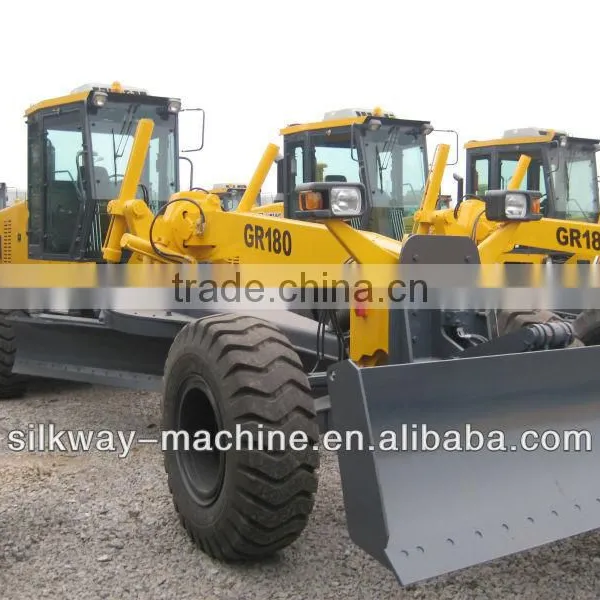

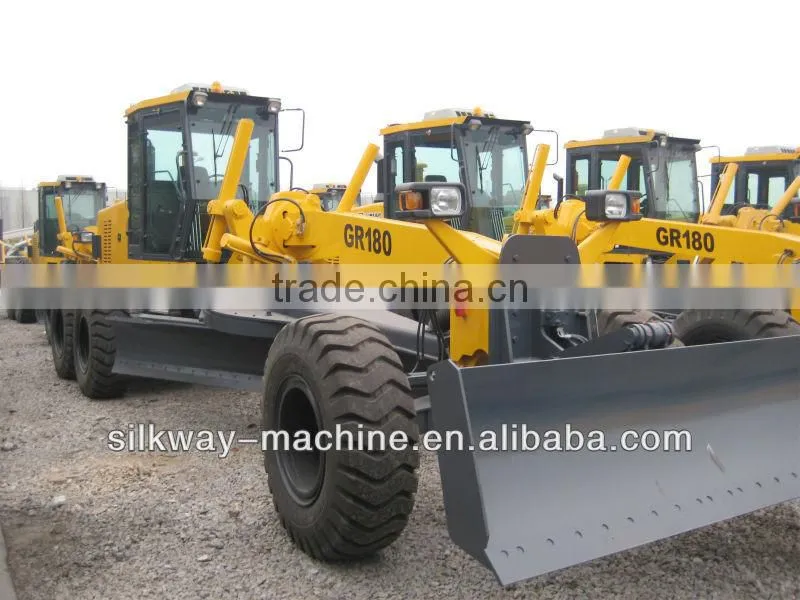

Front Blade:

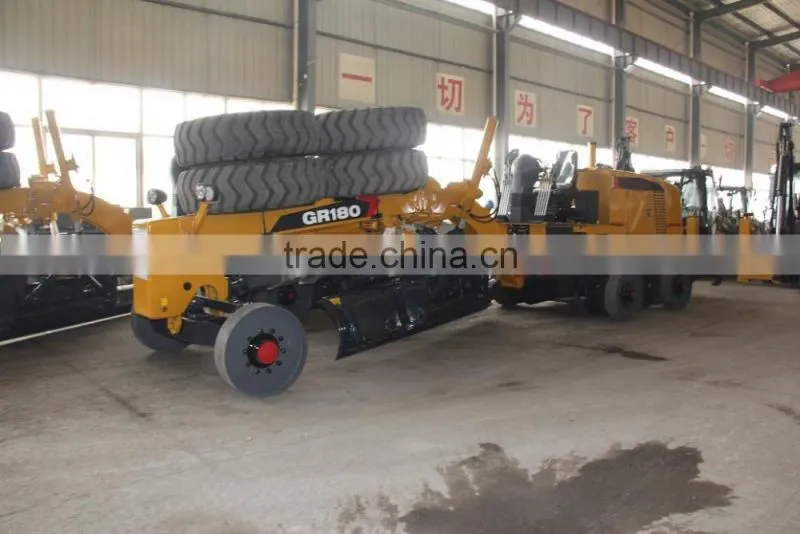

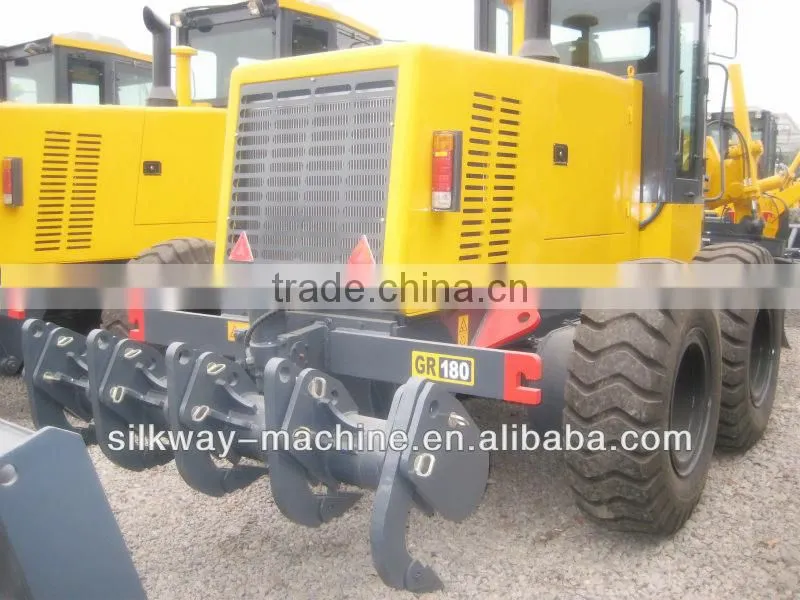

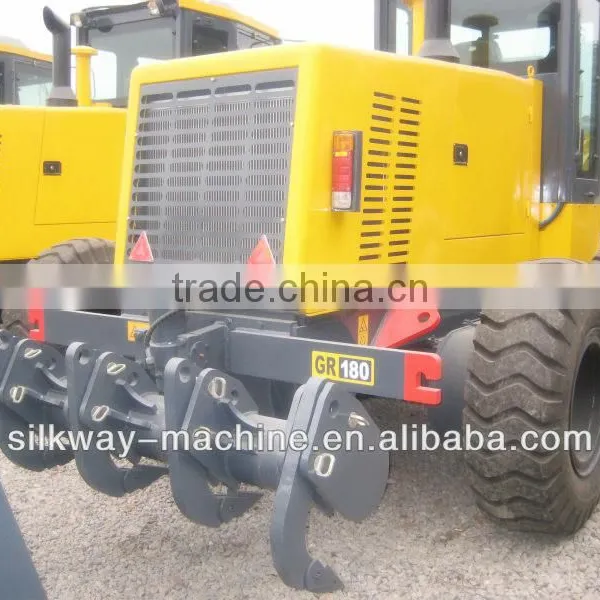

Rear Ripper:

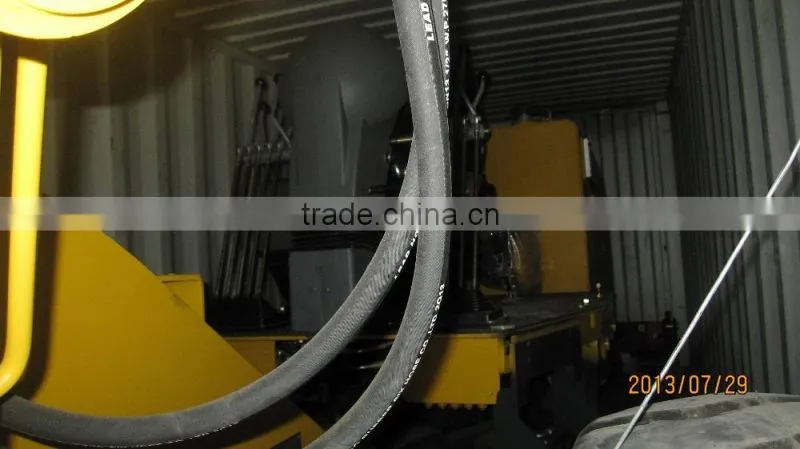

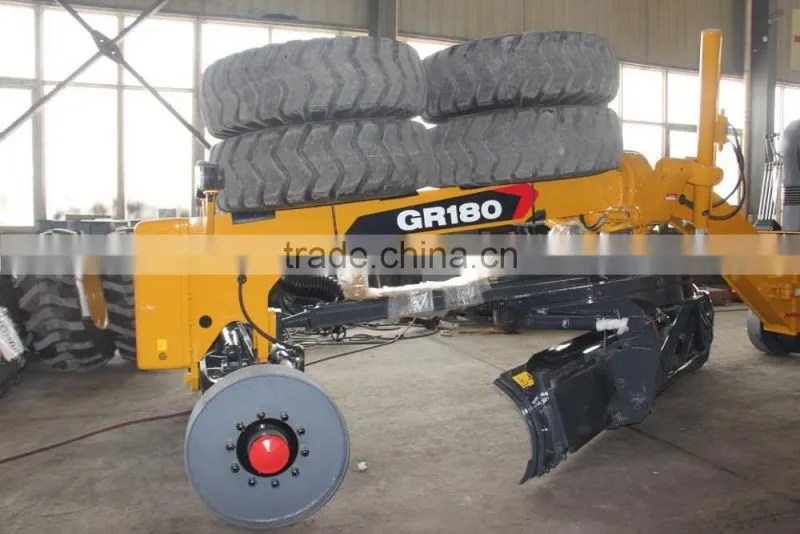

Motor graders Loaded in container:
Detail Description:
Basic specification of GR180 motor grader | |
|---|---|
| Engine model | 6CTAA8.3 D6114 |
| Rated power/speed | 138kW/2200 140kW/2300rpm |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15400kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 79KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Blade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |
Our Company -Silkway
WHAT ARE OUR ADVANTAGES COMPARED WITH ?
1. Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedback from clients, our price is more competitive than manufacturer /factories.
2. Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
Our Sales Service:
01. Being available online 24 hours a day.
02. Responding to your e-mails at the first time.
03. Providing the best choice according to the customer’s needs.
04. Giving reception and organize visit of the factory, meeting, technical communication for the customers.
After-sales Service:
1. Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
2. Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
Any questions, pls feel free to contact us!
