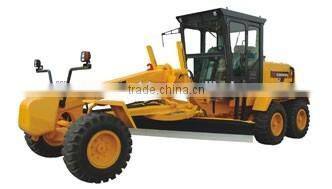

Help CenterLow Price Road Construction Equipment 200hp Motor Grader PY200M for Sale
Related Products
-
Good News!!! Shantui 160hp Motor Grader SG16-3 ON SALEUS$ 40,000 - 58,000MOQ: 1 Unit -
Hot Sale Shantui 180hp Motor Grader SG18-3 With Cheap PriceUS$ 60,000 - 70,000MOQ: 1 Unit
-
Shantui 180hp Motor Grader SG18-3 For SaleUS$ 60,000 - 70,000MOQ: 1 Unit
-
Shantui Small Motor Grader SG14 With Cheap PriceUS$ 45,000 - 55,000MOQ: 1 Unit
-
Famous Brand Shantui Motor Grader SG21-3 With Cheap PriceUS$ 63,000 - 73,000MOQ: 1 Unit
Engine | |
Model |
SC8D200G2B1/ Cummins 6CTA8.3 |
Type |
water cooled, four stroke, turbo-charge engine |
Rated output |
147kw/200ps/160kw/215ps |
Rated revolution |
2300rpm/2200rpm |
Transmission | |
joint- venture ZF transmission(or Hangzhou 6WG180 transmission), with torque converter, full power shift ,and 6 forward speeds and 3 reverse speeds, The max. speed is 39.6km/h. | |
Forward shift (1/2/3/4/5/6) |
5.0/8.6/11.3/19.2/23.8/39.6km/h |
Reverse shift (1/2/3) |
5.0/11.3/23.8km/h |
Axle | |
Rear axle |
three stage driving axle with No-spin differential |
Front axle |
driven axle , oscillating and steering front axle, the oscillating angle 15°at left and right direction, the front leaning angle is 17degree at left and right direction, steering angle is 45 degree. |
Tandem box |
oscillating tandem box, he oscillating angle 15°at up and down direction, heavy duty roller chain. |
Service brake |
full hydraulic drive, disc brakes are assembled on rear wheels. |
Parking brake |
hub brake, mechanically operated on drive shaft of gear box. |
Continuous brake |
the torque converter is designed as a continuous brake. |
Work hydraulic system |
hydraulic system of double pumps and double circuits. |
Frame |
articulated frame. |
Blade (Length*chord) |
3965*650 |
Cycling angle |
360° |
Max. angle of inclination left/right |
90° |
Max. depth in ground |
500mm |
Tire |
standard tires on all 6 wheels:17.5-25,12pr |
Electrical system |
working voltage: 24v, equipped with all kinds of instruments and working light. |
The whole machine data | |
Operating weight |
15400kgs(standard and with optional front dozer and rear ripper) |
Overall dimension (Lx W x H) |
8700*2595*3480mm(standard) 10330*2740*3480(with front dozer and rear ripper) |
Optional (front dozer/rear ripper) | |
Front dozer (width*height) |
2740*920 |
Front dozer to front axle distance |
1550mm |
Front dozer Max. cutting depth in ground |
205mm |
Rear ripper width |
2000mm |
Rear ripper teeth |
5 |
Rear ripper Max. cutting depth in ground |
315mm |
Machine Pictures
