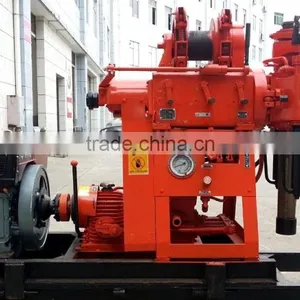

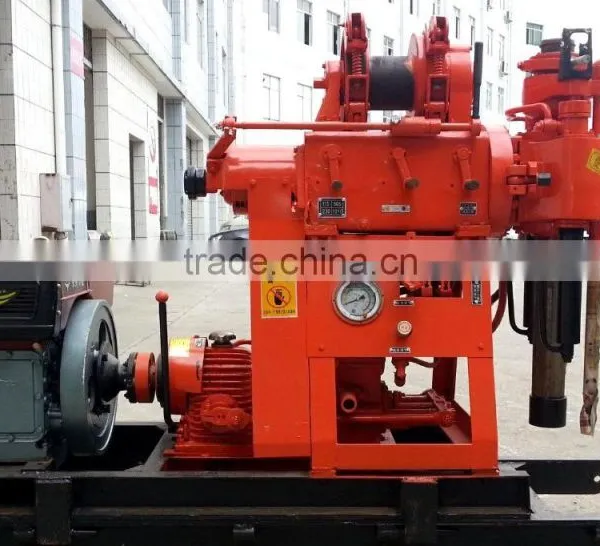

GK400 water well drilling rig for 400 meters deep with high quality

water well drilling rig

GK-400 Drilling Rig is a new type of vertical spindle machine manufactured by Jing Di, for which a diesel engine or motor may be chosen as power. It is primarily used with diamond drill bit or carbide drill bit for the drilling in solid mineral deposit as well as those in engineering geotectonic survey, foundation pile hole and water well hole.

1. Compact mechanical transmission structure, lightweight, vertical spindle for large through hole diameter with hexagonal drive drilling rod, ensured torque transmission.

2. Higher rotating speed and rational scope, adaptable for the drillings with small diameter diamond drill bit or large diameter carbide drill bit and other engineering hole drillings.

3. During the hydraulic controlled feeding process, both the pressure and speed of feeding can be regulated to meet the requirements of different stratum drillings.

4. Less and centralized handles, easy operation.

Technical Specifications

  Drill

Drill rod dia.                                      42/50/60mm

 Drilling depth                                 400/300/200m

 Initial hole dia.                                         300mm

 Final hole dia.                                           75mm

 Angle range                                          70°-90°

Dimensions(L×W×H)        2230×950×1700 (mm)

Weight(without power unit)                         1000kg

 Swivel Head

Spindle speed

 Forward             70/140/160/240/310/440/530/1010 r/min

 Reverse                                            38/66 r/min

 Spindle stroke                                        500mm

 Spindle lifting capacity max                      45 KN

 Spindle pull-down max                              39KN

 Spindle max.torque                             2.5KN.m

 Hoist

Hoisting drum linear velocity            0.5/1.17/1.4/2.1 m/s

 Max .lifting capacity (single rope)              25KN

 Wire rope dia                                         15mm

 Drum dia.                                           200 mm

 Rig traveling device

 Migration distance                                350mm

 Distance from a drilling hole                  300mm

 Oil Pump

 Model                                             YBC-30/80

 Rated displacement                             30L/min

 Rated pressure                                       8Mpa

Power (diesel engine or motor)

 Model (diesel engine)                             CZ485

Rated power                                          26KW

 Rated speed                                    2200r/min

 Model (motor)                                     Y180L-4

 Rated power                                          22KW

Rated speed                                    1  450r/min
