Home > Products > Mining Machinery > Chinese brand new double cabin dump truck 2ton capacity

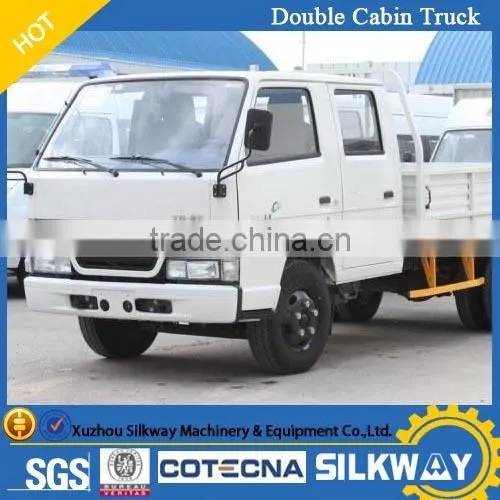

Chinese brand new double cabin dump truck 2ton capacity
- 300 Unit / Units per Month
- Any port around China
- T/T
You May Like
-
Chinese brand new double cabin dump truck 3ton capacity best price
-
Mining dump truck
-
4ton tipper truck with euro III or euro IV engine in cheapest price
-
dump truck 5ton load capacity in cheap price
-
Chinese 2015 brand new dump truck 5ton weight in best quality
-
3ton dump truck tipper truck 6 cyclinders best quality
Product Details
| Condition | New | Capacity (Load) | 1 - 10t | |
| Drive Wheel | 4x2 | Horsepower | 150 - 250hp | |
| Transmission Type | Automatic | Emission Standard | Euro 3 | |
| Fuel Type | Diesel | Engine Capacity | 4 - 6L | |
| Size | 5955*1885*2160 | Gross Vehicle Weight | 2340 | |
| Place of Origin | Jiangsu, China | Brand Name | JMC | |
| Model Number | JX1040TSG24 |
Product Description
Chinese Brand Double Cabin Truck Good Quality & Best Price
TECHNICAL SPECIFICATION | ||||
SER | ITEM | PARAMETER | UNIT | DATA |
1 | WHOLE | MANUFACTURE DATE |
| 2016 |
OVERALL DEMENSION | MM | 5955×1885×2160 | ||
GVW | KG | 5000 | ||
CURB WEIGHT | KG | 2340 | ||
LOADING CAPACITY | KG | 2660 | ||
MAX GRADABILITY WHEN FULL LOADING | DEG | 32° | ||
MAX SPEED | KM/H | 100 | ||
FRONT/REAR HANGING | MM | 1015/1580 | ||
CLOSE/DEPARTURE ANGLE | DEG | 27/17.5 | ||
LEAF SPRING | PCS | 7/5+5 | ||
DRIVE WHEEL |
| 4*2 | ||
2 | CHASSIS | CHASSIS MODEL |
| JX1040TSG24 (JMC) |
MANUFACTURER |
| JMC Motors Co.,Ltd. | ||
MANUFACTURE DATE |
| 2016 | ||
POWER STEERING |
| Equipped | ||
ABS |
| Equipped | ||
WHEELBASE |
| 3360 | ||
REAR AXLE |
| 3T | ||
TYRE SPECIFICATION |
| 7.00R16LT | ||
NO OF TYRES | PCS | 6+1 spare tyre | ||
3 | ENGINE | ENGINE MODEL | JX493ZLQ4 | |
MANUFACTER | JMC Motors Co.,Ltd. | |||
ENGINE HORSEPOWER | HP | 102 | ||
DISPLACEMENT | ML | 2771 | ||
EMISSION STANDARD | Euro IV | |||
4 | GEARBOX | NO OF GEARS | 5 forward gears and 1 reverse | |
RATIO | 6.142 | |||

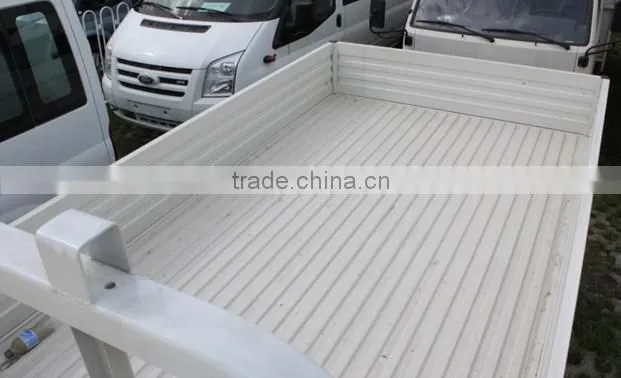

5 | CARGO | BRAND | CLW | |
MANUFACTER | Chengli Special Automobile Co.,Ltd | |||
BODY DIMENSION | 3200×1780×380mm | |||
MATERAIL | Corrugated iron | |||

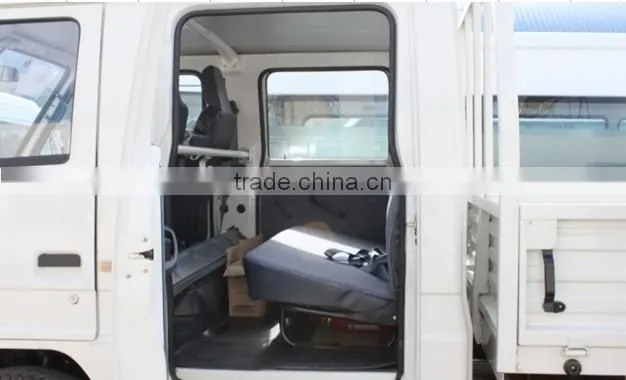

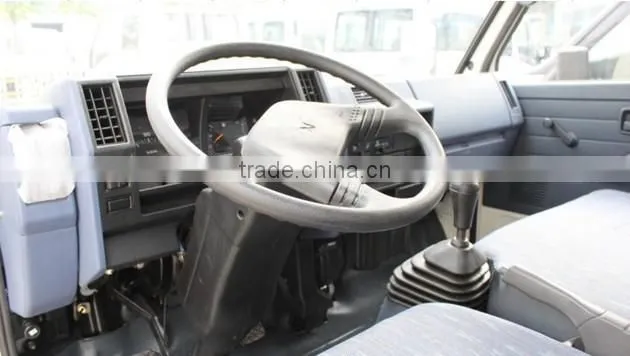

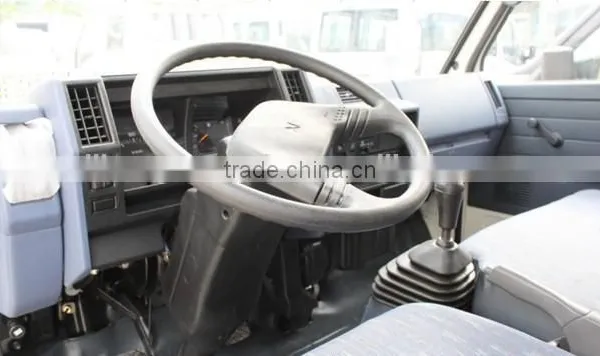

| CABIN | BRAND | JMC Motors Co.,Ltd. | |
SEATS | 3+2 | |||
MODEL | Double cabin | |||

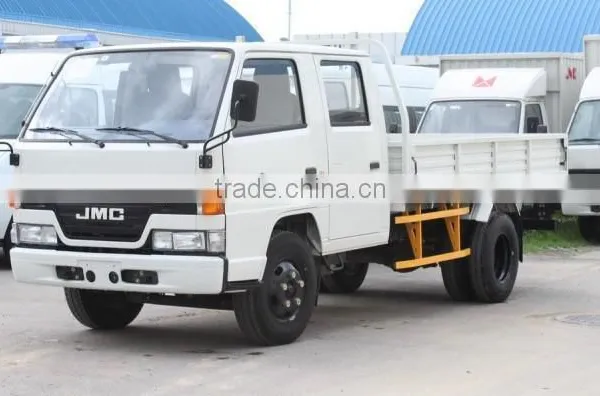

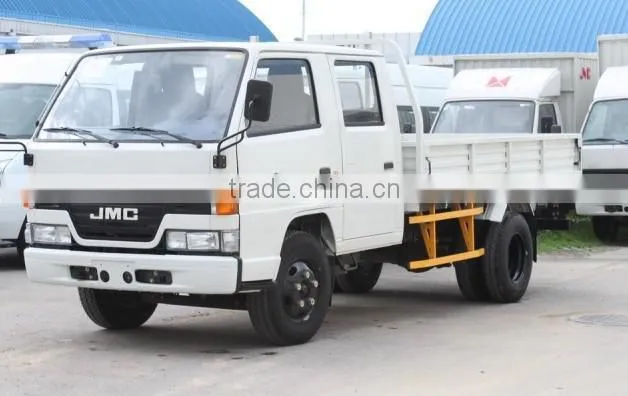

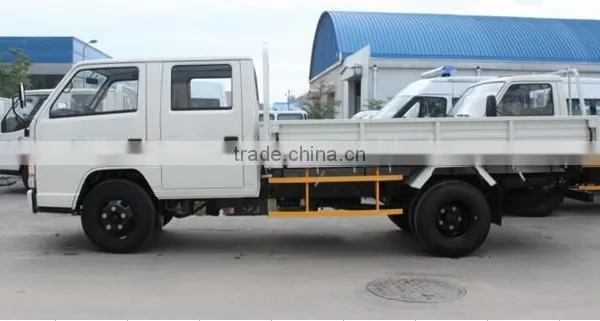

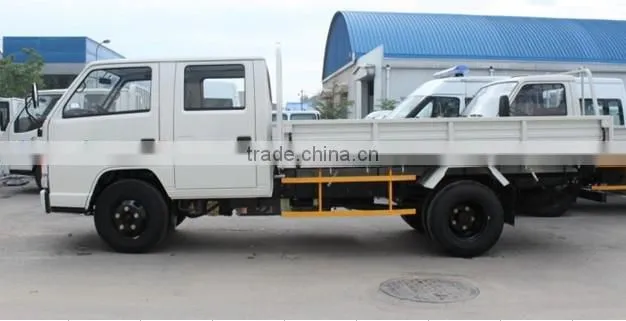

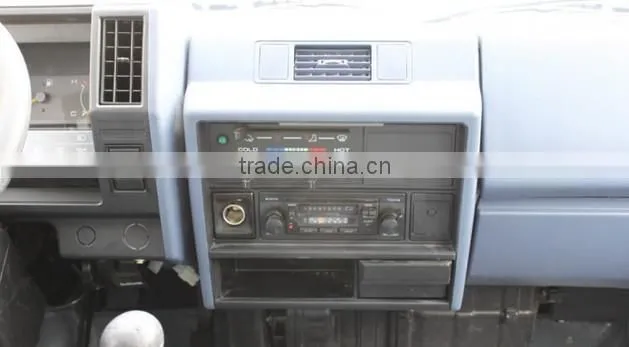

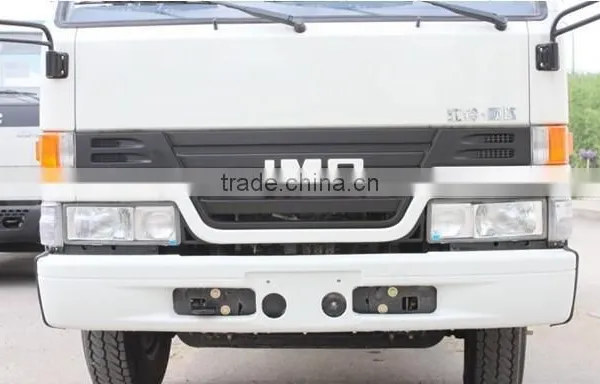

Photos
