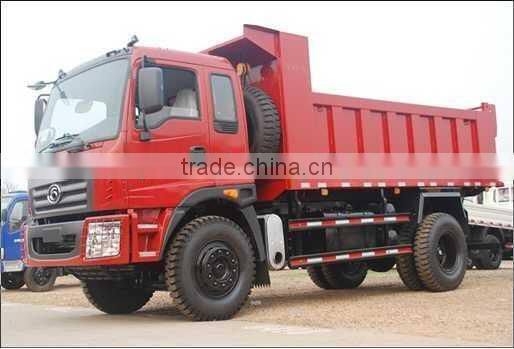

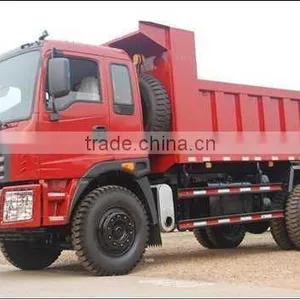

Help CenterFOTON FORLAND 10 Ton Dump Truck
Related Products
-
3 Ton FOTON FORLAND MINI DUMP TRUCK FOR SALEUS$ 10,000 - 12,000MOQ: 1 Set -
FOTON BJ3258DLPJB-14 Heavy Dump TruckNegotiableMOQ: 1 Unit
-
FOTON FORLAND 6 Ton Light Dump Truck For SaleUS$ 30,000 - 80,000MOQ: 1 Set
-
Top Brand FOTON FORLAND 10 Ton Dump TruckUS$ 40,000 - 80,000MOQ: 1 Set
-
FOTON FORLAND 6 Ton BJ3122V4PDB-F1 Light Dump Truck For SaleUS$ 30,000 - 80,000MOQ: 1 Set
| Vehicle model |
BJ3102V4PDB-A3
|
|
| Product positioning: transportation dump, suitable for medium and short distances of sand, stone, coal and construction materials | ||
| Working condition: urban and rural roads, highways and pavement of cement roads | ||
| Engine | ||
| Engine model and emission | 6J190-33 (Euro II) | |
| Engine type | Six-cylinder/four-stroke/water-cooling/vertical/intercooling surcharge | |
| Rated power of engine (kw/rpm) | 140/2500 | |
| Maximum torque (N.m/rpm) | 630/1400-1700 | |
| Engine displacement (L) | 6.494 | |
| Gearbox | ||
| Gearbox type | 10JS90 | |
| Gearbox speed ratio | i1:15.55,i2:10.80,i3:7.68,i4:5.55,i5:4.32,i6:3.6,i7:2.5,i8:1.78;i9:1.29;i10:1.00 | |
| Rear axle | ||
| Rear axle type | Dead axle full float axle | |
| Rear axle load (T) | 11.5T | |
| Rear axle speed ratio | 5.833 | |
| Dumping type/oil cylinder size | Single-top amplification mechanism/ HG-F200X790 | |
| Cabin type/width(mm) | Left side driving, flat head,one and half row/2,200 | |
| Drive form | 4×2 | |
| Tire type/number | 11.00-20/6+1 | |
| Brake | Service brake type | Drum type, air pressure braking |
| Parking brake type | Energy storage spring air chamber parking braking | |
| Steering device | Power steering | |
| Weight parameter | ||
| Curb weight (Kg) | 8200 | |
| Rated load capacity (Kg) | 10000 | |
| Performance parameter | ||
| Maximum speed (no load)(km/h) | 85 | |
| Maximum gradeability (%) | ≥25% | |
| Minimum turning radius (m) | 8 | |
| Minimum ground clearance (mm) | 320 | |
| Maximum lift degree (°) | ≥45° | |
| Dimension parameters | ||
| Overall dimensions (LxWxH)mm | 7280×2420×3250 | |
| Internal cargo body dimensions (LxWxH)mm | 4700×2300×1000 | |
| Cargo bodycapacity (m³) | 10.81 | |
| Wheelbase (mm) | 4200 | |
| Front/rear wheel track (mm) | 1968/1864 | |
| Front/rear suspension (mm) | 1400/1860 | |
| Rated voltage (V) | 24 | |
| Capacity of the fuel tank (L) | 330 | |
| Standard configuration | Heater, electronically controlled flameout, spare tire, adjustable steering wheel and auxiliary braking | |
| Selective configuration | Air conditioning | |
