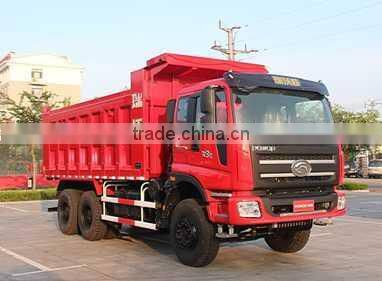

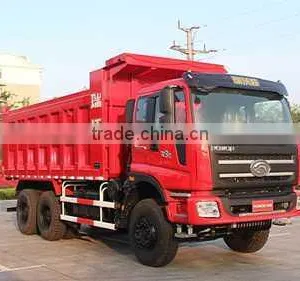

Help CenterFOTON BJ3258DLPJB-14 Heavy Dump Truck
Related Products
-
FOTON FORLAND 6 Ton Light Dump Truck For SaleUS$ 30,000 - 80,000MOQ: 1 Set -
Top Brand FOTON FORLAND 10 Ton Dump TruckUS$ 40,000 - 80,000MOQ: 1 Set
-
FOTON FORLAND 6 Ton BJ3122V4PDB-F1 Light Dump Truck For SaleUS$ 30,000 - 80,000MOQ: 1 Set
-
HOT SALE RHD 3 Ton FOTON FORLAND SMALL DUMP TRUCKUS$ 9,000 - 120,000MOQ: 1 Unit
-
RHD 3 Ton FOTON FORLAND SMALL DUMP TRUCKUS$ 10,900 - 11,400MOQ: 1 Unit
The full-steel frame structure which is stamped at a time is with elegant appearance. The application of high-strength steel plate makes it rugged, durable, which effectively improves the strength and stiffness of the cab to enhance passive safety.
With great first gear ratio, strong gradeability and small high-end speed ratio, the gearbox can meet users’ demand of “high speed when no load and climbing when full load”. It’s equipped with synchronous transmission, whose gear shifting is portable and smooth.
Mallery single-top amplification mechanism has great lifting force. The lifting is smooth with stable and reliable performance.
| Vehicle model |
|
|
| Product positioning: transportation dump, suitable for medium and short distances of sand, stone, coal and construction materials | ||
| working condition: urban and rural roads, highways and pavement of cement roads | ||
| Engine | ||
| Engin model and emission | WP10.340E32(Euro II) | |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged intercooler | |
| Rated power of engine (kw/rpm) | 250/2200 | |
| Maximum torque (N.m/rpm) | 1350/1200-1600 | |
| Engine displacement (L) | 9.726 | |
| Gearbox | ||
| Gearbox type | 10JSD160 | |
| Gearbox speed ratio | i1=14.86,i2=11.02,i3=8.07,i4=6.02,i5=4.46, i6=3.33,i7=2.47, i8=1.81, i9=1.35, i10=1.00 | |
| Rear axle | ||
| Rear axle type | Dead axle full float axle | |
| Rear axle load (T) | 16T | |
| Rear axle speed ratio | 5.92 | |
| Dumping type/oil cylinder size | Single-top amplification mechanism / HG-F220×920 | |
| Cabin type/width | Left side driving, flat head,one and half row/2400 | |
| Drive form | 6×4 | |
| Tire type/number | 12.00R20/10+1 | |
| Brake | Service brake type | Drum type, air pressure double loop braking |
| Parking brake type | Energy storage spring rear wheel braking | |
| Steering device | Power steering | |
| Weight parameter | ||
| Curb weight (Kg) | 15830 | |
| Rated load capacity (Kg) | 35000 | |
| Performance parameter | ||
| Maximum speed (no load)(km/h) | 75 | |
| Maximum gradeability (%) | ≥25% | |
| Minimum turning radius (m) | 10.3 | |
| Minimum ground Clearance (mm) | 350 | |
| Maximum lift degree (°) | 46° | |
| Dimension parameters | ||
| Overall dimensions (LxWxH)mm | 8481×2550×3450 | |
| Internal cargo body dimensions (LxWxH)mm | 5600×2300×1500 | |
| Cargo body capacity (m³) | 19 | |
| Wheelbase (mm) | 3700+1350 | |
| Front/rear wheel track (mm) | 2044/1880 | |
| Front/rear suspension (mm) | 1528/1903 | |
| Rated voltage (V) | 24 | |
| Capacity of the fuel tank (L) | 300 | |
| Standard configuration | Electronically controlled flameout, spare tire, adjustable steering wheel, auxiliary brake,heater | |
| Selective configuration | Air-conditioner | |
