China brand high quality pipelayer PMG40 for sale
USD $180,000 - $220,000
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- China port
- T/T
You May Like
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | pipeman |
Model Number: | PMG40 | Rated Loading Capacity(kg): | 38.25T | Hoisting Speed: | 20S |
Max Lifting Height: | 6400 | Dimension(L*W*H): | 4748*4625*8297mm | Loder Weight: | 45T |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description
Model | PMG40 |
Max lifting capacity | 45t |
Rated lifting capacity | 38.25t |
Operating weight(approximate) | 35t |
Overall dimensions (with boom) | 4748×4625×8297mm |
Overall dimensions(boom removed) | 4750×3350×3270mm |
Ground pressure | 85.2kPa |
Ground clearance | 490mm |
Maximum grade ability | 25° |
Environmental Condition | Operating temperature:-40℃~+60℃,3600m below |
Engine | |
Model | Cummins NT855-C280 |
Rated power | 169kw |
Rated speed | 2000rpm |
Number of cylinders | 6 |
Travel system | |
operating mode | handle lever |
Travel speed[Forward] | 3.8/6.8/13.8 |
Travel speed[Reverse] | 4.9/8.5/14.3 |
Length of track on ground | 3050mm |
Track gauge | 2250mm |
Width of shoes | 660mm |
Number of track rollers(each side) | 7 |
PIPELAYING EQUIPMENT | |
Boom luffing mode | wirerope |
operating mode | hydraulic joystick |
Length of boom | 7500 |
Max lifting height | 6400 |
Boom luffing Angle | 0~86 ° |
Hook speed | 0~6.2m/min |
Hook line | 8 |
Luffing time | 20s |
Boom line | 5 |
Counterweight | 1884kg×2(removable) |
Operation | hydraulic cylinder activated |

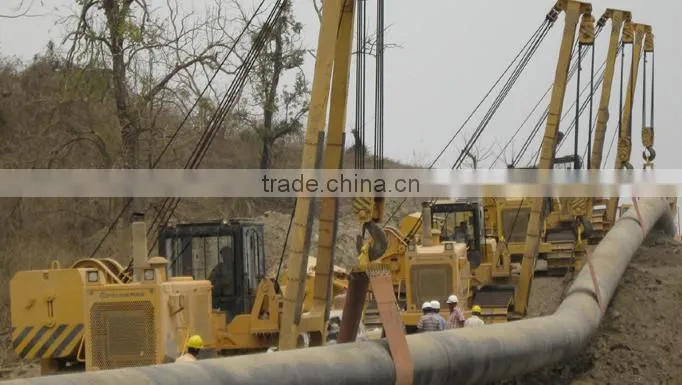

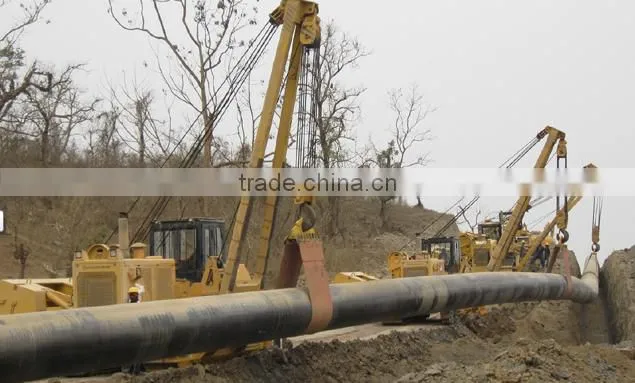

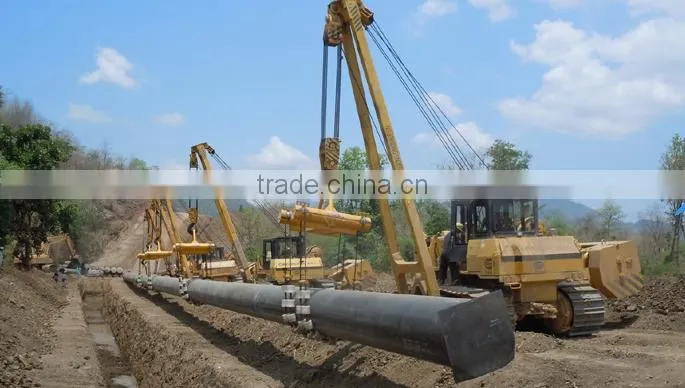

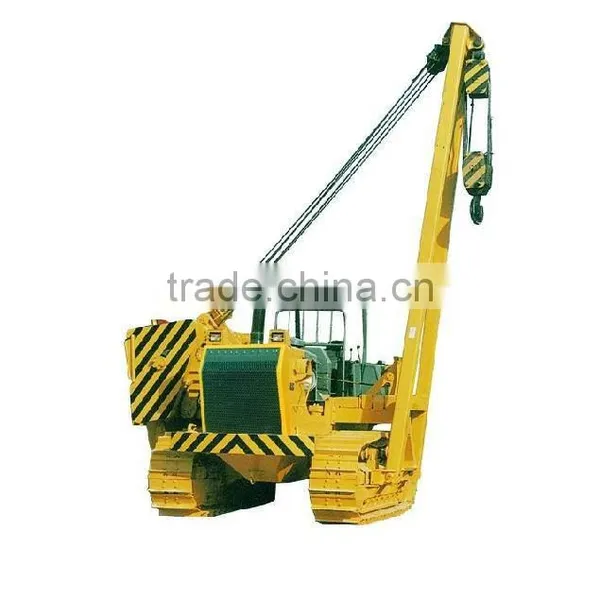

Pipelayer picture
