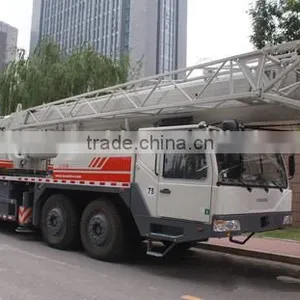

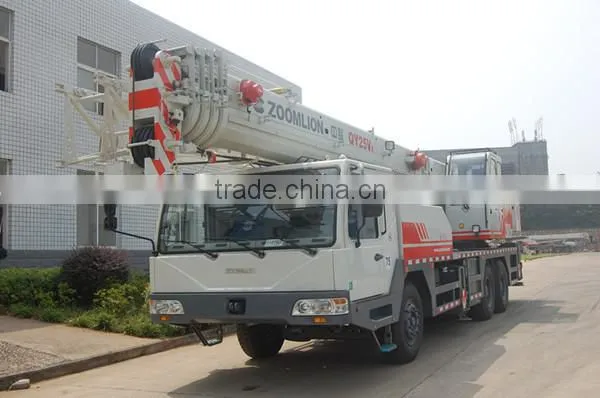

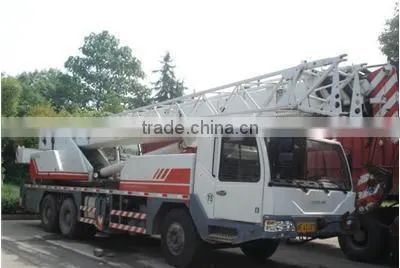

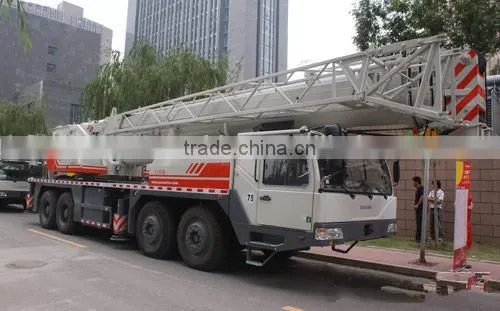

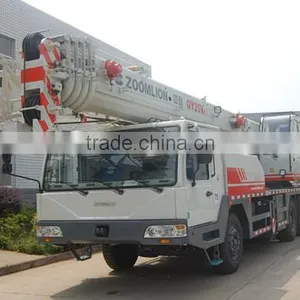

ZOOMLION 25ton Truck Crane

Name: ZOOMLION 25ton Truck Crane
Brand: ZOOMLION
SKU: 140803172

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-25t

Rated Loading Capacity:

25t

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-25t

Rated Loading Capacity 25t

Rated Lifting Moment 980kN.m

Max. Lifting Load 25t

Max. Lifting Height 39m

Span 5.14/6.0m

Place of Origin Hunan, China

Brand Name ZOOMLION

Model Number QY25V

Certification SGS/CIQ

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Company Information

Product Description

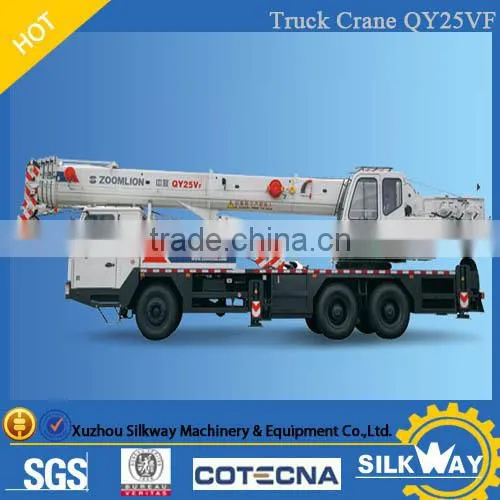

Zoomlion 25t Truck Crane QY25V

Type	Ser. No.	Item	Unit	Value
Working performance	1	Max. rated lifting weight × working radius	kg.m	25000×3.0
	2	Max. lifting torque of basic boom	kN.m	980
	3	Max.lifting torque of longest main boom	kN.m	494
	4	Max. lifting height of longest main boom	m	39
	5	Max. lifting height of jib	m	47
Dimensions	6	Outline dimensions (L×W×H)	mm	12700×2500×3450
	7	Distance between outriggers (longitudinal × transversal)	mm	5360×6100
	8	Main boom length (completely retracted – completely extended)	m	10.4~39.2
	9	Jib length	m	8
	10	Main boom angle of elevation	°	-2~80
	11	Swing range		360°continuously
Working speed	12	Max.speed of single rope on the drum of main winch	m/min	120
	13	Boom extension time	s	80
	14	Boom derricking up time	s	40
	15	Swing speed	r/min	0~2.2
Mass	16	Complete vehicle kerb mass	kg	31570
	17	Front axle load	kg	6900
	18	Rear axle load	kg	24800
Traveling	19	Max. traveling speed	km/h	78
	20	Max. gradeability	%	37
	21	Min. turn radius	m	11
	22	Min. ground clearance	mm	220
