construction machinery rough terrain crane 35 ton lifting capacity
- 300 Unit / Units per Month
- Any port arround the world
- T/T
- China QY25K-II truck crane for construction 25 ton lifting crane for truck fast delivery in stock truck crane
- Factory Price of the 100 Ton Used Crane Truck Sany Stc1000 Second Hand Truck Mobile Crane
- 2019 Excellent condition for the used Mobile Truck Cranes 25T/50T/70T/90T/100T
- Used 50 ton China original X-CM-G QY50KA mobile truck crane, used crane QY50K-II truck 55 ton crane for sale
- China XCMG 50 tons hydraulic mobile 50t truck crane XCT50_M QY50KA QY55KC for sale
- Used Truck Crane used STC250S Mobile Crane with Good Performance used track crane
Product Details
Condition: | New | Application: | Rough Terrain | Rated Loading Capacity: | 35 Ton |
Rated Lifting Moment: | 870kN.m | Max. Lifting Load: | 35 Ton | Max. Lifting Height: | 46m |
Span: | 6.9m | Place of Origin: | Hunan, China | Brand Name: | ZOOMLION |
Model Number: | RT35 | Certification: | ISO | Warranty: | 1 Year |
After-sales Service Provided: | Overseas service center available |
Product Description

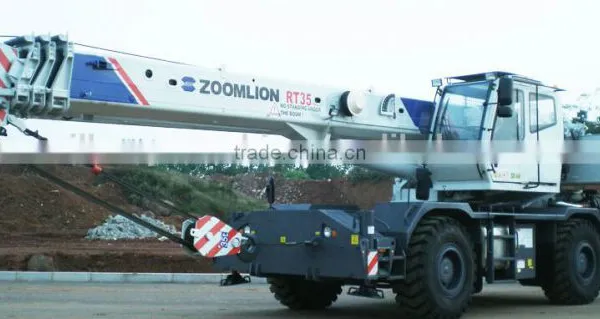

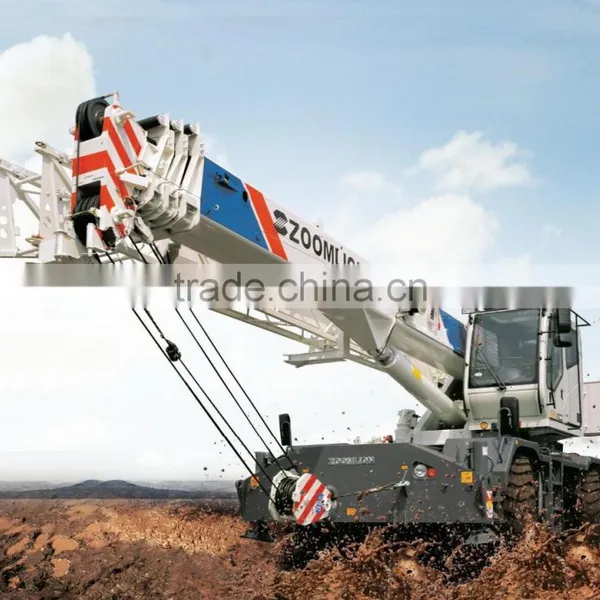

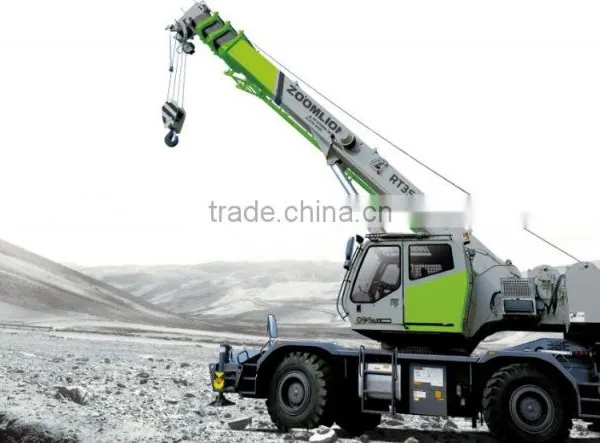

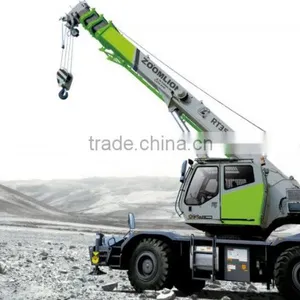

ZOOMLION Most Popular Rough Terrian Crane RT35
1. Maneuverable and robust drive
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites
2. Excellent off-road capability
• Big ground clearance and departure / approach angle offer excellent off-road capability.
3. Strong gradeability
• Cummins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle’ s drive performance to its maximum, suitable for any bad roads and job sites.
4. Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out ”On tires“ Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.
5. Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver’ s or operator’ s fatigue, thus improves the working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and high efficiency of the operation.
Type | Ser. No. | Item | Unit | Value |
---|---|---|---|---|
Working performance | 1 | Max. rated lifting weight × working radius | kg.m | 35000×3.0 |
2 | Max. lifting moment of basic boom | kN.m | 1344 | |
3 | Max.lifting moment of longest boom | kN.m | 870 | |
4 | Max. lifting height of longest boom | m | 31 | |
5 | Max. lifting height of jib | m | 46 | |
Dimensions | 6 | Outline dimensions (L×W×H) | mm | 11935×2980×3600 |
7 | Distance between outriggers (Longitudinal × transversal) | mm | 6810×6800 | |
8 | Main boom length (completely retracted – completely extended) | mm | 9800~31000 | |
9 | Jib length (completely retracted – completely extended) | mm | 9088~15028 | |
10 | Main boom angle of elevation | ° | -3~78 | |
11 | Swing range |
| 360°continuously | |
Working speed | 12 | Max.speed of single rope on the drum of main winch | m/min | 150 |
13 | Boom extension time | s | 70 | |
14 | Boom retraction time | s | 75 | |
15 | Boom derricking up time | s | 46 | |
16 | Boom derricking down time | s | 47 | |
17 | Swing speed | r/min | 0~2.5 | |
Hydraulic system | 18 | Rated working pressure | MPa | 27 |
19 | Rated working flow | L/min | 400 | |
20 | Hydraulic oil tank capacity | L | 600 | |
Mass | 21 | Complete vehicle kerb mass | kg | 32000 |
22 | Front axle load | kg | 15030 | |
23 | Rear axle load | kg | 16970 | |
Traveling | 24 | Max. traveling speed (forwards / backwards) | km/h | 38/15 |
25 | Wheelbase | mm | 3820 | |
26 | Treads (front / rear) | mm | 2444 | |
27 | Max. gradeability | % | 57 | |
28 | Min. turning radius (outer edge of the vehicle body) | m | 6.5 | |
| 29 | Min. turning radius (2 wheels) | m | 11.25 |
