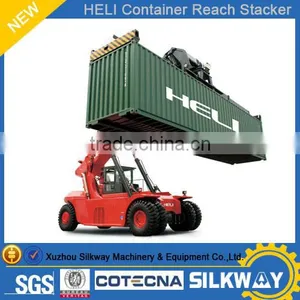

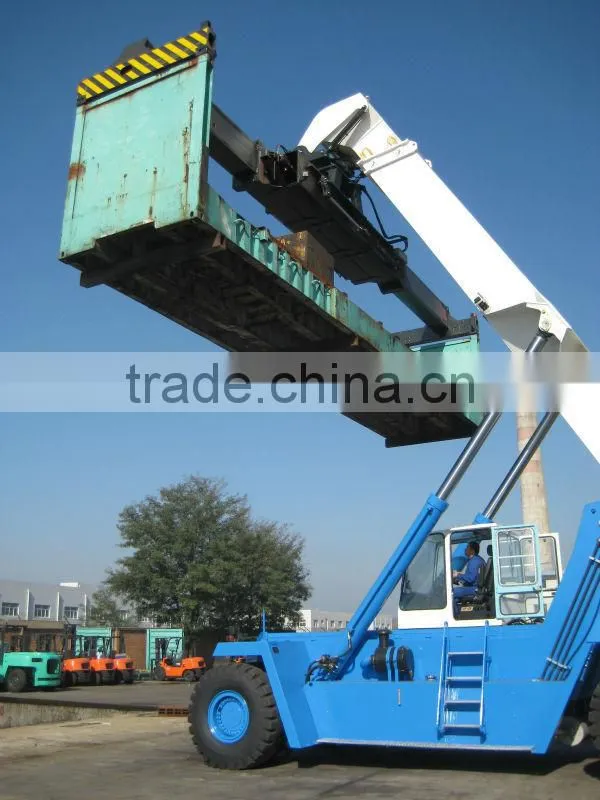

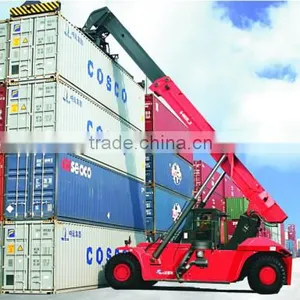

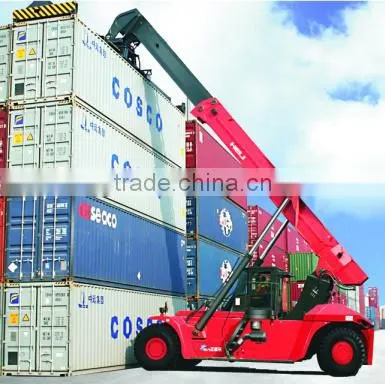

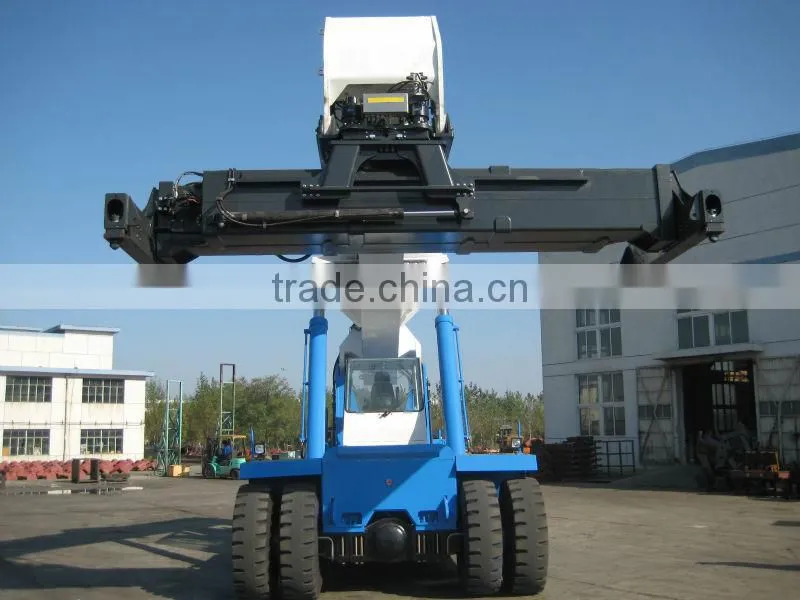

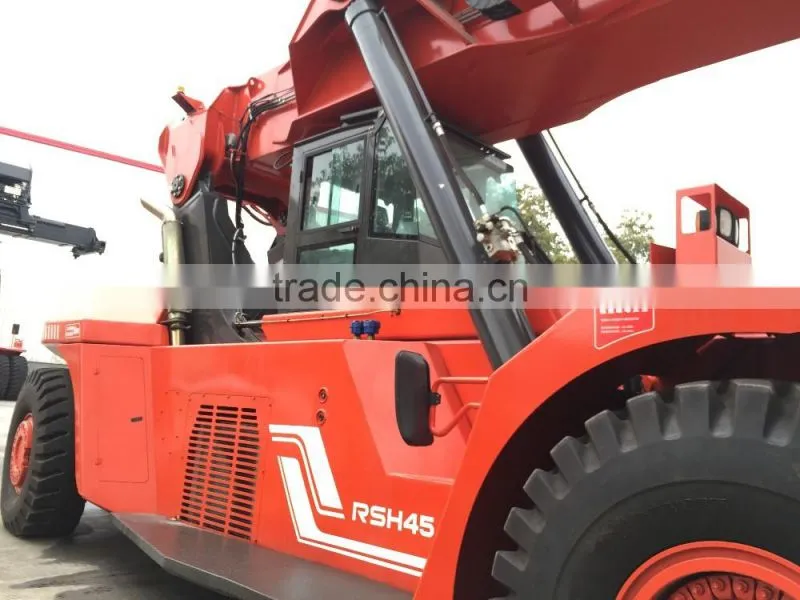

Container Reach Stacker RSH4532
1.Rated capacity 45T
2.loading for container
3.best quality and lowest price
THE SPECIFICATION OF 45 ton container Reach Stacker
The vehicles are designed by professional design company which is famous in Europe, and the vehicles conform to the requirements of EN1459, DIN15018 and ISO WD 22915-12.
By considering both the static stability and dynamic stability, the vehicle’s stability and safety is great. After the Singapore and Venezuela user acceptance our products, called our products’ stability is higher than the others.
The speed of lifting and running is fast, and the efficiency is great.
The latest VOLOV diesel (TAD952VE) engine which has advanced Engine Management System with CAN-BUS and conforms to the requirements of EU stage III is adopted. The turn off delay function can extend the engine’s service life.
Intake system with cyclone-type air filter and main filter based two filtration function, can ensure the precision components of the engine works properly. All the engine accessories including air filter and muffler adopt the Donaldson’s product (U.S.).
The latest TE27 electro-hydraulic control automatic gearbox of DANA company (U.S.) is adopted. Controlling with the CAN-BUS and adopts proportional valve technology, can reduce the impact when shifting and reversing , and improve the quality and reliability.
Automobile electric system design principle is adopted for the truck which better satisfies the special and harsh usage environment requirements for the construction machinery for road use. And also the principle facilitates the later
maintenance for better popularity of the automobile electric accessories and lower purchasing cost. The controlling system (WIZ) of 3B6 company (Italy) is adopted, which is also adopted by some famous international company.
The engine and gearbox optimized for power matching, and both are controlled by CAN-BUS. And the hydraulic energy-saving technology including load-sensing, flow regeneration, variable systems, double pump confluence, pipeline optimization, is adopted, as the result, the fuel consumption and use cost is low.

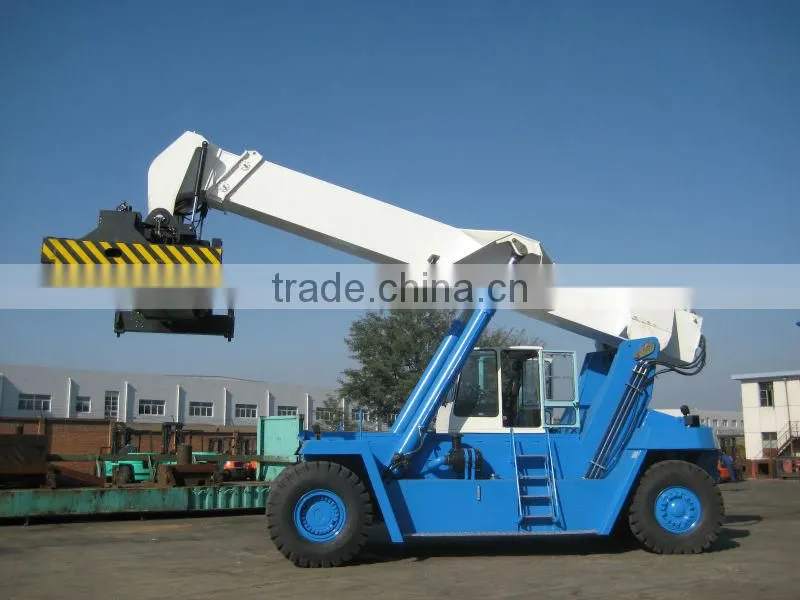

When the spreader extend about 40 feet, the vision is well and no blind area exist.
Model |
unit |
RSH4528-Vo |
RSH4532-Vo |
RSH4536-Vo |
Load Capacity(first row/second row/third row) |
kg |
45000/28000/14000 |
45000/32000/16000 |
45000/28000/19000 |
Load Center(first row/second row/third row) |
mm |
1800/3850/6400 |
1800/3850/6400 |
1800/3850/6400 |
Overall Lowed Height |
mm |
4754 |
4754 |
4754 |
Overall Raised Height |
mm |
15050 |
15050 |
15050 |
H Overall length |
mm |
11670 |
11670 |
11670 |
Q Overall width |
mm |
4060 |
4060 |
4060 |
Lifting Speeds(With load/Without Load) |
mm/s |
280/420 |
280/420 |
280/420 |
Max. Driving Speeds(With load/Without Load) |
km/h |
24/28 |
24/28 |
24/28 |
Please Contact Our Salesmanager :
