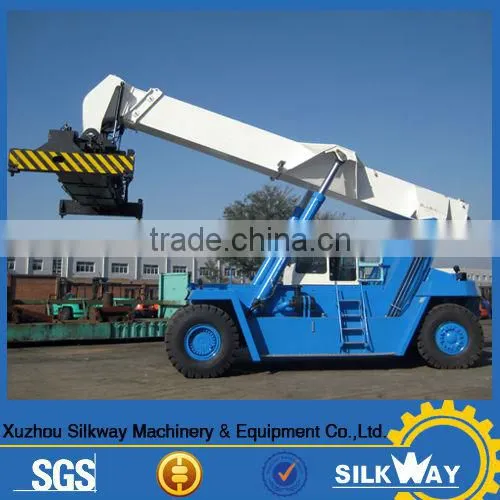

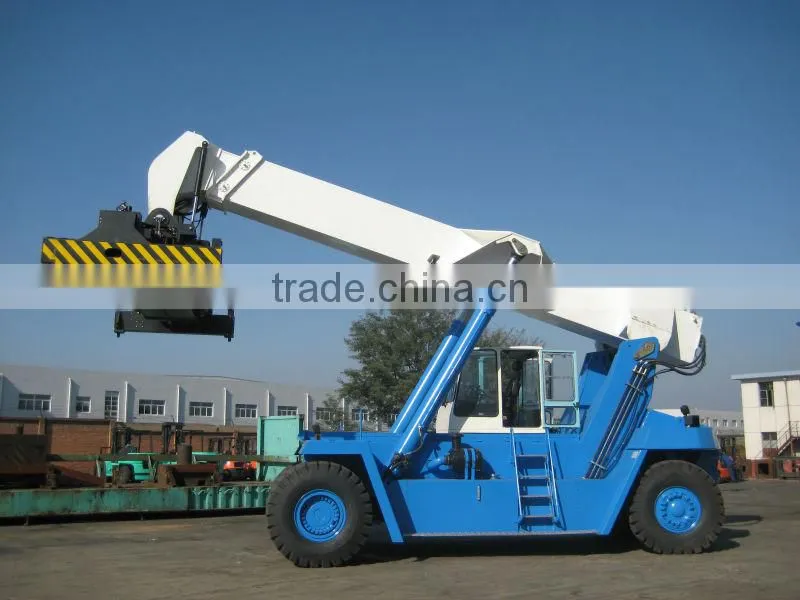

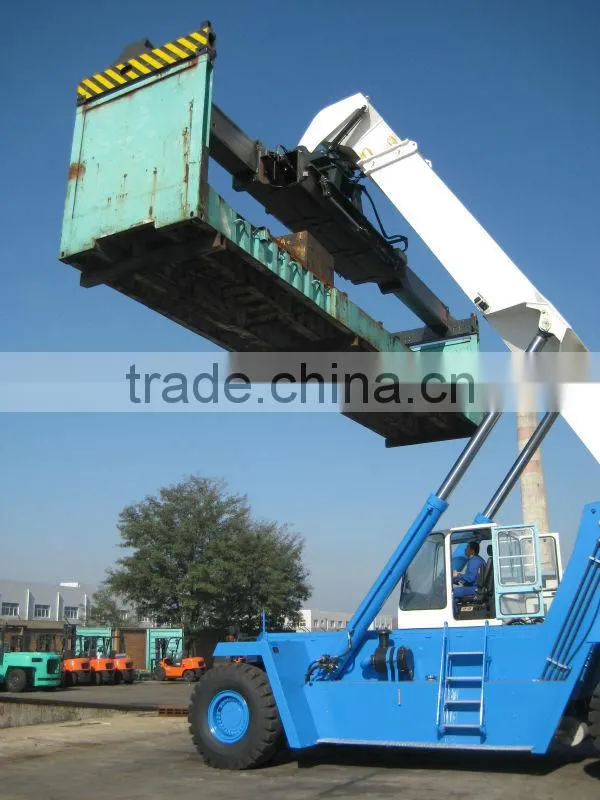

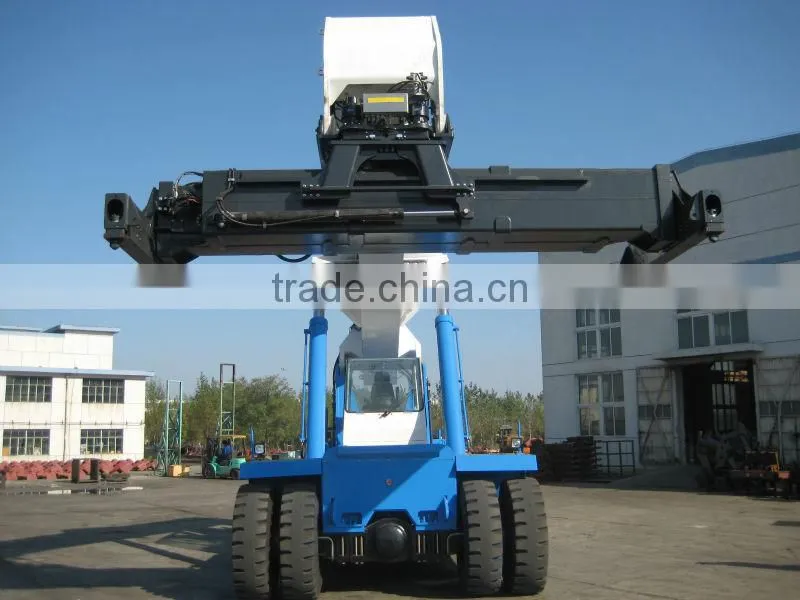

2016 Hot Sale Container Reach Stacker China Supplier

Name: 2016 Hot Sale Container Reach Stacker China Supplier
Brand: QINGONG
SKU: 140803092
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

QINGONG

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name QINGONG

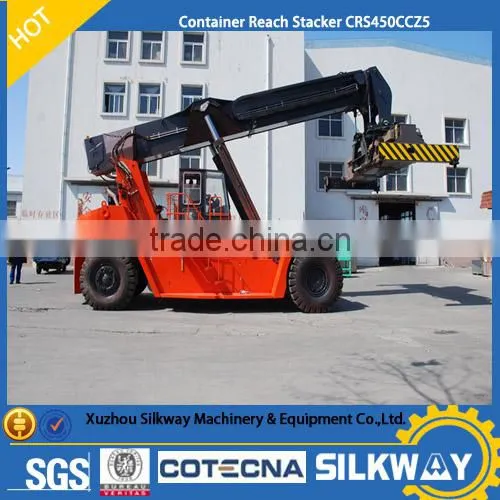

Model Number CRS450CCZ5

After-sales Service Provided No overseas service provided

THE SPECIFICATION OF 45 ton container Reach Stacker

ITEM				unit	data
Rated capacity	Rront distance	1900mm	5floor	kg	40,000
		1900mm	4floor		45,000
		3850mm	4floor		31,000
		6350mm	3floor		15,000
Max. lift height				mm	15,100
Min. ground clearance				mm	400
Min. turning radius				mm	8,200
Lifting speed ( unload/loaded )				mm/s	430/231
Lowering speed ( unload/loaded )				mm/s	300/250
Travelling speed ( unload )		f/r	1-speed	km/h	3.5/3.5
			2-speed		8.5/8.5
			3-speed		15/15
			4-speed		2525
Max.gradiend ( unload/loaded )				%	30/15
Brake distance		unload 20km/h		m	≤7
		load 20km/h		m	≤3.5
Boom		max angle		deg	60
		max. spread		mm	6800
SERVICE WEIGHT				kg	73000
Tyre	model	front	pneumatic	18.00-25-40pr
		rear	pneumatic	18.00-25-40pr
	air pressure	front		mpa	0.9
		rear		mpa	0.9
Engine	type				qsm11t3 c335
	manufacturer				cummins usa
	displacement			cc	10800
	rated output			kw/rpm	250/2100
	max. torque			nw/rpm	1674/1400
	cylinder diameter			mm	120
	stroke distance			mm	147
Trans-mission box		type			14.7hr36432
		manufacturer			dana
		shift type			apc72 auto shift
		gear shift			f 4/ r 4
		speed ratio(f/r)		1 class	5.814/5.814
				2 class	2.422/2.422
				3 class	1.379/1.379
				4 class	0.784/0.784

Spreader	model	manufacturer		max. capacity
	817	elme		45000kgs
	rotation	service weight		suitability
	95 /- 185	8800kgs		20ft-40ft loaded container
	shift distance
	800mm(l/r)
Steering axle		type		inner turning angle ( each side )
		transward cylinder		70
		steering cylinder ( cyl. dia.x core diax stroke)
		180x110x551mm
Hydraulic system		pump	sweden (parker) pavc100b38r2a22
		pump	sweden (parker) pavc100b38r29a4a+gp2and30as
		valve	initial valve	(parker)x104920 sweden
			main steering valve	(parker)m400ls-012
			balance valve set	(parker)91217414
		steering device		(parker)hgb32128
		others	the other kd parts are from sweden parker
