Help CenterPengpu Construction Equipment 7T Crawler Excavator Machine SW70E
Related Products
Main features:
70E hydraulic excavator is our newly developed excavator based on our many years' experience in developing and manufacturing field as well as our close attention on market demands, which features high efficiency, high performance/price ratio, nice appearance and environmental protection. It is compactly structured and easy in maintenance. All maintenance work can be done easily on field. The new cab is more comfortable and offers a better visibility.
Main parts of our hydraulic excavator are of high quality
1. Japanese YANMAR 4TNV98 engine features stronger power, lower noise, which can meet the requirements of more stringent emission standard.
2. The hydraulic components are mostly imported from high quality suppliers abroad, thus our hydraulic excavator can achieve optimized control performance.
3. Fabrication parts are from the sub contractors supplying parts to world-class company.
Technical parameters
| Model | 70E | |
| Specification | Operating weight of total machine | 6500Kg |
| Bucket capacity | 0.26m3 | |
| Width of track shoes | 400mm | |
| Performance | Ground pressure | 35Kpa |
| Swing speed | 9.9r/min | |
| Traveling speed (high/low) | 4.3/2.3Km/h | |
| Gradeability | 35° | |
| Bucket digging force | 44KN | |
| Digging force of bucket rod | 31KN | |
| Engine | Model | 4TNV98-SYU YANMAR |
| Type | Four stroke, Water-cooled, Direct injection | |
| Rated power | 47.1kW/2200rpm | |
| Hydraulic system | Type of hydraulic pump | Variable displacement piston pump×2; Fixed displacement gear pump ×1 |
| Method of power adjustment | Constant power adjustment | |
| Main safety valve adjusted power | 24.5Mpa | |
| Travel axial piston motor | 2×Variable flow axial piston motor | |
| Swing motor | 1×Variable flow axial piston motor | |
| Working range (mm) | Max. working radius | 6230 |
| Max. digging depth | 3930 | |
| Max. digging height | 6120 | |
| Max. dump height | 4250 | |
| Min. swing radius | 2310 | |
| Overall dimensions (mm) | Length of track on ground | 2140 |
| Length of track | 2725 | |
| Ground clearance of counter weight | 720 | |
| Tail swing radius | 1750 | |
| Total length | 6000 | |
| Total height | 2660 | |
| Min. ground clearance | 340 | |
| Track gauge | 1750 | |
| Total width | 2150 | |
| Width of track shoes | 400 | |
| Height of track shoes | 610 | |
| Total height (Cab) | 2660 | |
| Top width | 2000 |

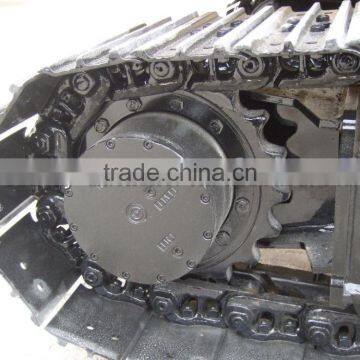

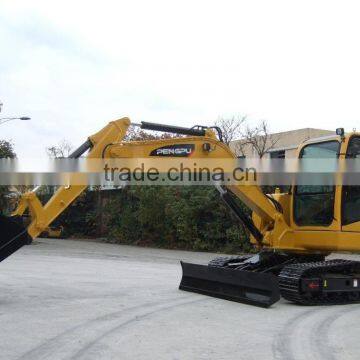

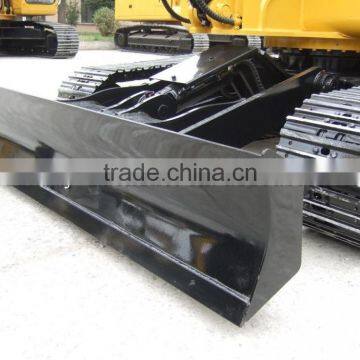

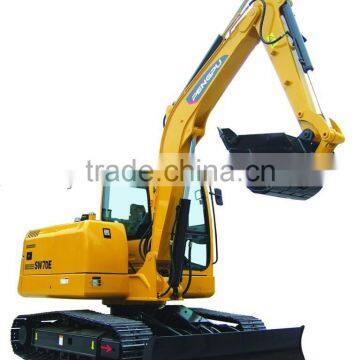

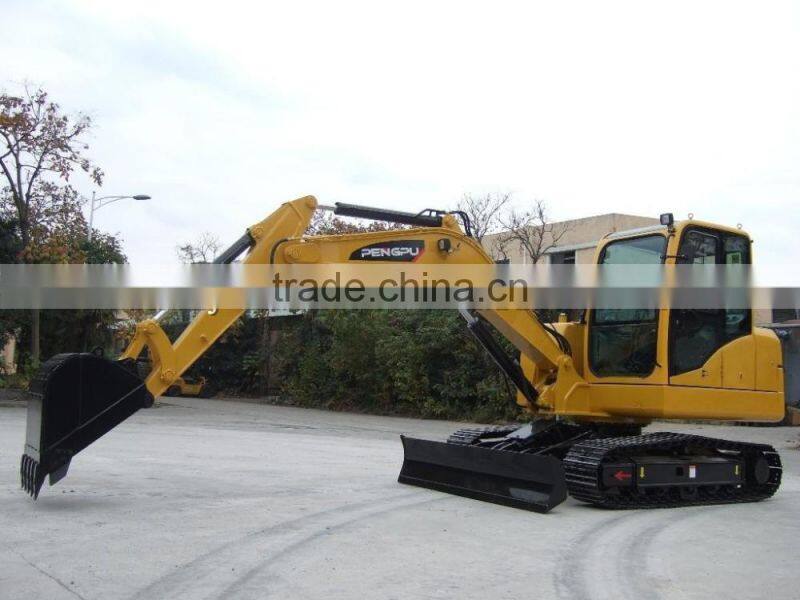

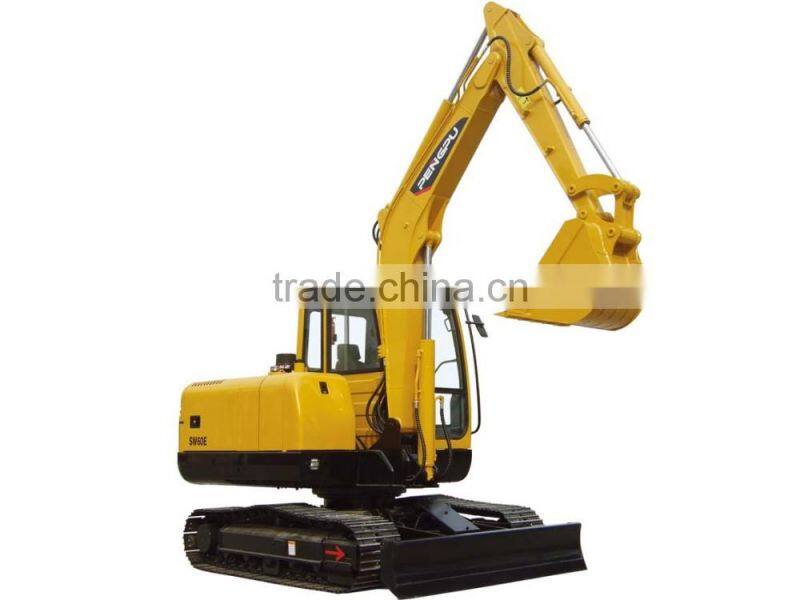

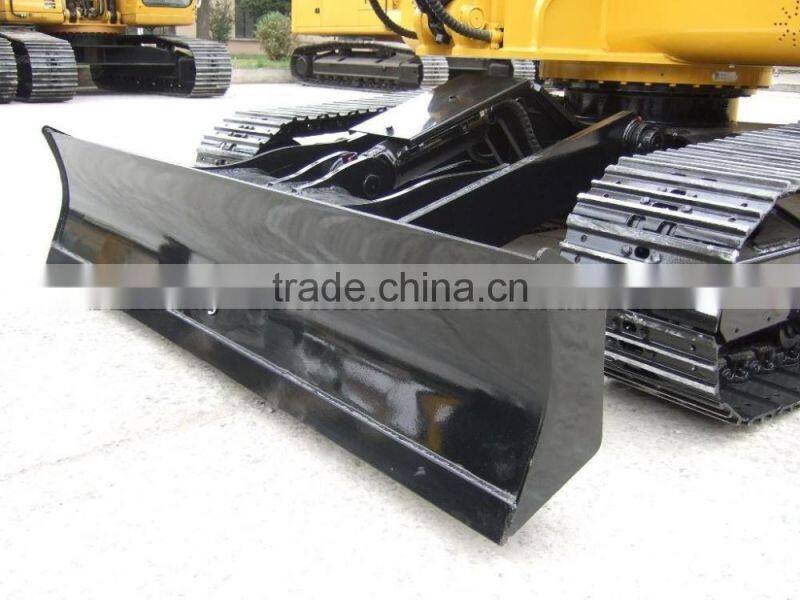

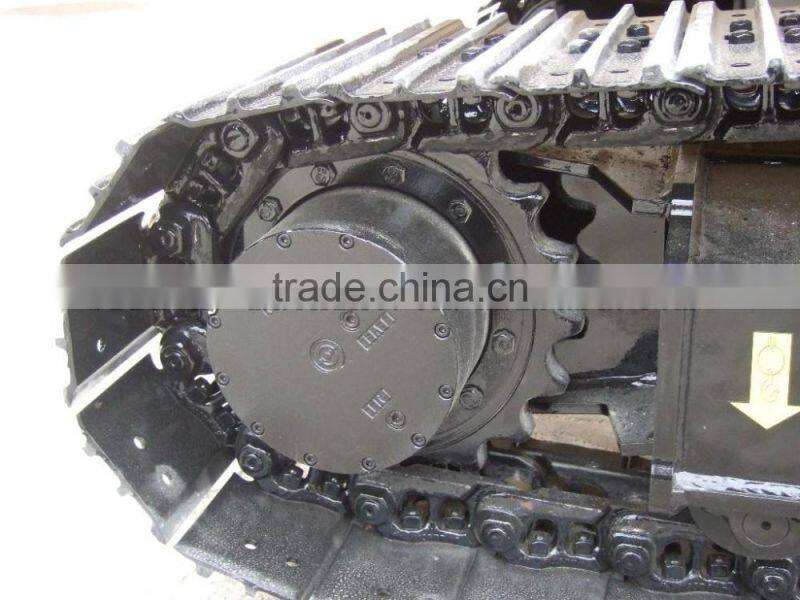

Machine Picture
