3tons Mini Crawler Crane With CE

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Application:

load for working & traveling

Rated Loading Capacity:

3ton

Max. Lifting Load:

3ton

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Application load for working & traveling

Rated Loading Capacity 3ton

Max. Lifting Load 3ton

Max. Lifting Height 10m

Brand Name KB

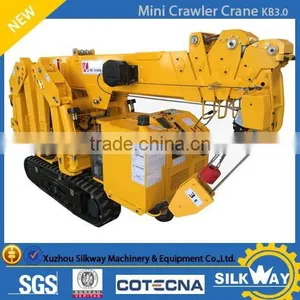

Model Number KB3.0

Certification CE ,ISO9001,CE ISO

Warranty 1 year or 2000 hours

After-sales Service Provided Engineers available to service machinery overseas

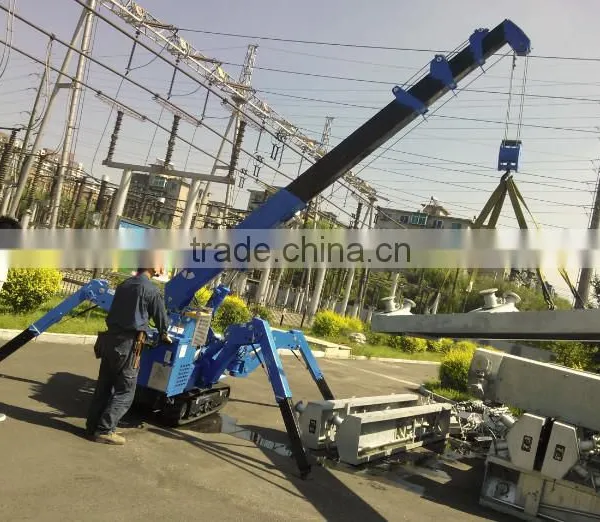

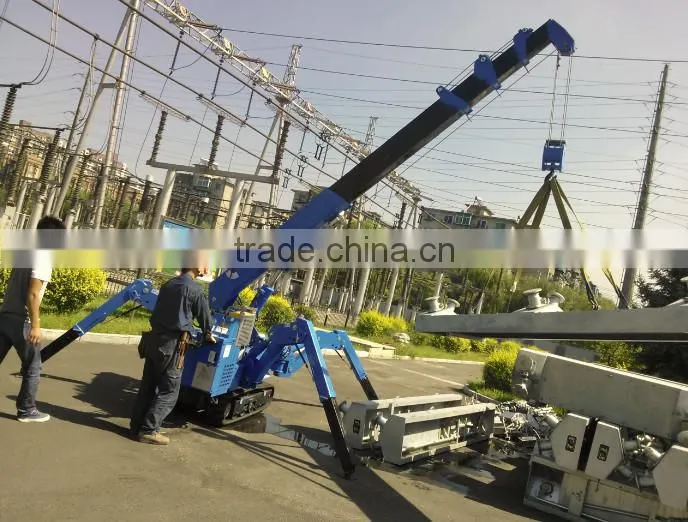

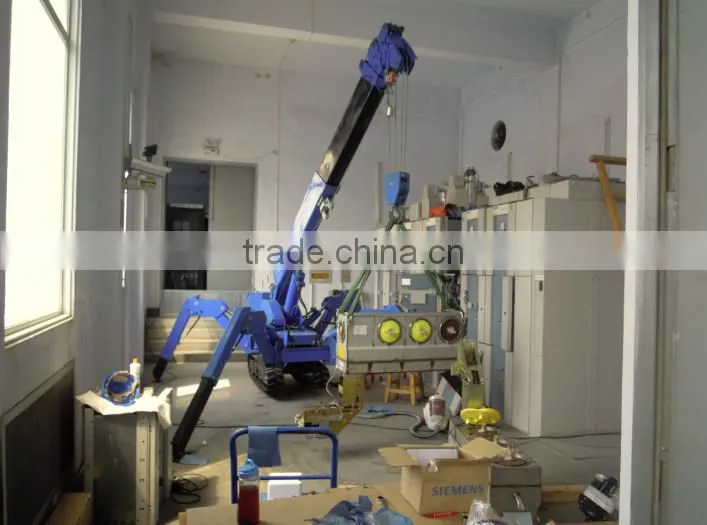

3tons mini crawler crane with CE

Product Description

Capacity	Maximum	3.0Tx1.3m	Diesel Engine Model	Model	KM186FS

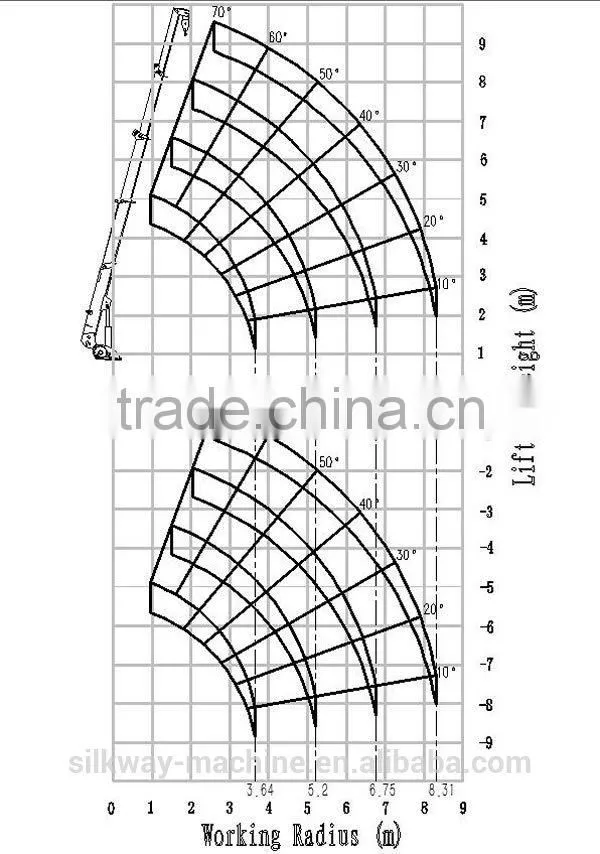

Working Radius	Maximum	8.3m		Displacement	406ml
Lifting Height	Maximum	9.2m		Maximum Output	6.3KW
Dimensions	KB3.0	2850mmx800mmx1500mm		Starting method	Recoil start/Electric starting
Weight	KB3.0	2050Kg		Type	Four stroke,single cylinder,forced air cooling,direct injection
Hook Speed	Maximum	0-6.5m/min(4 Times)		Fuel Tank Capacity	5.5L
Hoist Rope	Type	Φ8mm×45m		Operating Temperature	0°C~40°C
Telescopic System	Boom length	8.92 m		Battery Capacity	12V 36Ah
	Telescopic speed	6.04m / 22 sec
	Boom Type	Full automatic 5 section
Boom Hoist System	Hoist angle / speed	0°-75°/14 sec	Petrol Engine Model	Model	GX390
Slew System	Slew angle/speed	360°continuous/1.0rpm		Displacement	389.2ml
Outrigger System	Type	Automatic for the 1 section,manual adjustment for 2,3 section.		Maximum Output	6.6KW

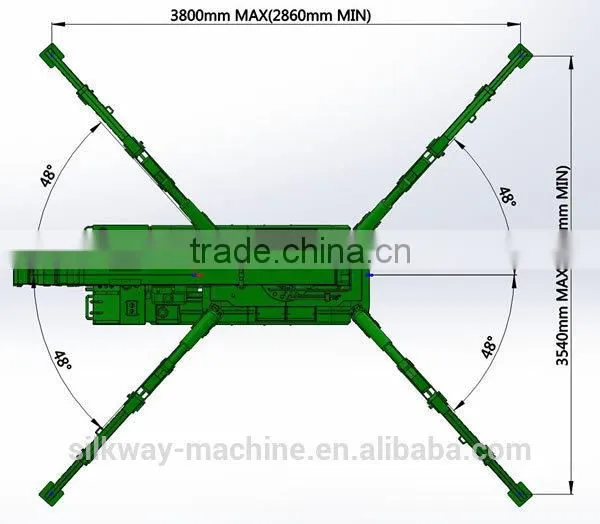

Outrigger System	Maximum extended dimensions	3800mm×3540mm		Starting method	Recoil start/Electric starting
Traction System	Drive	Hydraulic motor driven,stepless speed changer		Type	Four stroke,single cylinder,forced air cooling
	Travel speed	0-2Km/h		Fuel Tank Capacity	6L
	Ground length×width	1010mm×200mm		Operating Temperature	0°C~40°C
	Grade ability	20°		Battery Capacity	12V 36Ah
	Ground pressure	51Kpa	Electric Motor	Three-phase AC asynchronous motor	4KW(240V,50HZ)
Hydraulic fuel tank capacity	Maximum	50L	Remote Control	Wireless (optional)	BOX1.1
Safety Devices	Air level,Moment limiter(Height limiter),Alarm Device,Emergency Stop Button
