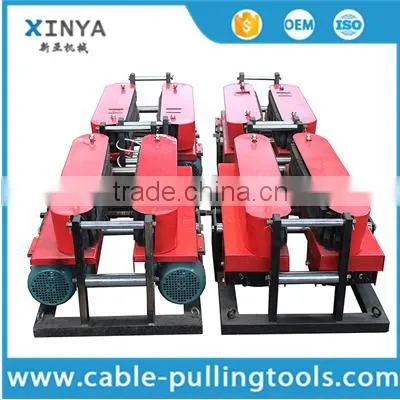

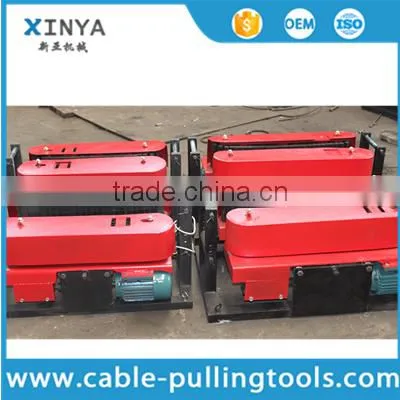

Manufacture cable roller , Wire cable laying machine
Application
Manufacture cable roller , Wire cable laying machine we manufactured, is the ideal machine of cable transmission used in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
Please tell us the following information in your enquiry:
1. Electric motor ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
4. Cable diameter ?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
