DSJ Cable Laying Equipment With Double Electric Engine For Underground Cable Pulling
- 100 Set / Sets per Month
- Shanghai
- T/T
- 4'' Double L Track Sliding Winch, WLL 5,500lbs
- High Quality Heavy Duty Winch Bar for Flatbed Trailer
- Introduction to Marine Electric Hoisting Winches
- Marine pneumatic winch(Good performance, high pulling force)
- Auto parts Nylon winch for Jeep wrangler JK 2007+ 12500lbs bumper winch for Jeep accessories
- Electric Lifting Winch Marine Hydraulic Winches on Dredging Machine Electric Winch for Sale
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | OEM | Model Number: | DSJ |
Power Source: | Electric | Application: | Other, cable laying, power construction | Capacity: | 1KN |
Product Description

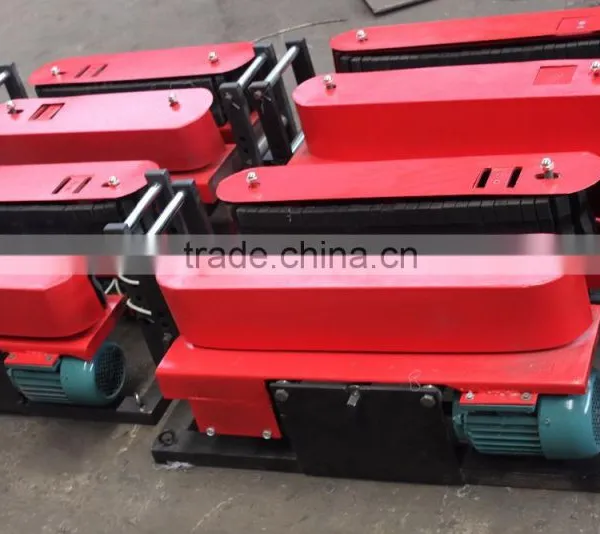

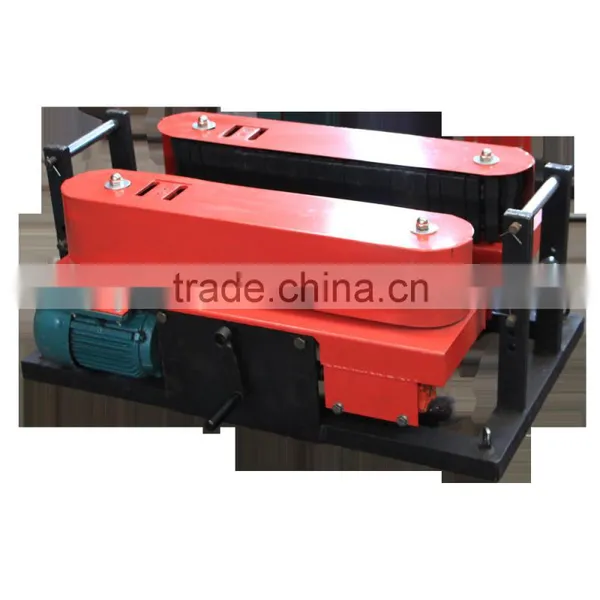

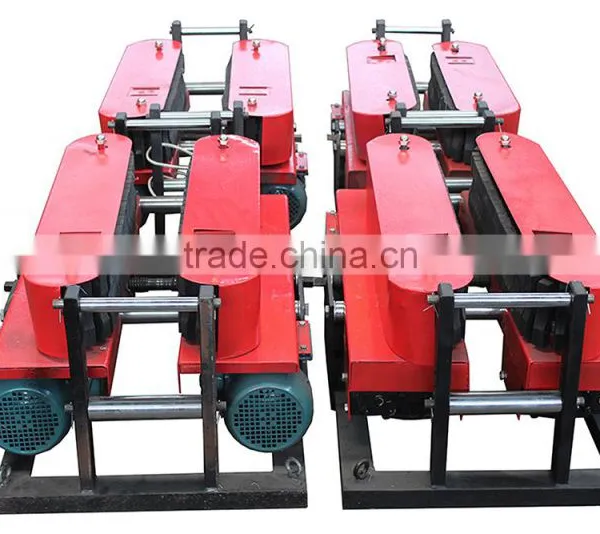

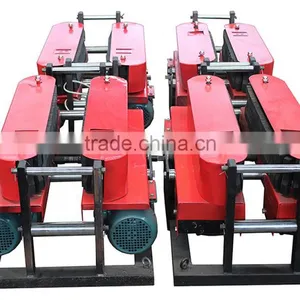

DSJ Cable Laying Equipment With Double Electric Engine For Underground Cable Pulling
Application
DSJ Steel Cable Laying Equipment we manufactured, is the ideal machine of cable transmission used in power,
petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Features
Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,
reduce labor intensity, improve work efficiency and ensure the safety.
Technical Data
Model Type | DSJ-150 | DSJ-180 |
Line pulling(KGS) | 700 | 900 |
Pulling Speed(m/min) | 8 | 6 |
Electric motor | 1.1KW *2 | 1.5KW * 2 |
Oversize dimension | 950*500*400 | 1020*590*400 |
Weight(KGS) | 150 | 180-200 |
Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
Transimission | I=45 | I=60 |
Rubber sheet thickness | 25mm | 25mm |
Please tell us the following information in your enquiry:
1. Electric motor ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
4. Cable diameter ?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
