Stringing Euqipment LBN Aluminum Alloy Gin Pole For Tower Erection
Use and Characteristics:
During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.
Adopt single-arm style, free from direction restriction, use convenience.
The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.
Information

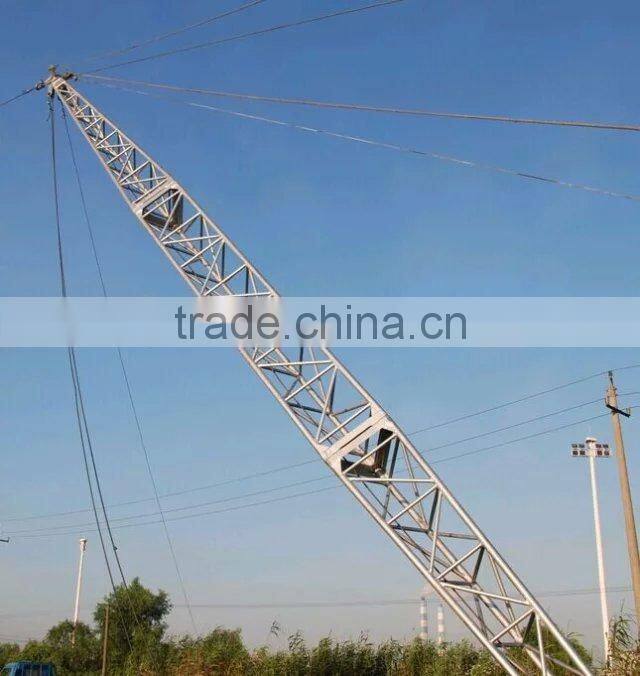

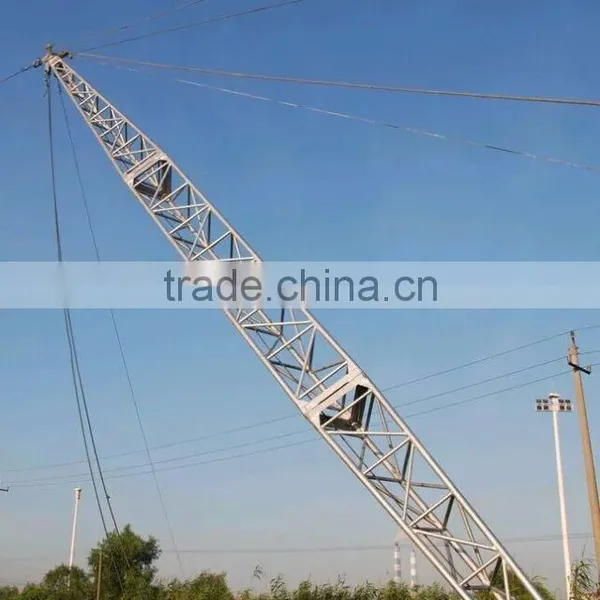

The derricks have been specifically designed for installation of towers, poles and vertical structures and they are manufactured in tubular welded light aluminum alloy reticular structures. They are available in sections of different lengths to be connected to reach the required total length. The derricks have swivel head and swivel base and they are pre-set for external rope passage.
Technical Data
| Product NO. | Type NO. | Cross section(mm) | carrying capacity(KN) | weight(kg) |
| 80508 | LBN-10 | 250*250 |
20 |
70 |
| 80509 | LBN-11 | 250*250 |
19 |
75 |
| 80510 | LBN-12 | 250*250 |
16 |
80 |
| 80511 | LBN-13 | 250*250 |
13 |
85 |
| 80512 | LBN-11 | 300*300 |
29 |
110 |
| 80513 | LBN-12 | 300*300 | 24 | 115 |
| 80514 | LBN-13 | 300*300 | 22 | 120 |
| 80515 | LBN-14 | 300*300 | 18 | 125 |
| 80516 | LBN-15 | 300*300 | 16 | 130 |
| 80517 | LBN-11 | 350*350 | 40 | 120 |
| 80518 | LBN-12 | 350*350 | 33 | 125 |
| 80519 | LBN-13 | 350*350 | 30 | 130 |
| 80520 | LBN-14 | 350*350 | 24 | 135 |
| 80521 | LBN-15 | 350*350 | 21 | 140 |
| 80522 | LBN-12 | 400*400 | 43 | 155 |
| 80523 | LBN-13 | 400*400 | 38 | 160 |
| 80524 | LBN-14 | 400*400 | 32 | 165 |
| 80525 | LBN-15 | 400*400 | 28 | 170 |
| 80256 | LBN-16 | 400*400 | 25 | 180 |
| 80527 | LBN-17 | 400*400 | 22 | 185 |
| 80528 | LBN-18 | 400*400 | 19 | 190 |
| 80529 | LBN-19 | 400*400 | 16 | 195 |
| 80530 | LBN-20 | 400*400 | 14 | 200 |
Tower Erection Vedio
Please check the website below
/watch?v=oGyWT0Fn3_Q
