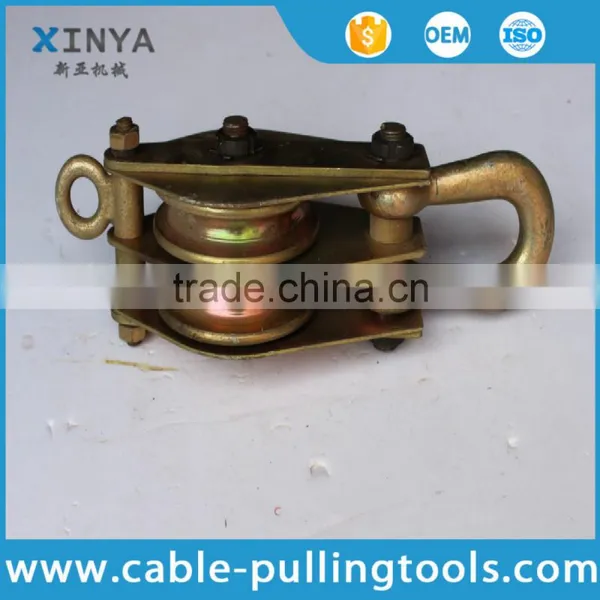

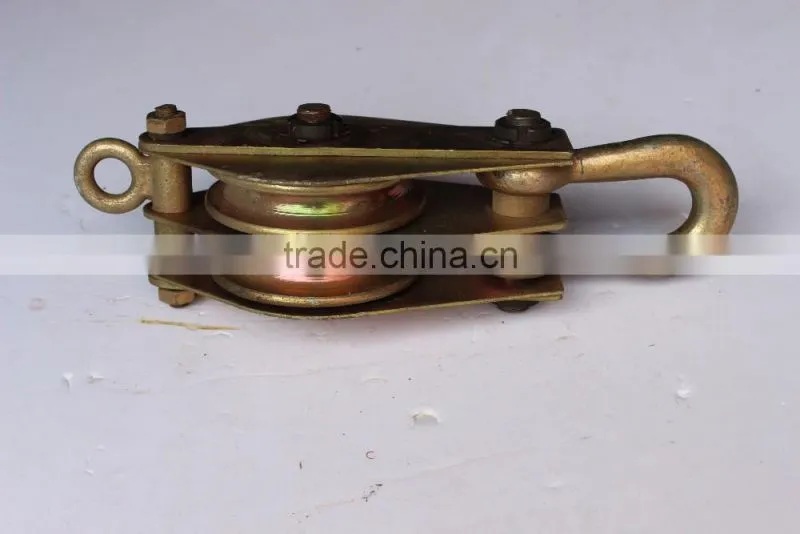

1T Double Sheave Rope Pulley Block,Snatch Block

Name: 1T Double Sheave Rope Pulley Block,Snatch Block
Brand: XINYA
SKU: 140801484
Availability: InStock

Changshu Xinya Machinery Manufacturing Co., Ltd.

US$ 15 - 100 MOQ: 5 Pieces

Key Specifications

Type:

Other

Material:

Other, Other, steel

Place of Origin:

Jiangsu, China

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Type Other

Material Other, Other, steel

Place of Origin Jiangsu, China

Brand Name XINYA

Model Number SHC

1T Double Sheave Rope Pulley Block,Snatch Block

Application

1T Double Sheave Rope Pulley Block,Snatch Block is for lifting.It can be used in single, also can be used as a block.

Characteristics

1.Material: Aluminum alloy

2.Single wheel opening hook type.Two or three sheaves are closed.

3.It is light weight using the aluminum alloy.

Technical Data

Product No.	Model Type	Rated Load(KN)	Sheave	Applicable Steel cable diameter(mm)	Weight(kg)
80399	LZH5-1K	5	1	5.7	1.2
80400	LZH10-1K	10	1	7.7	1.5
80401	LZH10-2	10	2	5.7	1.75
80402	LZH10-3	10	3	5.7	2
80403	LZH15-2	15	2	7.7	2
80404	LZH15-3	15	3	12.5	2.75
80405	LZH20-1K	20	1	11	2
80406	LZH20-2	20	2	7.7	2.5
80407	LZH20-3	20	3	7.7	2.75
80408	LZH30-1K	30	1	12.5	3.5
80409	LZH30-2	30	2	11	4
80410	LZH30-3	30	3	7.7	4.2
80411	LZH50-1K	50	1	15.5	4
80412	LZH50-2	50	2	12.5	4.5
80413	LZH50-3	50	3	11	4.75
80414	LZH80-1K	80	1	18.5	6
80415	LZH80-2	80	2	15.5	6.5
80416	LZH80-3	80	3	15.5	6.75
