Home > Electrical & Electronics > Cable Parts > Cable Clips > OPGW Wire Pulling Grips Self Gripping Clamps Cable Clipper

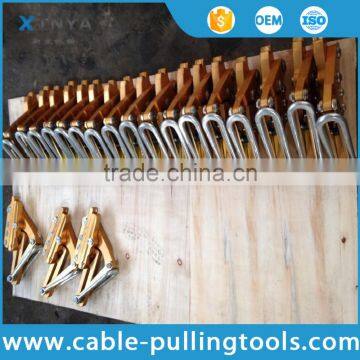

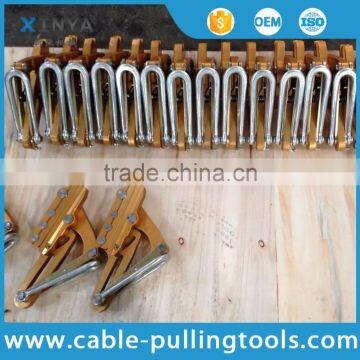

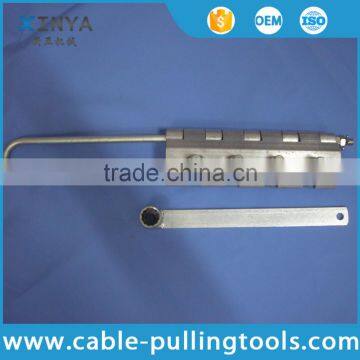

OPGW Wire Pulling Grips Self Gripping Clamps Cable Clipper
US$ 15 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
SKG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bolt Type Cable Clipper Come Along Clamp Grips Wire Grip for OPGWUS$ 50 - 100MOQ: 10 Pieces -
Optical Cable Come Along Clamp of Bolt Type Wiire GripNegotiableMOQ: 10 Pieces
-
Bolt Type Wire Grip Clamp For OPGW 11-15mmUS$ 100 - 120MOQ: 10 Pieces
-
Bolted Type Optical Cable Grip Come Along Clamp For OPGWUS$ 50 - 100MOQ: 10 Pieces
-
High Strength Aluminum Alloy Wire Grip For Large Cross Overhead Line ConstructionUS$ 20 - 70MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SKG
Type
Other, Wire Rope Clip, wire rope grip
Material
Other, Other, steel
OPGW Wire Pulling Grips Self Gripping Clamps Cable Clipper
Characteristic
They are for holding the OPGW overhead optical ground wire, cable diameter is the same as grip size,
in order to ensure clamping firmly, reduce the pressure of clamped parts cable is clamped part
and protect the inside fiber of cable not to be damaged.
The body is forging of high strength aluminum alloy, using the bolt not to slip line and hurt the line.
Need to specify when ordering diameter and fiber cable models.
Technical Data
| Product No. | Model Type | Cable Diameter | Rated Load(KN) | Weight(KG) |
| 80131 | SKG-2.5 | Φ8-20 | 25 | 3.8 |
| 80132 | SKG-4.5 | Φ20(max) | 45 | 4.6 |
| 80133 | SDK-30 | Φ8-22 | 30 | 3 |

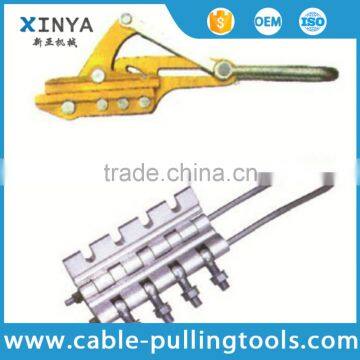

Different Types
