Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | SKG-2.5/SDK-4.5/SDK-30 | Usage | Other, come along clamp | |
| Material | Other, Aluminum-titanium Alloy | Structure | Other | |
| Standard or Nonstandard | Standard |
Product Description

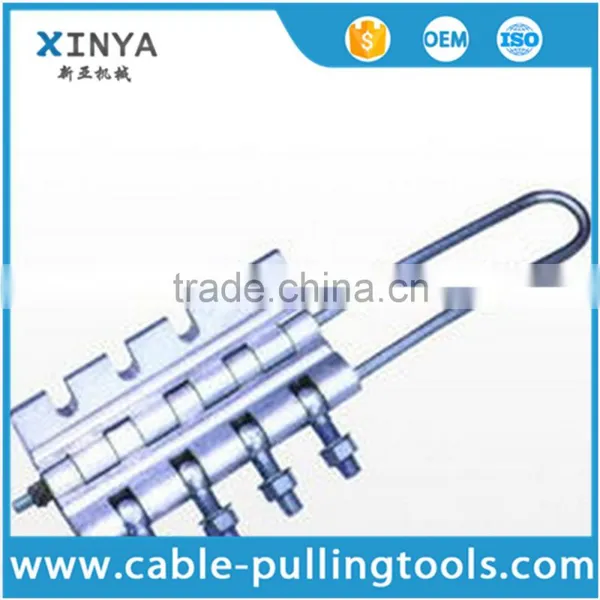

Optical Cable Come Along Clamp of Bolt Type
Characteristic
Optical Cable Come Along Clamp of Bolt Type is used for holding the OPGW overhead optical ground wire.
The diameter of optical cable is same as the size of clamp,in order to ensure clamping firmly, reduce the pressure of clamped parts and protect the inside fiber of cable from damaging.
The body is forged from high strength aluminum-titanium alloy , and use the bolt to fasten to prevent the line slipping and hurting.
You need to indicate the outer diameter of optical cable and the model number of optical cable when you place the order.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1:Take First-Class Quality as Target and First-class Service.
2:As Responsibility, To Succeed By Scientific Management.
3:Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for Optical Cable Come Along Clamp of Bolt Type
| Product No. | Model Type | Cable Diameter | Rated Load(KN) | Weight(KG) |
| 80131 | SKG-2.5 | Φ8-20 | 25 | 3.8 |
| 80132 | SKG-4.5 | Φ20(max) | 45 | 4.6 |
| 80133 | SDK-30 | Φ8-22 | 30 | 3 |
