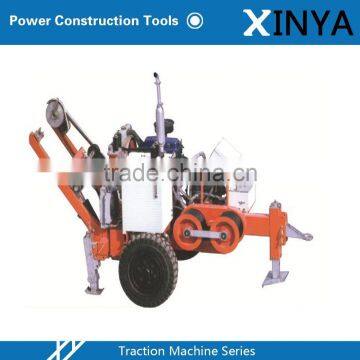

SA-YQ35 Hydraulic Conductor Puller For Stringing Cable Equipment

Name: SA-YQ35 Hydraulic Conductor Puller For Stringing Cable Equipment
Brand: Xinya
SKU: 140801252
Availability: InStock

Changshu Xinya Machinery Manufacturing Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Xinya

Model Number:

SA-YQ-35B

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Xinya

Model Number SA-YQ-35B

Type Hydraulic Pullers

SA-YQ35 Hydraulic Conductor Puller For Stringing Cable Equipment

Characteristic

1.Traction, traction speed can not be adjusted, visual display;

2.Maximum traction force can be preset, automatic overload protection.

3.Pressure loss automatic braking device is used to ensure the safety of system operation

when loss of pressure because of that the engine suddenly stops or other causes.

4.Hydraulic traction rope clamping device, automatic rope convenient loading and unloading.

Technical Data for SA-YQ35 Hydraulic Conductor Puller For Stringing Cable Equipment

Product No.	80023	80024	80025
Model Type	SA-YQ-35B	SA-YQ-55B	SA-YQ-80B
Rated Pulling Force(KN)	35	55	80
Continual Pulling Force(KN)	30	50	60
Max Pulling Speed(m/min)	80	85	95
Diameter of drum(mm)	Φ320*2	Φ460*2	Φ540*2
Slots of drum	7	7	8
Max suitable wire diameter(mm)	Φ15	Φ17	Φ21
Max Connector(mm)	Φ40	Φ52	Φ65
Overall Size(mm)	330016502200	360017002200	350022502100
Weight(kg)	1650	2200	4000
