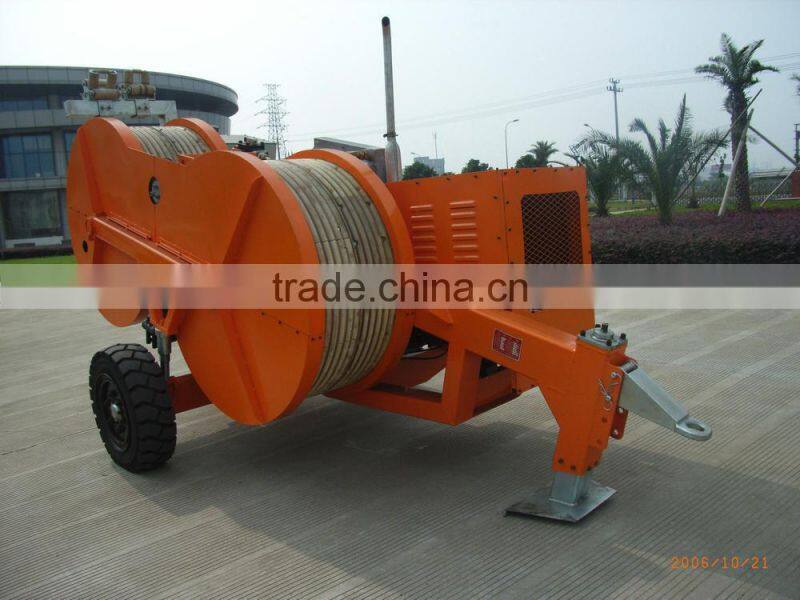

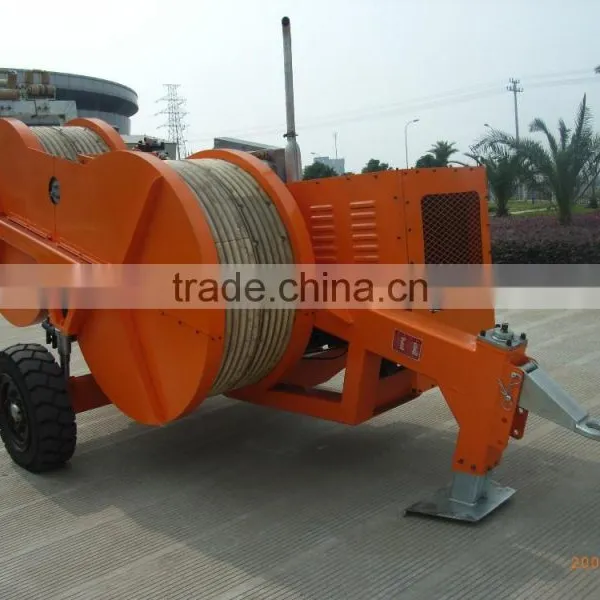

Hydraulic Tensioner 70KN In Overhead Transmission For Stringing Conductor
Application
Hydraulic Tensioner 70KN In Overhead Transmission For Stringing Conductor is used to string various conducts and earthwire.
Feature :
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .
Main component
1.Engine :Chinese famous brand water–cooled engine .
2.main pump and main motor : Rexroth (BOSCH )
3.Reducer : RR(Italian) or Rexroth
4.hydraulic valve : Rexroth (BOSCH )
5.radiator :AKG
6.hydraulic instrument :WIKA
7.it can choose :Deutz air–cooled engine .
Technical Data for Hydraulic Tensioner 70KN In Overhead Transmission For Stringing Conductor
| Model Type | YQZ2×35 |
| Overall Size(MM) | 4450*2250*2700 |
| Weight(KG) | 6500 |
| Max Tension(KN) | 2*35/1*70 |
| Max Continual Tension(KN) | 1*30 / 1*70 |
| Max Velocity(km/h) | 5 |
| Diameter of Tension wheel(mm) | 1200 |
| Solt No. of Tension wheel | 2*5 |
| Rated Pulling Force (KN) | 2*30/1*60 |
| Max Pulling Speed(km/h) | 2*1.2 km/h |
| Max dia of wire | Φ32mm |
| Engine Power | 49KW/ 2500 r/min |
| Voltage | 12V |
