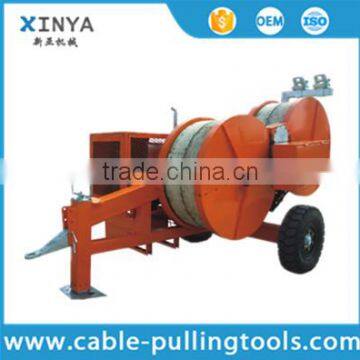

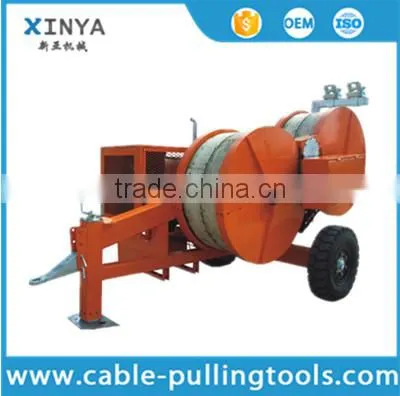

SA-YZ2*30 Stringing Equipment Hydraulic Cable Tensioner

SA-YZ2×30 Stringing Equipment Hydraulic Cable Tensioner

Application

Tension machine is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools or heavy objects , the electric winch  is driven by a belt, effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure the safety of construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.

 Essential parameter:

Maximum Tension(KN): 2×30 or 1×60

Continuous Tension(KN): 2×25 or 1×50

Maximum speed(km/h): 5

Bullwheel bottom of groove diameter(mm): φ1200

Number of grooves: 2×5

Maximum pullback(KN): 2×30 or 1×60

Maximum speedback(km/h): 2×1.2

Maximum suitable conductor diameter(mm): φ32

Engine power/speed(km/rpm): 38/2500

Dimensions(mm): 4100×2100×2600

Weight(kg): 4000

Uses:

Used to string various conducts and earthwires. And it as one pull one or one pull two suing.

Features :

1.Bullwheel with wearproof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing .

3. Spring applied hydraulic released brake acts automatically in case of  hydraulic failure to ensure safety .

4. Attached two sets of hydraulic power output interface to connect hydraulic  reel stand .

Main component:

1. Engine : Chinese famous brand aircooled engine.

2. Main pump/motor: Rexroth(BOSCH)

3. Reducer : RR(Italian)

4. Radiator :AKG

5. Hydraulic value:  Rexroth(BOSCH)

6.Hydraulic instrument: WIKA
