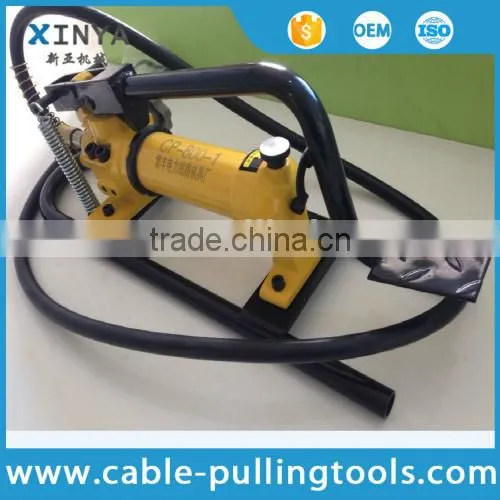

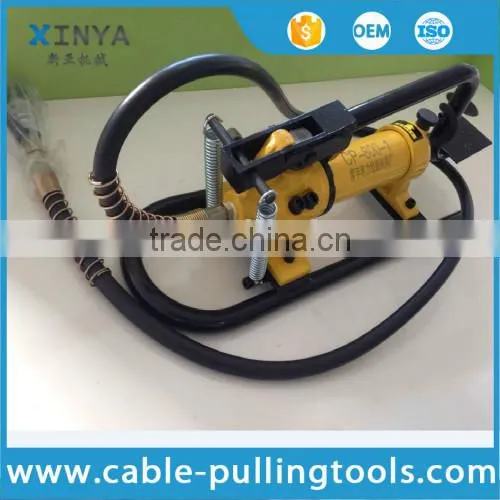

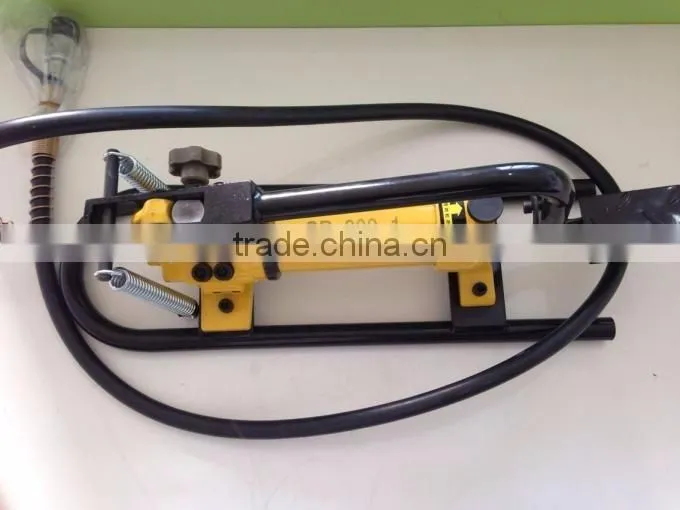

CFP-800 70Mpa Foot Operated Hydraulic Pump For Power Supply
Tools Introduction
Foot Hydraulic Pump CFP-800 is a Foot-operated Single-Acting pump. It is used to provide pressurized oil to compatible remote control single-acting tools: Crimping Head / Cutting Head / Cylinder / Pipe bender / Busbar tools etc. Where 700Bar (10000PSI) working pressure is needed. With PT 3/8" quick coupler, pumps can be quickly connected with compatible tools. Double speed unit and safety valve assembled inside make operation fast and safe.
Specification
1. Application: Supply pressurized oil to compatible tools
2. Single-Acting Foot Operated
3. Rated Pressure: 700Bar (10000psi)
4. Working Pressure: Low Pressure 0-20Bar High Pressure: 20-700Bar
5. Oil Delivery Speed: Low Pressure 9.8cc/stroke High Pressure 1.9cc/stroke
6. Weight: 10.1kg Size: 610*140*170mm
7. Package: Steel Case
| Item No: CFP-800 | ||
| Type | hand | |
| Max output pressure | Low pressure | 2Mpa |
| High pressure | 70Mpa | |
| output of the oil | Low pressure | 13cc |
| High pressure | 5.5cc | |
| Capacity of oil | 850cc | |
| Direction of piston | double | |
| Weight | approx10.6kg | |
| Measurement(LxWxH) | 450x150x200mm | |
|
Feature: CFP-800 Hydraulic power Foot operated cutter head Pump 1. Big capacity of oil,operate with big cylinder and punching head including 2 M high pressure hose and coupler plug. be changed every half year. | ||
Features
1. Foot operated style: For easy operation. It's not necessary to bend or crouch down during operation, easpacially good for tall people
2. Quick Coupler: For fast connection with compatible tools.
3. Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (9.8cc/stroke), and then bulid sufficient working pressure under losd condition (20-700Bar)
4. Safty Valve: For safe operation. Automatically relief pressure when rated pressure is reached, protect hydraulic system from overpressure
5. Steel Case Package: For easy carrying and protect pumps well during shipping
