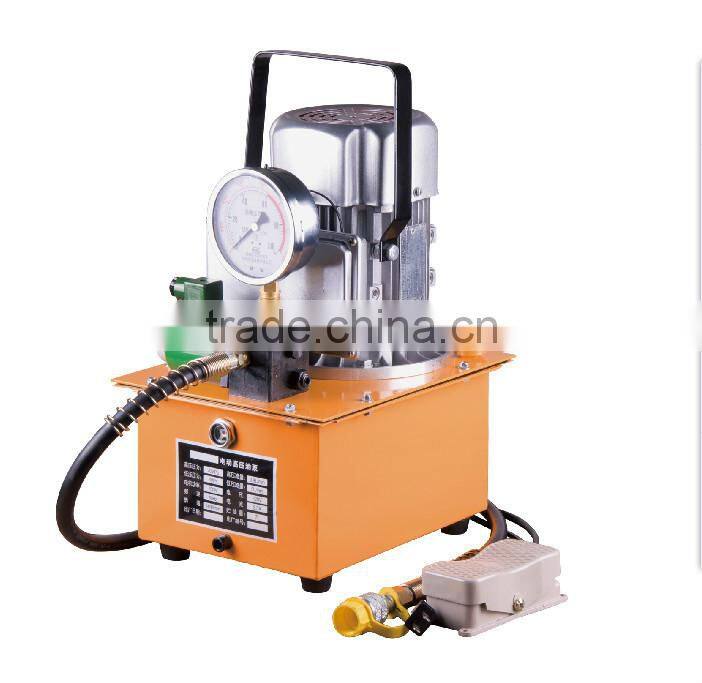

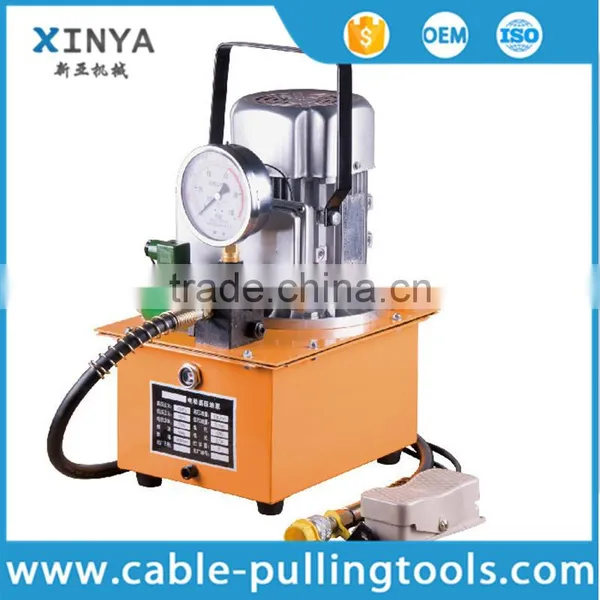

DYB-63A Electric Hydraulic Pump
DYB-63A Electric Hydraulic Pump
Use and Characteristics
Double speed high performance pumps, built in 10000Psi pressure overflow valve, can ensure the maximum flow when maximum pressure.
Standard of can see an oil window, observe the location of oil, with the normal operation that assures machine;
Equipped with low noise pure aluminum alloy enclosure motor and light weight, convenient to move.
Can choose to equip long range wire to control a switch, easy to long-distance to leave an operate
Use the following Suggestions 200 T of hydraulic cylinder
Features:
lOn both ends of the low end of the high output, large amount of oil;
lLow pressure use plunger type, improve the effective pressure;
lSingle active, electromagnetic wired remote control , can solve the problem of large tonnage, long type hydraulic cylinder which reset too slow;
lPressure overload protection device, avoid overpressure and damage the equipment;
lAutomatic the pressure, make sure won't leak when using;
lEquipped with pressure capacitor, pressure in place can control the oil pump stop working.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data of DYB-63A Electric Hydraulic Pump
| Rated Pressure | 63 Mpa |
| Voltage | 220V/380V |
| Electric Power | 750 W |
| Flow | 0.6 L/min |
| Rotate Speed | 1400 r/min |
| Frequency | 50 HZ |
| Dimension(mm) | 390×440×300 |
| Weight | 26 kg |
| Capacity of Tank | 8 L |
