1 Ton Honda Engine Puling Power Winch
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | JJM1Q | Power Source | Other, gasoline | |
| Application | Cranes | Capacity | 10KN |
Product Description

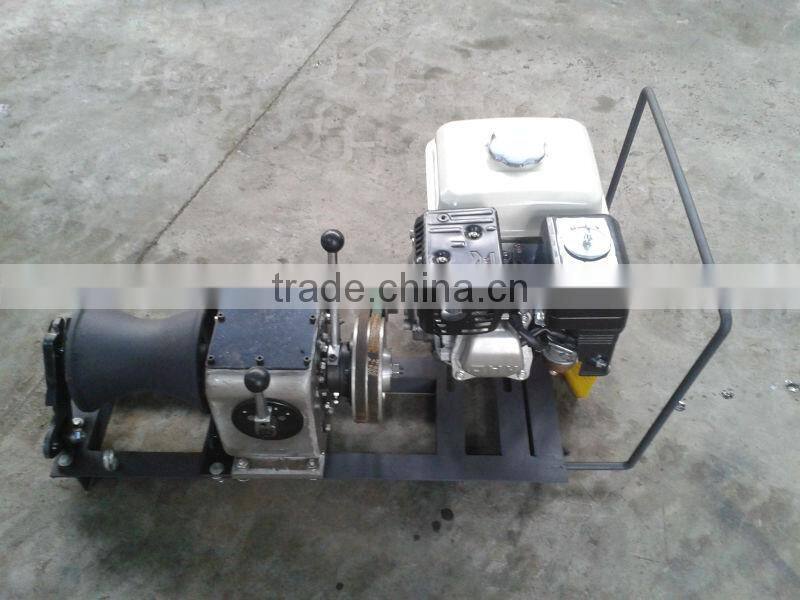

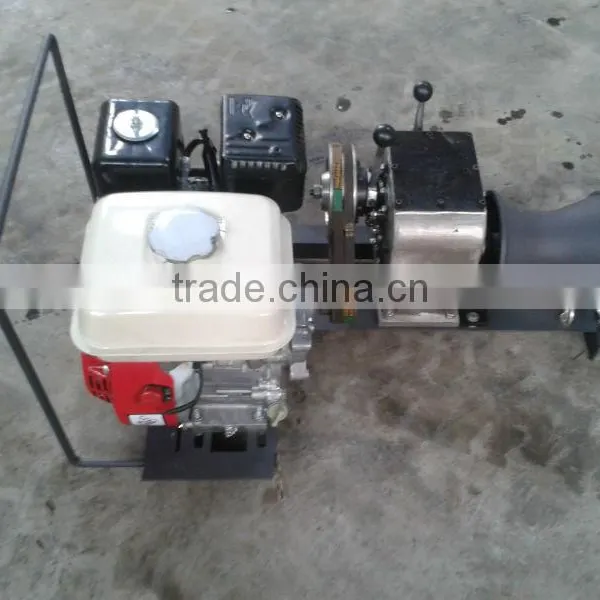

1 Ton Honda Engine Puling Power Winch
Application
1 Ton Honda Engine Puling Power Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1-Q | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| Electric motor | (Slow) | 10.0 | 0.8 | 46 | |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! |
Test before shipment
Application
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
