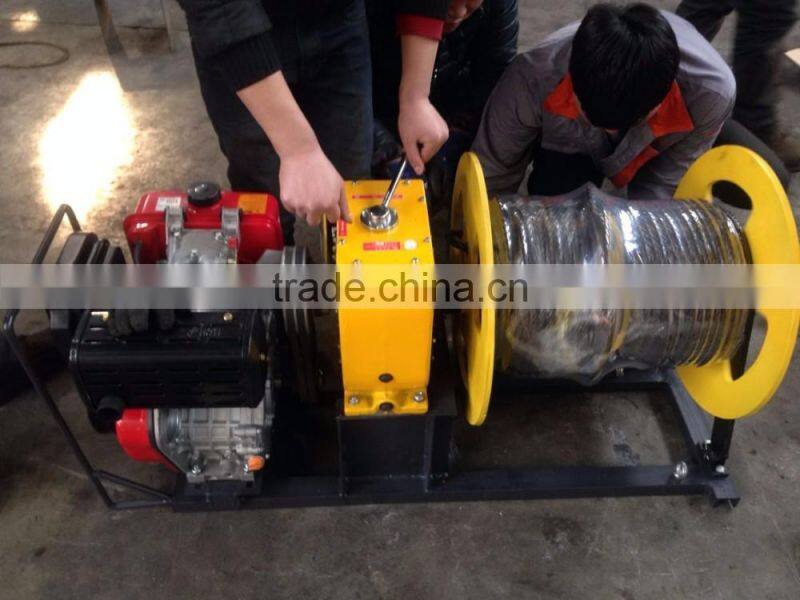

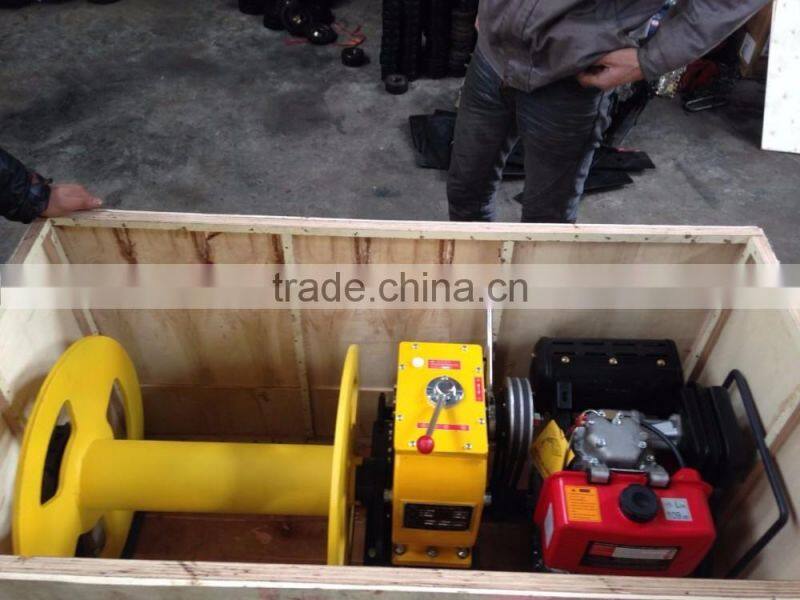

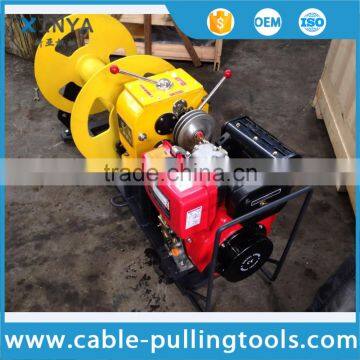

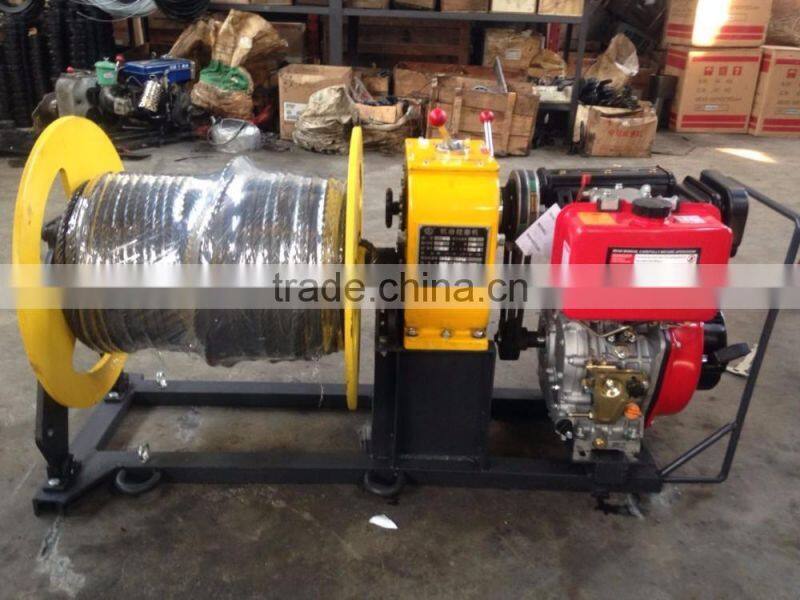

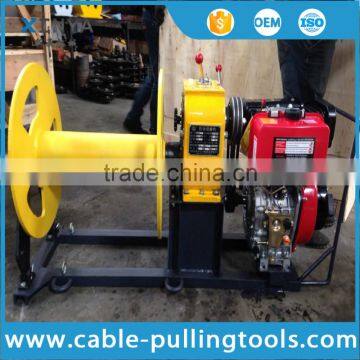

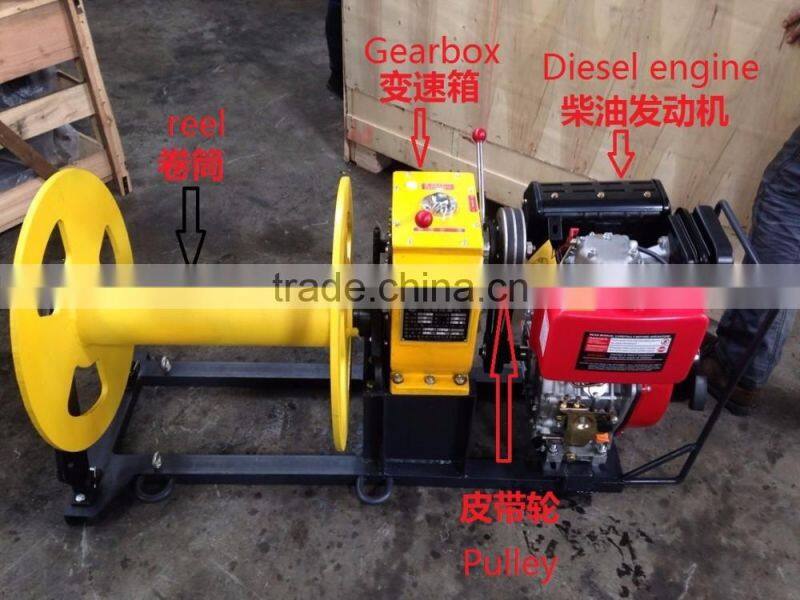

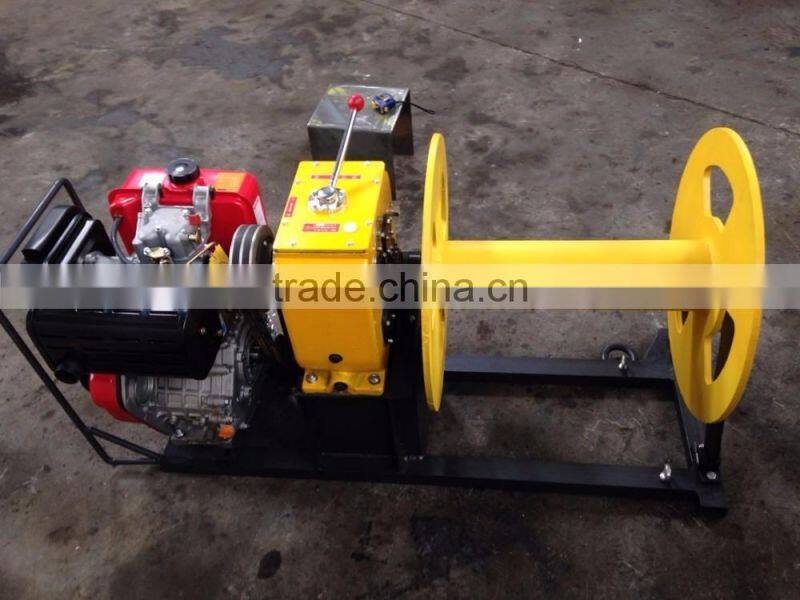

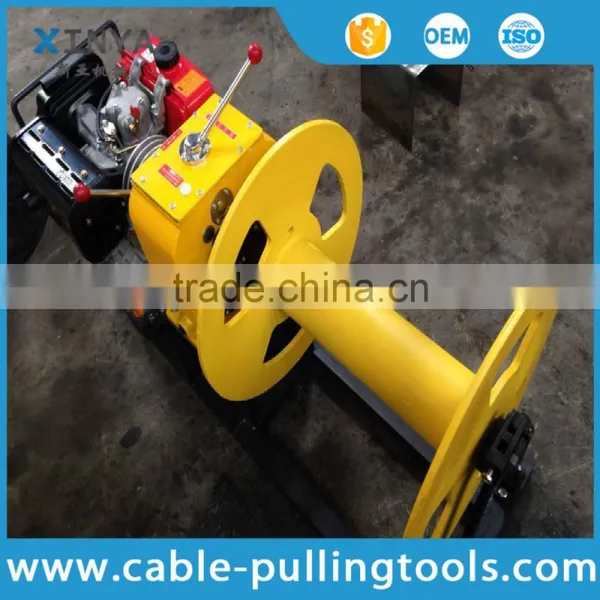

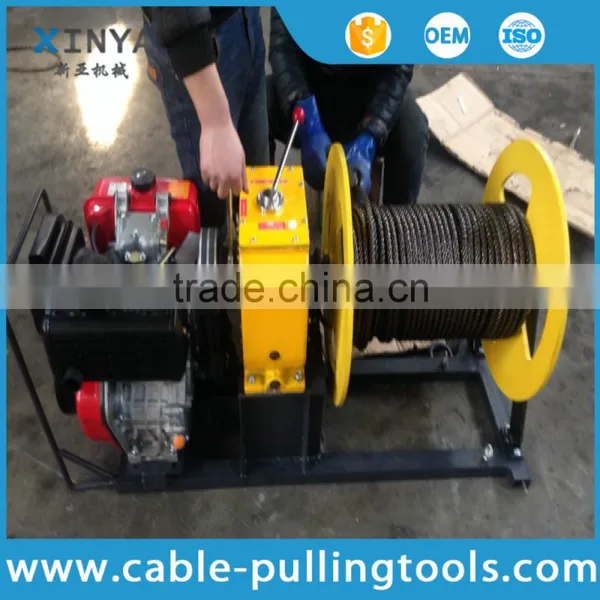

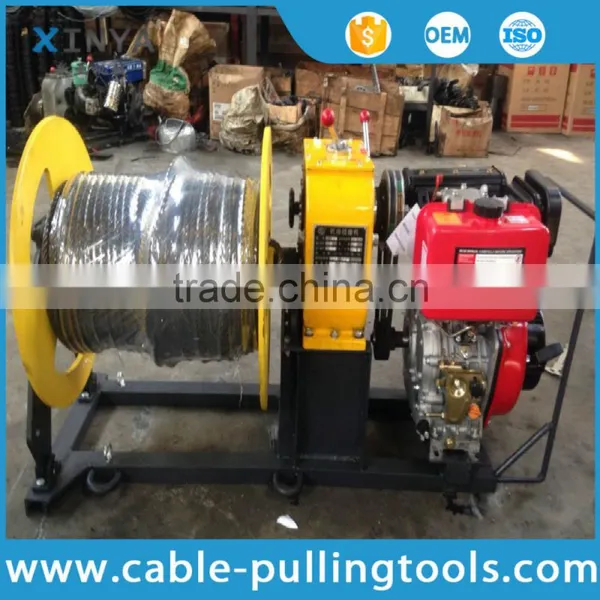

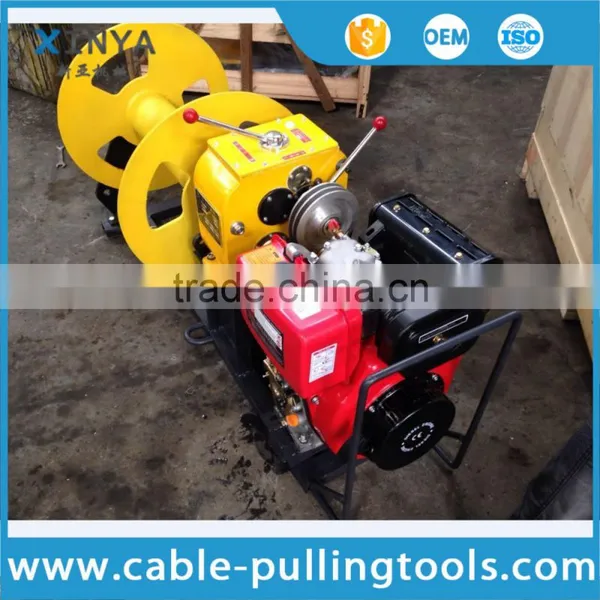

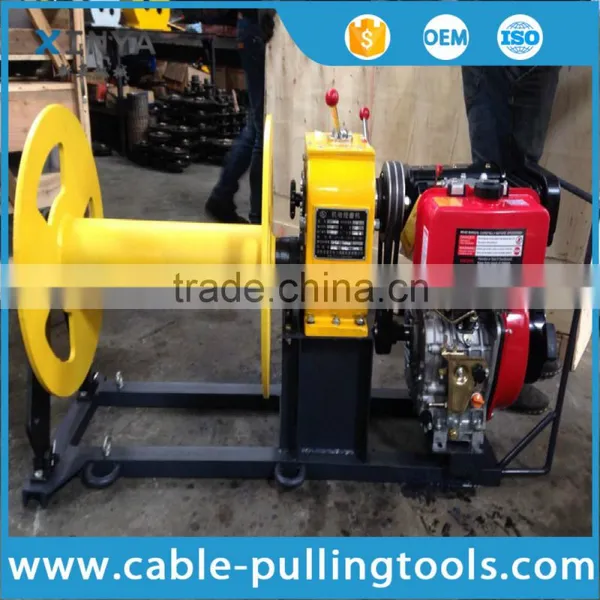

3 Ton diesel engine wire rope hoist winch puller winch
Application
3 Ton diesel engine wire rope hoist winch puller winch is used for tower erection,pole setting,stringing wire in electrical power line construction.The engine of this product is 188F Air-cooled diesel enging.It doesn't need water, is just cooled by air.
Diesel Engine 188F Air-Cooled
1. Type:Single-cylinder, vertical, air-cooled, four-stroke diesel engine
2. Bore X Stroke (mm):88x75
3. Displacement (ml):456
4. Engine speed (rpm):3000/3600
5. Compression ratio:19: 1
6. Rated power (kW):7 / 3000,8 / 3600
7. Rotation direction (face flywheel view):Clockwise
8. Fuel (recommended):No. 0 or No. -10 diesel
9. Fuel tank capacity (L):5.5
10. Fuel consumption (g / kW.h):3000: 273,3600: 279
11. Oil Capacity (L):1.65
12. Starting method:electric start
13. Dimensions (length X width X height) (mm):500x475x555
14. Weight (kg):54
Technical Data of 3 Ton diesel engine wire rope hoist winch puller winch
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM3C | diesel engine | (Slow) | 5 | 3 | 150 |
| (Fast) | 12 | 1.8 | |||
| Reverse | 4.5 | No Lifting! |
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
