10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley

10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley photo-1
10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
DHP/DHPG
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name XINYA
Model Number DHP/DHPG
Usage Other, stringing

10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley

10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley





Overview

Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.

The ground cable rollers and corner cable rollers from SINTA are made of aluminium, steel or plastic. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.



Advantages

1. All Powder Coating with Plastic Coated Heavy Duty assembly suitable for Cables up to 125mm Diameter.

2. Steel Frame Fitted Large waited steel roller running on sealed ball bearings.

3. Base Size : 560mm × 330mm × 330 (L × W × H)....also can be customized

4. Roller Size : 115mm Dia × 190mm Length

5. Both Ends of Rollers, fitted ZZ Bearings with Bearing Covers.and we also have nylon rollers



Specs

Serial No.Material

Length

(mm)

Width

(mm)

Height

(mm)

wheel diameter

(mm)

wheel width(mm)

weight

(kg)

ST- 8603Q235 carbon steel frame & aluminum roller / nylon roller3302302601401605
ST-8601Q235 carbon steel frame & aluminum roller / nylon roller5303003001401608

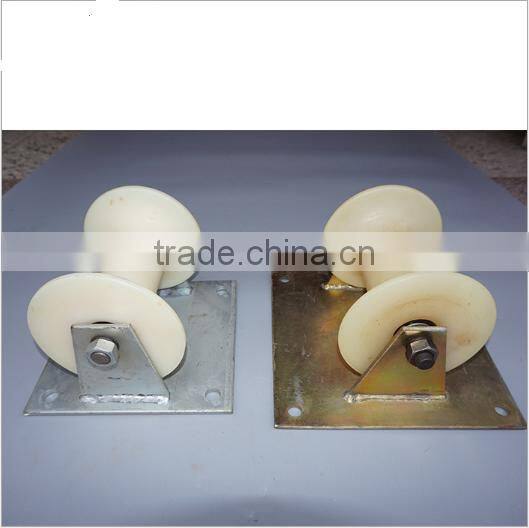

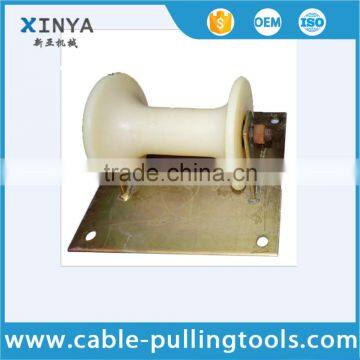

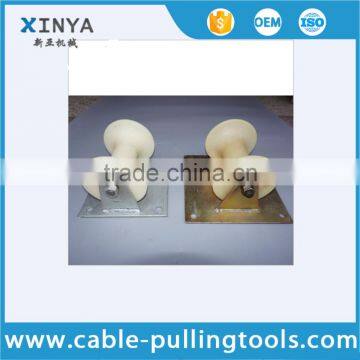

Electrical cable roller pictures

Steel frame + aluminium or nylon wheel

10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley



10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley



10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley





10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley

10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley

Packaging & Shipping



10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley

10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley

Company Information



10KN Load Capacity Straight Line Nylon Cable Roller Cable Pulley



FAQ



Please tell us the following information in your enquiry:

1. Range (mm) ?

2. Rated Load( KN) ?

3. specifications(mm) ?

4. Quantity?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
