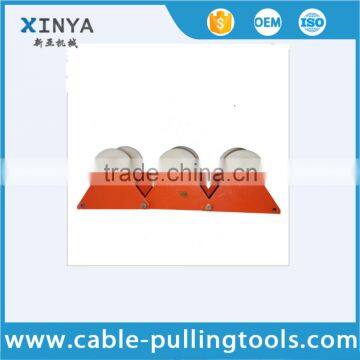

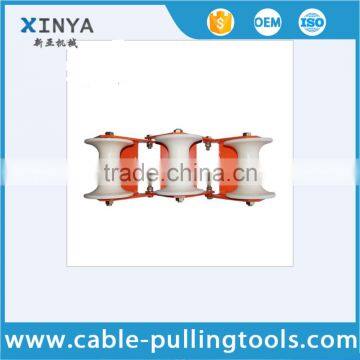

Manhole Cable Rollers Triple Cable Pulley With Nylon Wheel φ140x160mm
Cable pulley widely used for the cable laying contractor, utility and electricity supply industry – this includes straight cable rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches . Cable rollers should always be used when pulling cables.
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud - cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
2. Application
cable rolelr used for based on ground electirc power cable laying.
3. Data Sheet
| Product No. | Length(mm) | Width(mm) | Height(mm) | Weight(kg) | Payload Max |
| YT1111 | 530 | 230 | 260 | 8 | 10KN |
4. Service
We could supply cable roller with nylon and aluminium alloy cable roller which used for laying cable,electric power cable, special size we could made for customer for design.
Please tell us the following information in your enquiry:
1. Range (mm) ?
2. Rated Load( KN) ?
3. specifications(mm) ?
4. Quantity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
