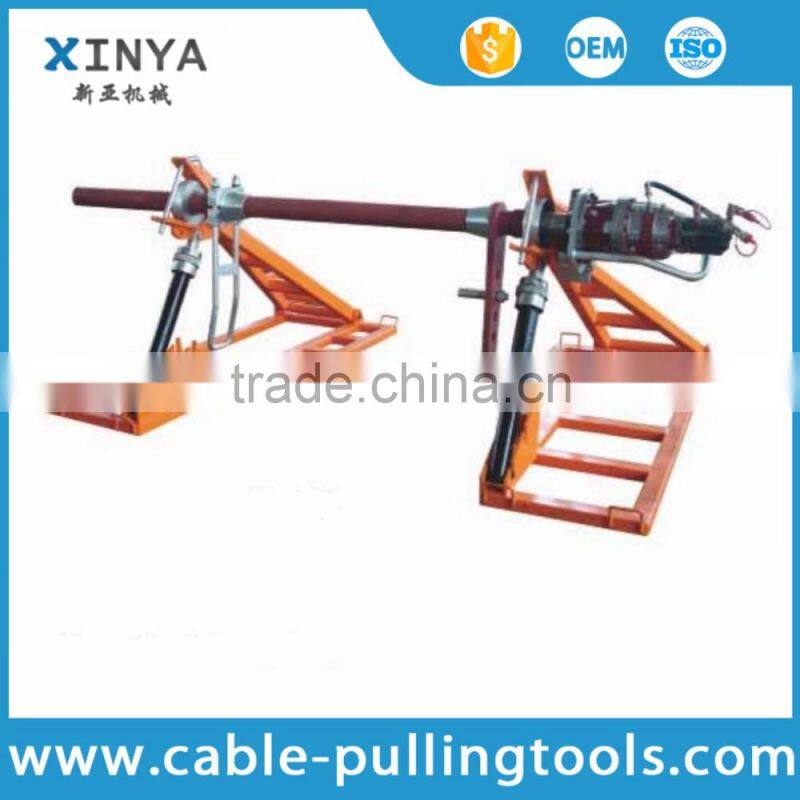

Large Capacity Hydraulic Conductor Reel Stands/Cable Stand Reel Stand
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
SIYZ10,SIYZ15
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HZT Series Cable Reel Rotator Platform For Wire Cable Wooden RollersUS$ 100 - 200MOQ: 2 Sets -
4 Tonne Scissor Lift Cable Drum Jacks Cable Drum Stand for Medium Sized DrumsUS$ 350 - 1,500MOQ: 2 Sets
-
Heavy Duty 10 Tonne Cable Drum Stands With Hydraulic Jacks for Drum Diameter 3200mmUS$ 350 - 1,500MOQ: 2 Sets
-
15 Tonne Cable Drum Stands With Hydraulic Powerpack For Heavy Cable Drum SpoolingUS$ 350 - 1,500MOQ: 2 Sets
-
SIL-5 5 Ton Simple Mechnical Reel Payout Stand Steel Wire Reel StandUS$ 200 - 350MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SIYZ10,SIYZ15
Usage
Other, Stringing
Large Capacity Hydraulic Conductor Reel Stands/Cable Stand Reel Stand
Application
Large Capacity Hydraulic Conductor Reel Stands/Cable Stand Reel Stand is applicable to the placement of the cable tray, with hydraulic lifting.
Features
It is applicable to be as the support of large cable reel in laying cables in the city.
It is easy to move with the trundles in the bottom.
It can be equipped with a braking device, using the foot brake.
Notes:Connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling.
Technical Data for Large Capacity Hydraulic Conductor Reel Stands/Cable Stand Reel Stand
| Order number | 10610 | 10611 |
| Model | SIYZ10 | SIYZ15 |
| Diameter of coil(mm) | Φ2000-3000 | Φ2000-3800 |
| Max width of coil(mm) | 1700 | 1950 |
| Diameter of axle hole(mm) | Φ125-130 | |
| Maximum weight(kg) | 10000 | 15000 |
| Max working torque(N.m) | 3300 | 4500 |
| Max speed(rpm) | 45 | 45 |
| Axle diameter | Φ94 | Φ119 |
| Weight(kg) | 597 | 789 |
| Length of hydraulic tube(m) | 15 | 20 |
