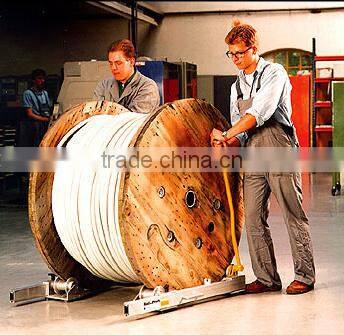

HZT Series Cable Reel Rotator Platform For Wire Cable Wooden Rollers
US$ 100 - 200
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
HZT1250
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Tonne Scissor Lift Cable Drum Jacks Cable Drum Stand for Medium Sized DrumsUS$ 350 - 1,500MOQ: 2 Sets -
Heavy Duty 10 Tonne Cable Drum Stands With Hydraulic Jacks for Drum Diameter 3200mmUS$ 350 - 1,500MOQ: 2 Sets
-
15 Tonne Cable Drum Stands With Hydraulic Powerpack For Heavy Cable Drum SpoolingUS$ 350 - 1,500MOQ: 2 Sets
-
SIL-5 5 Ton Simple Mechnical Reel Payout Stand Steel Wire Reel StandUS$ 200 - 350MOQ: 1 Set
-
10 Ton Hydraulic Cable Reel Stand With Hydraulic MotorUS$ 3,000 - 4,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
HZT1250
Usage
Other, stringing
HZT Series Cable Reel Rotator Platform For Wire Cable Wooden Rollers

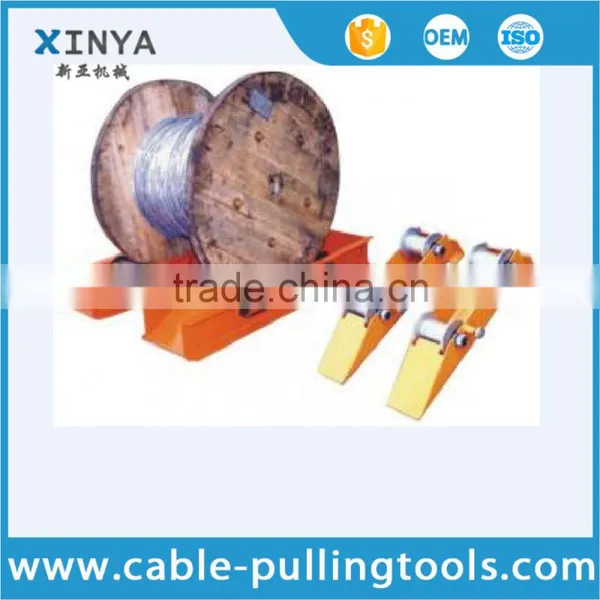

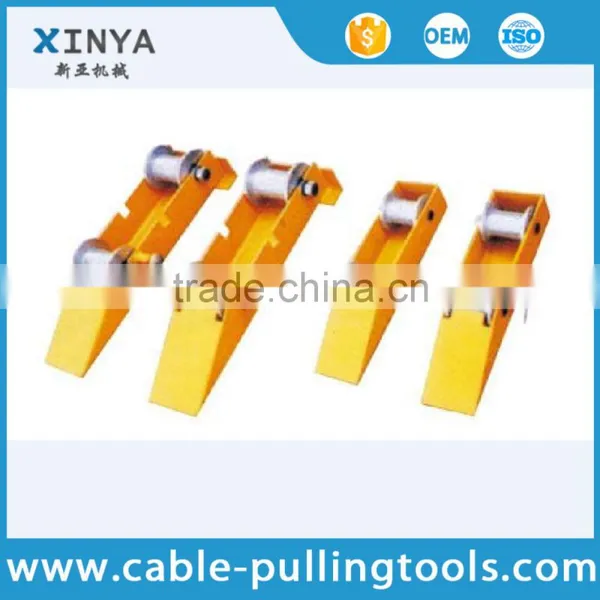

Summarize: serves as cable reel spread fixture, apply to electric power, communication and relatively industry to lay cable; the product consisting of turntable, roller, axis of roller and lock fixture , mounted rolling bearing on roller, reel running flexible.
Essential technical parameter
| Item number | 21533 | 21552 | 21551 |
| Model | HZT1250 | HZT1800 | HZT2500 |
| Appllicable drum diameter (mm) | Φ500~Φ1250 | Φ500~Φ1800 | Φ500~Φ2500 |
| Maximum weight of drum (kg) | 500 | 1500 | 1500 |
| Dimension (mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Single piece weight (kg) | 17 | 40 | 73.5 |
Using method :
1. Mounted on two roller base on the drum diameter.
2. Lock the roller on the slope.
3. Adjust roller base on the drum diameter.
4. Slopes the drum rim up the turntable along its slants.
5. Relieve the locking roller, then you can turn the drum.
