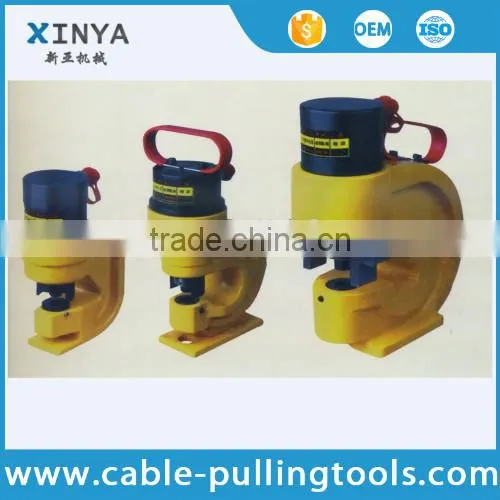

Hydraulic Hole Punching Machine Model CH-60 Used Along With Hydraulic Pump

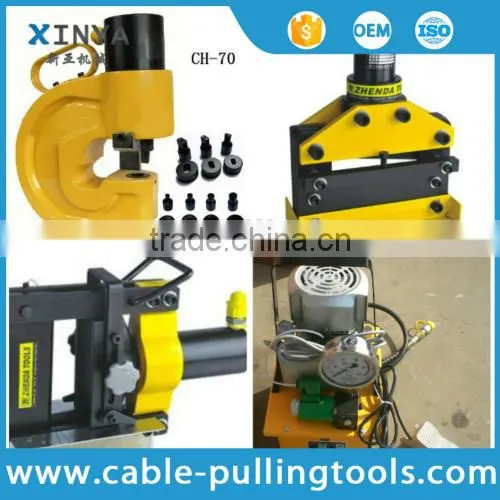

1. CH60,CH-70 split-unit hydraulic hole digger is specilized for cornor steel,flat steel,brass plate and other metal material hole digging,especially for electrally and construction field etc.
2. match pump CFP-800-1,CP-700 and electric pump
Max thickness of sheet:10mm
Punching force:30T
Depth of throat:100mm
Height approx.35mm
Weight approx.:23kg
3. Pump operated, hydraulic hole punch driver tool, hole digger, hole punching machine.
CH-60 hydraulic hole puncher machine, hydraulic hole punch tool.
Pump operated, hydraulic punch driver tool, hole digger, hole punching machine.
Our factory standard settings: 3/8"(10.5mm),1/2"(13.8mm),5/8"(17mm),3/4"(20.5mm).
Other sizes are accept accordly.
4. CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Technical Reference:
| Punching force | 31T |
| Max thickness of sheet | 10mm of copper sheet/ 6 mm of metal sheet |
| Depth of throat | 95mm |
| Height | approx.390mm |
| Weight | approx.17.5kg |
| Package | carton |
| Size | 390X250X140mm |
| Accessories | 3/8"(Φ10.5), 1/2"(Φ13.8), 5/8"(Φ17), 3/4"(Φ20.5)mm |
| Note | It is used for punching Cu/Al plate, can match pumps CP-700, CFP-800-1 or electric pump. |
