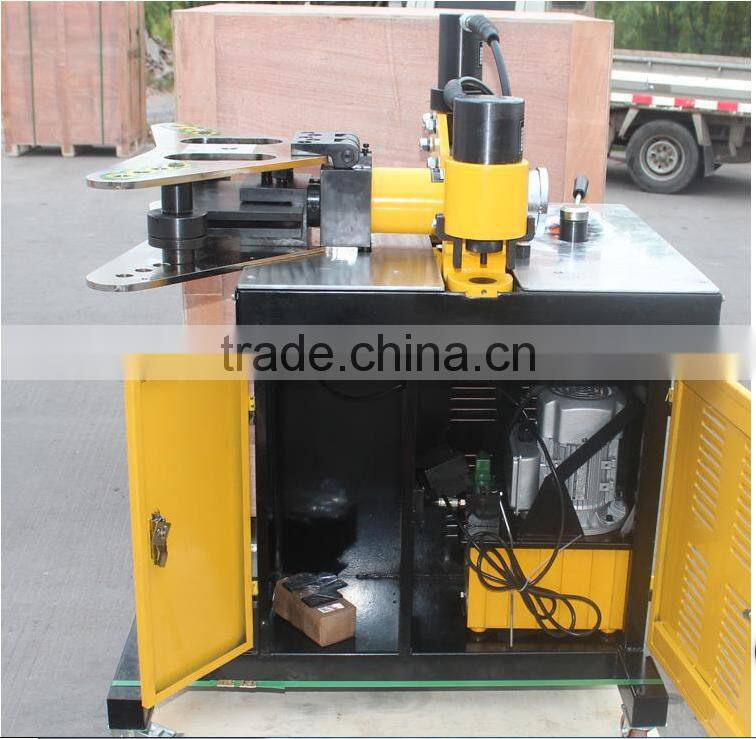

DHY-401 Four Function In One Multi-function Busbar Processing Machine

DHY-401 Four Function In One Multi-function Busbar Processing Machine

Features
Model: DHY-401; This is a combination of a number of functions the body of professional design, perfect to avoid consideration of human waste, that is, provincial working hours, consistent with established operating procedures for personnel engaged in handy, resulting in high efficiency, high quality perfect work;
the form, appearance, easy to move the surface paint and rust treatment by phosphoric acid skin mold, wear-resistant impact;
Three position valve guide precision and convenient operation
hydraulic pump with hydraulic table shows the working pressure to avoid
Avoid overloading,
Foot switch operation device, easy to use
environmental surface treatment table, after grinding and chrome desk, showing accurate and stable table;
affixed with 15cm of steel rule, can work up to standard size parameters;
hand adjustable board seat, for long and short size standard, unified control practices;
security firm foot switch to control the import and return to oil;
focus on the design of copper scrap scrap bags and opened his mouth and out the mouth of slide type can be cut, wearing copper scrap sinks article, but not filled with clutter everywhere

Four in one bus machine DHY-401

Features:

cutting, punching, bending flat stand, the machine and high flexibility, small size and strong function, high productivity and efficiency. Is to produce a large electric control box and transmission and distribution construction works on site an essential tool

Standard equipment:
Electric hydraulic pump, cutting, punching, bending flat, vertical bending tools;

Hydraulic tool specifications:
Cutting Tools CWC-150 copper width 150mm / Thickness 12mm (without side flat copper flat) cut row machine output: 20ton;
CH-70 hole punching machine tool output: 35 tons; iron copper 12mm thick 10mm thick 110mm deep throat

Die four groups: aperture 3 / 8 "(10.5mm), 1 / 2" (13.8mm), 5 / 8 "(17mm), 3 / 4" (20.5mm); reprovision ¢ 7mm, ¢ 9mm
Li, Ping Tool CB-125D flat curved bend, two features  stand bent, aluminum, copper width 40,50,60,80,100,125 mm thickness 4,5,6,8,10,12.5 mm.

Technical Data

Detail Pictures

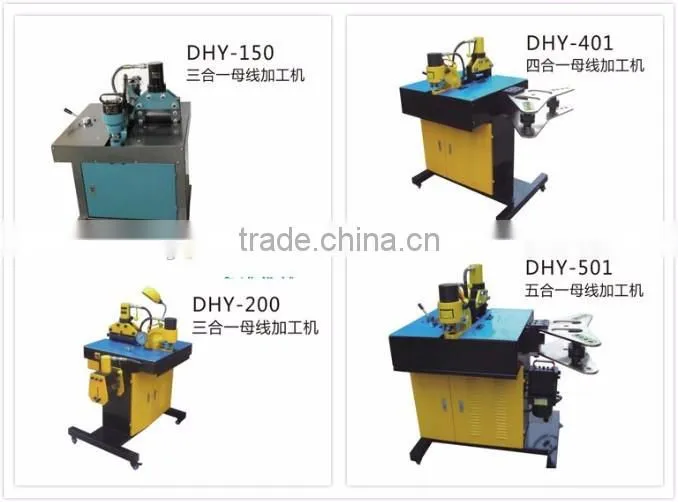

 Different Types
