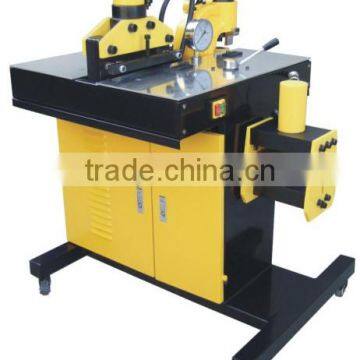

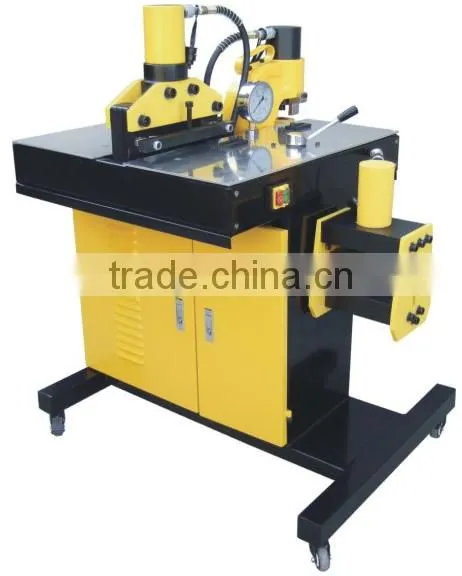

DHY-200 Multi-function Bus Bar Punching Bending and Cutting Processor Machine

Name: DHY-200 Multi-function Bus Bar Punching Bending and Cutting Processor Machine
Brand: Xinya
SKU: 140799216
Availability: InStock

Changshu Xinya Machinery Manufacturing Co., Ltd.

US$ 1,000 - 1,200 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Xinya

Model Number:

DHY-200

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Xinya

Model Number DHY-200

Type Other, multifunction

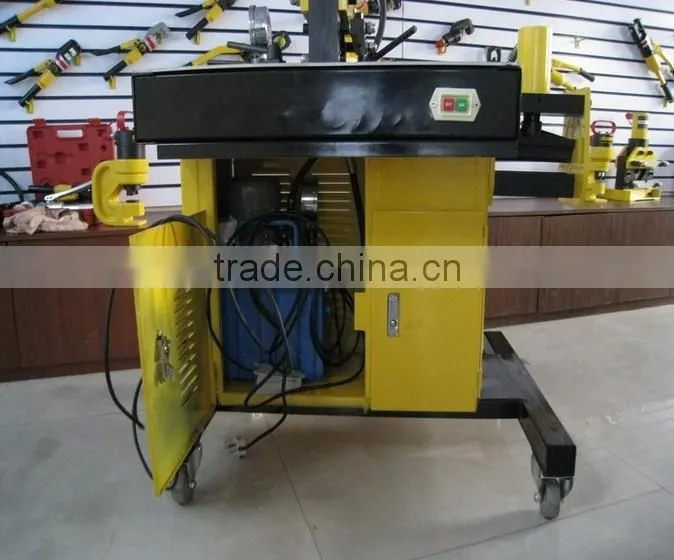

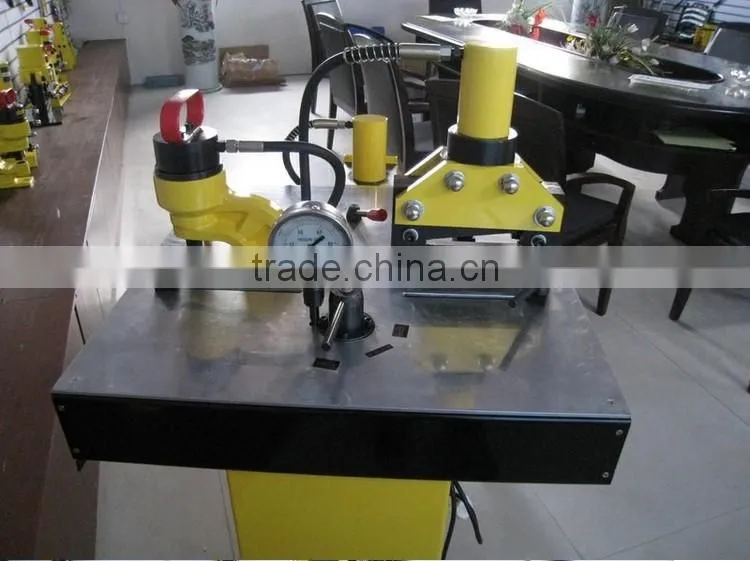

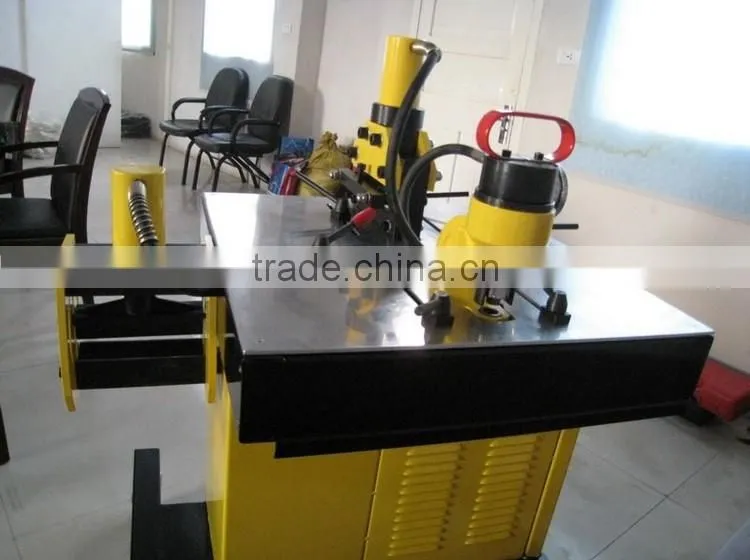

DHY-200 Multi-function Bus bar Punching Bending and Cutting Processor Machine

Use and Characteristic

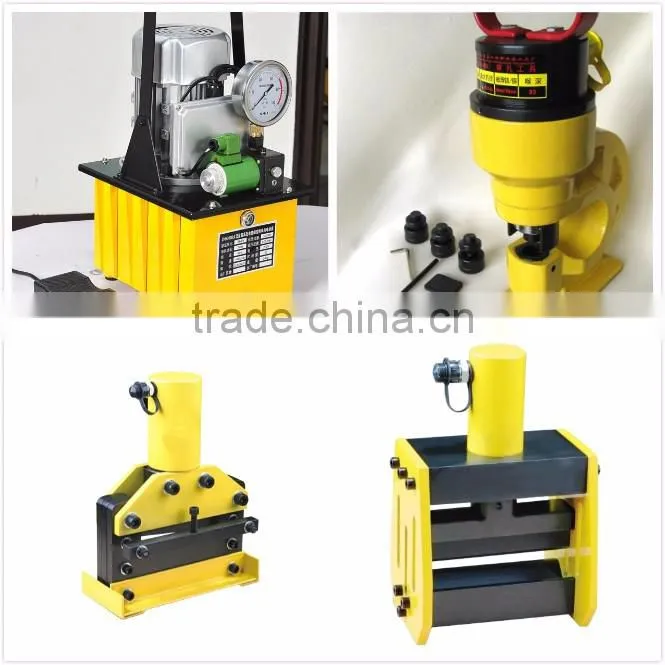

Triad Busbar Cutting Machine is the combination of punching,bending and cutting.

The manometer with the pressure of 1000kgs/cm makes the process under control,prevent the machine from overloading.

The hand switch can be adjusted easily to control the depth and the width of the sheet

Four direction valve makes the process of punching,bending and cutting go accurately

Reliable and stable foot-type switch.

Technical Data

DHY-200 Muti-function Busbar Processor Machine

Busbar Processor Machine

Busbar Processor Machine DHY-200 for cutting ,bending,punching busbars of 200mm( width) X12mm(thickness) COPPER & ALUMINIUM SHEET .

Functions	cutting, punching and bending
Dimension	89mm(L)x67mm(W)x132mm(H)
Input voltage	Single phase 50Hz,220V
Rating oil pressure	700kg/cm2
Cutting Force	35T
Cutting Range	200mm(Width)X12mm(Thickness)
Punching Force	35T
Distance from hole to sheet side	95mm
Punching Range	Φ10.5, Φ13.8, Φ17, Φ20.5
Bending Force	20T
Bending Range	200mm(Width)X12mm(Thickness)
Weight	190 kg
