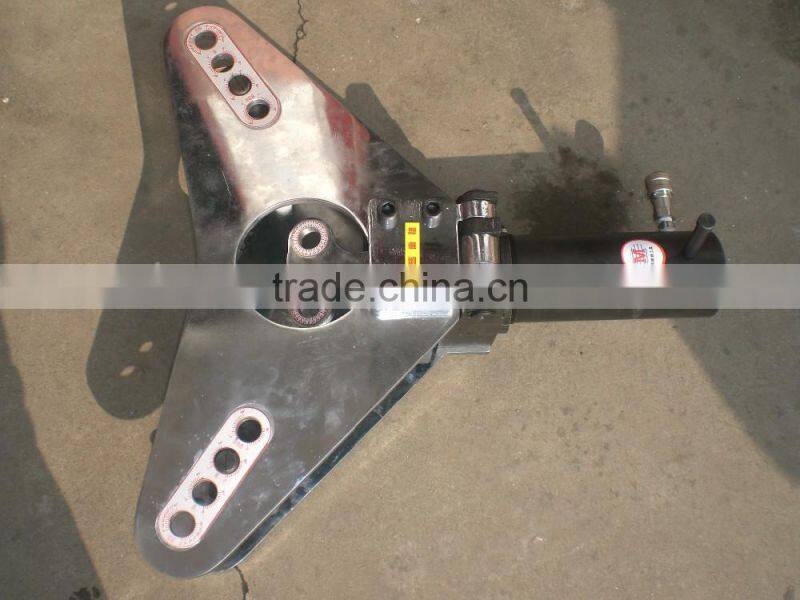

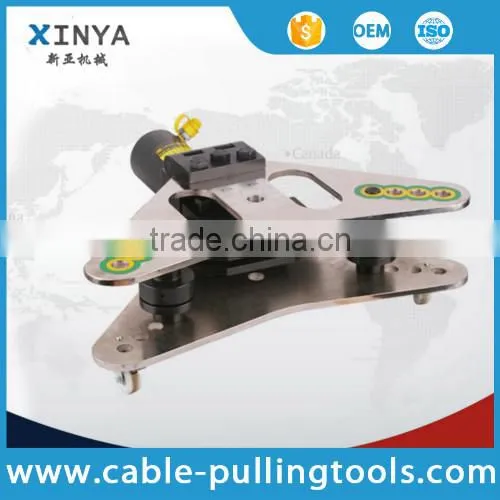

PLW-125 35T Hydraulic Busbar Bending Machine For Cu&AL Busbar

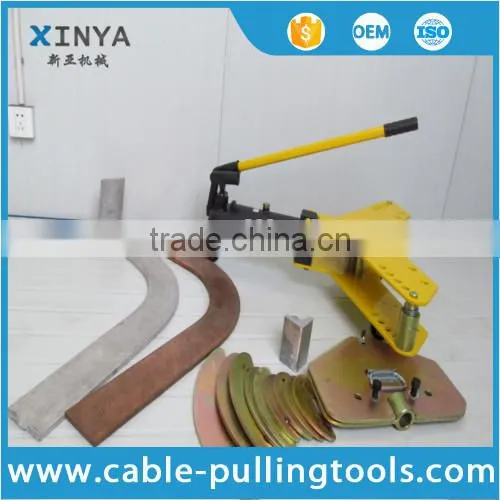

PLW-125 35T Hydraulic Busbar Bending Machine For Cu&AL Busbar

Structure:

1.Working cylinder
2.Rapid connector
3.Side of block
4.Spent on board
5.Under the flower plate
5.Roll column
6.R template
7.Clamp die
8.Right angle die
9.United pole plate
10.Pin
11.Car
12.High pressure pipeline
13.hand pump(electric pump)

FUNCTION:

1.It is designed for bending bus bar in 125mm used in power generation factory.powertransmission station and copper bus bar and aluminum bus bar.

2.2 in l horizontal and erective bending available.lt's really one machine in two function.

3.The hydraulic cylinder with 35 Ton of outlet force. lt's very powerful in quick speed and high efficiency.

4.It is made in flip style for easy taking workpiece.

5.The unit body is made from high tough alloy steel. As a result,it's light weight for carrying conveniently. Bending bus bar smoothly 6.Ouick coupling for easy load and unload.

7.Standard and assembling:  Horizontal bending die:One moveable die.two errective poles, one adaptor.

                                               Erective bending die.one die frame.two big grip plank.two small grip plank.seven crescent die plate,two support for erective bending.

Data Sheet

Form:Single Active Oil Pressure Type

Output(T):35

Weight(kg):90

Working Range(mm):290

Size(mm):Machine Seat Width 680 Total Length Of Oiling Cylinder 770

Max.Width(mm):40,50,60,80,100,125

Max.Thickness(mm):4,6,8,10,12

Body Weight:One Piece For Machine Wing+Oil Pressure Cylinder And Upper/Lower Template Die Stand Bend Accessories(mm):Die X7 Set,Wheel Seat X2,Bolt X2,Lining BarX4 Flat Bend Accessories(mm):Upper,Lower MoldX1,Fixed BoltX2,Bending Angle 90 Degrees

Thickness of Copper Bus Bar(mm):4,5,6,8,10,10,12

Width of Copper Bus Bar(mm):40,50,60 ,80,80,100,100,125,125

Bending Dies For Assembling(mm):1,1,1,1,1,1,1

Bending Angle:90,90,90,90,90,90,90

Bending Shape R Inner Radian(mm):110,140,140,160,160,160,160
