Home > Products > Busbar Processing Machine Series > Muti-function Busbar Processor Triad busbar processing machine
Muti-function Busbar Processor Triad busbar processing machine
- 100 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | DHY-150 | Type | Other, busbar bending machines |
Product Description

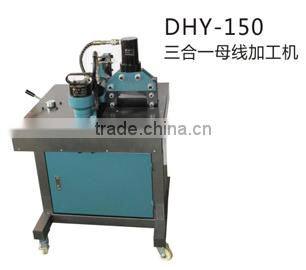

Muti-function Busbar Processor Triad busbar processing machine
Use and Characteristic
Multi Function Hydraulic Busbar Processor is the combination of punching,bending and cutting.
The manometer with the pressure of 1000kgs/cm makes the process under control,prevent the machine from overloading.
The hand switch can be adjusted easily to control the depth and the width of the sheet
Four direction valve makes the process of punching,bending and cutting go accurately
Reliable and stable foot-type switch
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Product No. | 80100 |
| Model Type | DHY-150 |
| Rated wording pressure(MPA) | 63 |
| Power Souce | 75W/220V / 50Hz |
| Output of cutting machine(KN) | 150 |
| Cutting Range(mm) | copper and aluminum≤ 150mm*10mm |
| Output of hole punching machine(KN) | 200 |
| Hole punching range(mm) | Φ10.5- Φ20.5 |
| Output of bending machine(KN) | 160 |
| Flatting range(mm) | copper and aluminum≤ 150*10 |
| Bending range(mm) | copper and aluminum≤ 150*10 |
| Weight (KG) | 160 |
