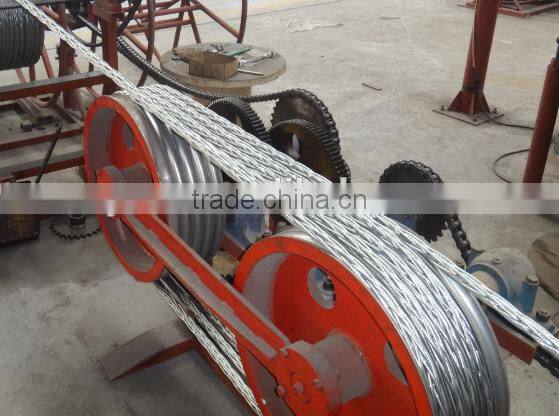

High Strength Anti-twisting Braided Steel Wire Rope 11mm Galvanized
Quick details:
- Size available: 9~30mm
- 6 Squares 12 Strands
- Transmission Line Stringing Accessories
- Anti-twisting Braided Steel Wire Rope
- Normal Diameter: 18mm
- Breakage load: 210kN
- Length: 1000m
Description
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Item no. |
Normal Diameter (mm) |
Structure |
Breakage tension(kN) |
Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
YL9-12x19W |
9 |
12 Strands |
55 |
1000 |
850 |
294 |
YL10-12x19W |
10 |
12 Strands |
55 |
1000 |
850 |
|
YL11-12x19W |
11 |
12 Strands |
80 |
1000 |
1000 |
454 |
YL13-12x19W |
13 |
12 Strands |
120 |
1000 |
1100 |
642 |
YL16-12x19W |
16 |
12 Strands |
158 |
1000 |
1250 |
886 |
YL18-12x19W |
18 |
12 Strands |
210 |
1000 |
1400 |
1154 |
YL20-12x29Fi |
20 |
12 Strands |
250 |
1000 |
1400 |
1394 |
YL22-12X29Fi |
22 |
12 Strands |
320 |
1000 |
1400 |
1258 |
YL24-12x29Fi |
24 |
12 Strands |
360 |
800 |
1440 |
1474 |
YL28-12x29Fi |
28 |
12 Strands |
480 |
500 |
1600 |
|
YL30-12x29Fi |
30 |
12 Strands |
540 |
500 |
1600 |
|
YL20-18x19W |
20 |
18 Strands |
300 |
1000 |
1440 |
1368 |
YL22-18X29Fi |
22 |
18 Strands |
389 |
800 |
1440 |
|
YL24-18x29Fi |
24 |
18 Strands |
440 |
800 |
1440 |
|
YL28-18x29Fi |
28 |
18 Strands |
580 |
500 |
1600 |
1655 |
YL30-18x29Fi |
30 |
18 Strands |
658 |
500 |
1600 |
1900 |
