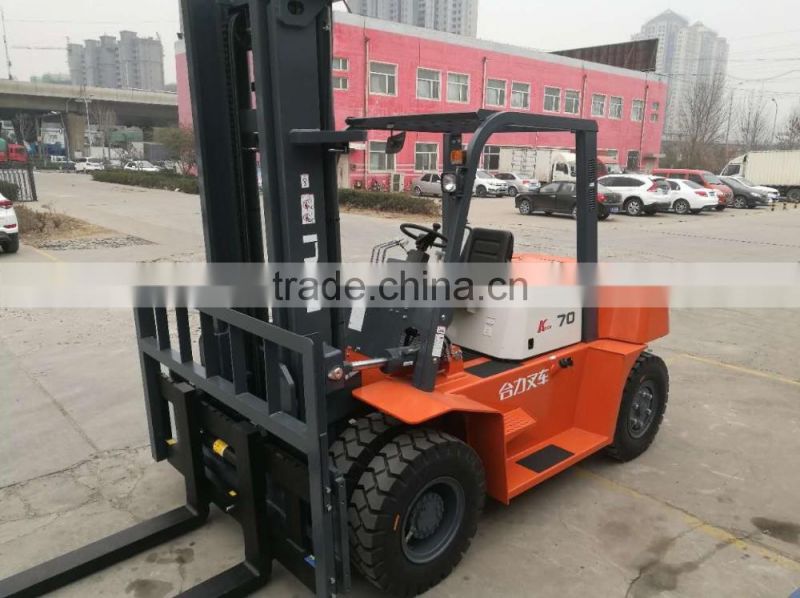

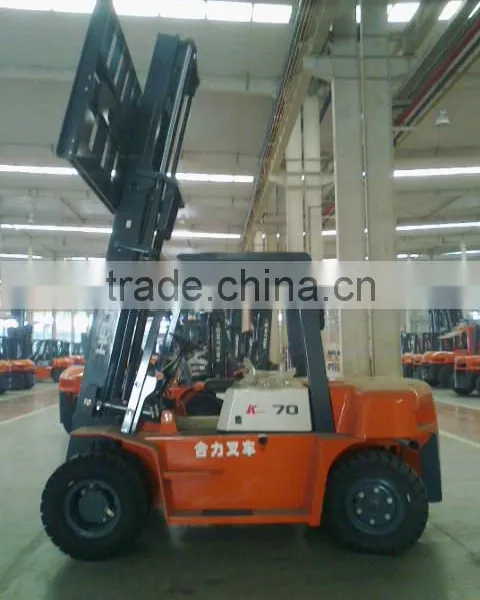

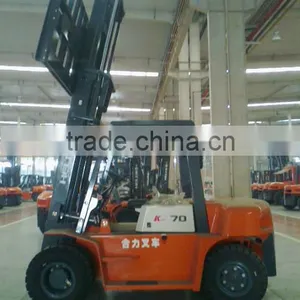

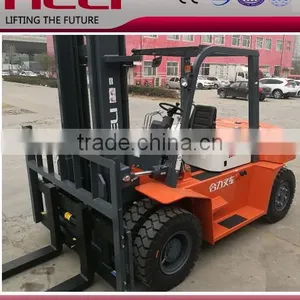

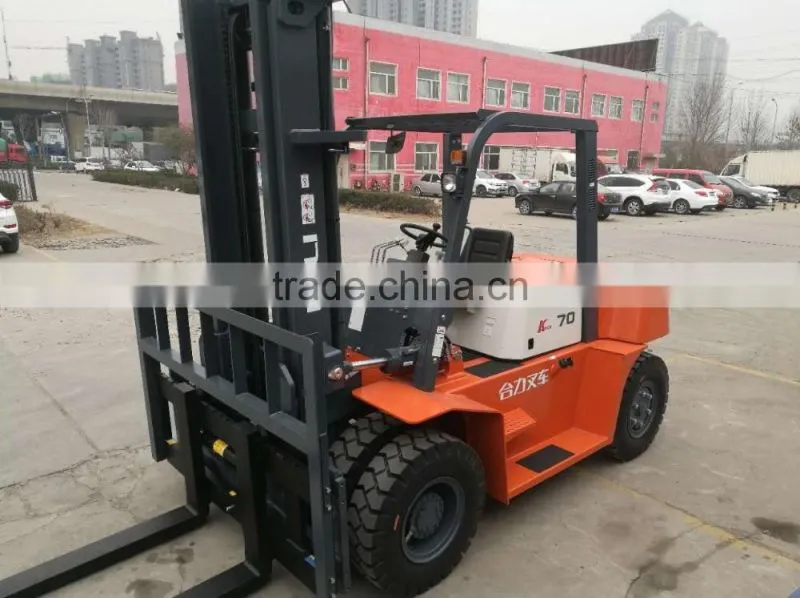

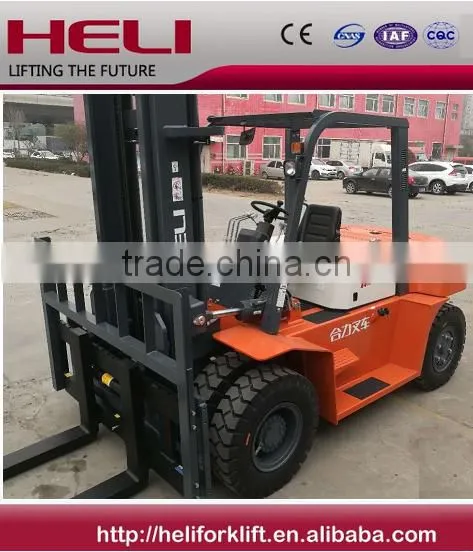

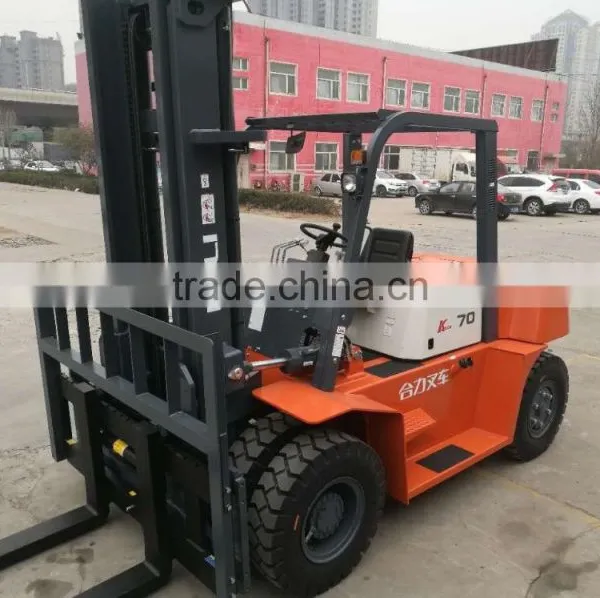

diesel engine forklift about 7ton diesel forklift from HELI
| Characteristic | Unit | ||
| 1 | Manufacturer | HELI | |
| 2 | Model | CPCD70 | |
| 3 | Powe type | Diesel | |
| 4 | Load capacity | kg | 7000 |
| 5 | Load center | mm | 600 |
| 6 | Operation | Setated | |
| Dimension Parameter | |||
| 7 | Overall max.lifting height(with backrest) | mm | 4400 |
| 8 | Lifting height(standard) | mm | 3000 |
| 9 | Mast Height | mm | 2500 |
| 10 | Free lifting Height | mm | 200 |
| 11 | Backrest | mm | 1355 |
| 12 | Distance from seat surface to guard | mm | 1120 |
| 13 | Overall height(overhead) | mm | 2450 |
| 14 | Overall length(with fork) | mm | 4780 |
| 15 | Overall length(without fork) | mm | 3560 |
| 16 | Front overhang | mm | 600 |
| 17 | Rear overhang | mm | 710 |
| 18 | Wheel base | mm | 2250 |
| 19 | Traction hook center hight | mm | 430 |
| 20 | Min,Ground clearance under mast | mm | 200 |
| 21 | Overall width | mm | 1995 |
| 22 | Lateral fork adjustment | mm | 1845-300 |
| 23 | Tread(fwd) | mm | 1470 |
| 24 | Tread(bwd) | mm | 1700 |
| 25 | Turning radius(outside) | mm | 3360 |
| 26 | Min.Right angle stacking aisle width(Pallet 1200*1200) | mm | 5380 |
| 27 | Mast Tilt(fwd/bwd) | deg | 6/12 |
| 28 | Fork size | mm | 60x1220x150 |
| Performance | |||
| 29 | Traveling speed(loaded/unloaded) | km/h | 27/30 |
| 30 | Lifting speed(loaded/unloaded) | mm/s | 500/530 |
| 31 | Lowing speed | mm/s | <=600/>=300 |
| 32 | Max.Traction force(loaded) | KN | 62 |
| 33 | Max. gradeability (loaded/unloaded) | % | 30/20 |
| Weight | |||
| 34 | Service Mass | kg | 9320 |
| 35 | Load Wheel with load(front/rear) | kg | 14550/1700 |
| 36 | Load Wheel without load(front/rear) | kg | 3850/5470 |
| Tyres | |||
| 37 | Wheel number front/rear(x=driven) | 4x2 | |
| 38 | Tyre Type | Pneumatic | |
| 39 | Tyre size(front) | 8.25-15-14PR | |
| 40 | Tyre size(rear) | 8.25-15-14PR | |
| 41 | Service Brake | Power brake(pedal type) | |
| 42 | Parking Brake | Mechanical(hand brake lever type) | |
| Engine | |||
| 43 | Battery(Voltage/Capacity) | V/Ah | 2X12/80 |
| 44 | Engine Model | Xichai CA4DF3 | |
| 45 | Engine Rated Output | kW/rpm | 85/2200 |
| 46 | Engine Rated Torque | Nm/rpm | 460/1400-1500 |
| 47 | Engine Number of Cylinder | 4 | |
| 48 | Engine displacement | L | 4.75 |
| 49 | Fuel Tank Capacity | L | 140 |
| 50 | Transmission type | Auto transmission | |
| 51 | Gear Numner | 2/2 |

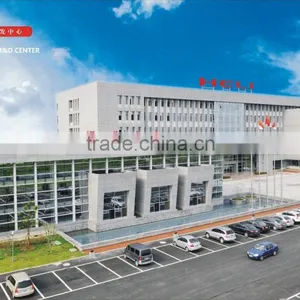

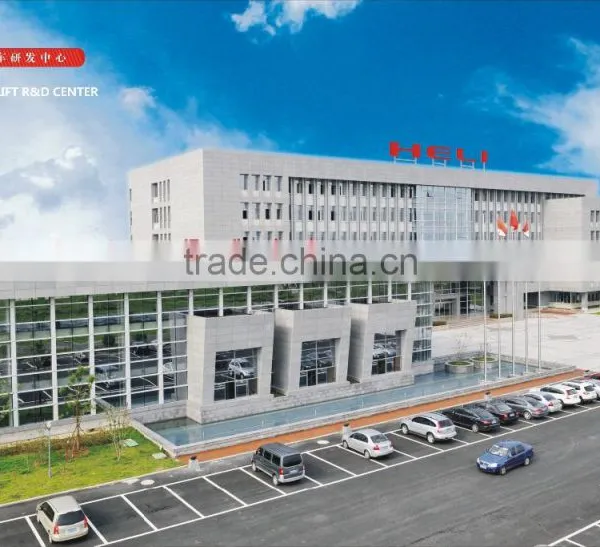

Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
Whatsapp: 0086 13761611524 ; 0086 13072186360
Tel: 0086 13761611524 ; 0086 13072186360
Email: info at
Skype:sinosky54457;pobby_guo258
For more information please visit /
