Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > QC11K Series Hydraulic Guillotine Shearing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
QC11K Series
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QC11Y Series Hydraulic Guillotine Shearing MachineNegotiableMOQ: 1 Set -
Angle Cutting Machine (Corner Notcher)US$ 1,500 - 5,000MOQ: 1 Set
-
HGS Series Hydraulic Guillotine Shearing MachineNegotiableMOQ: 1 Set
-
25mm Dia. x 16mm Thickness Hydraulic Iron Worker Q35Y-16US$ 6,000 - 12,500MOQ: 1 Set
-
Hydraulic Swing Beam Shear Machine / Plate Shear / Plater Shears / Plate Cutter HSS-4x2500NegotiableMOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
QC11K Series
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Carbon Steel
Power
Hydraulic
Automation
Manual
Extra Services
Cut To Length
Certification
ISO 9001:2000

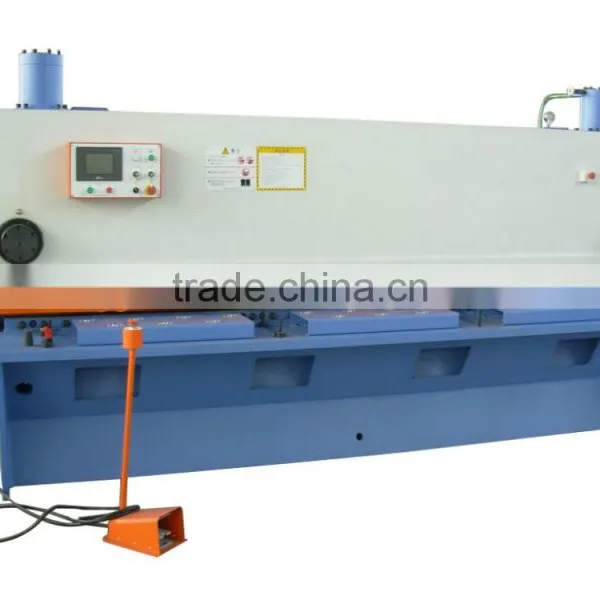

Hydraulic Guillotine Shearing Machine
Features:
* The frame adopts steel welded structure, which the internal stress is eliminated by vibration.
* Tilting head, nitrogen return, and can be adjusted on the tool post stroke volume.
* After the back-gauge size and shear time has a digital display device.
* Upper and lower blade gap adjustment have signs indicate.
* The shadow light device convenient for lineation cutting operation.
* Safety guards which meet the safety norms.
Main configuration:
* Main electrical equipments: Schneider, France
* The low noise of the gear pump
* Advanced integrated hydraulic system
* Fully safety guard protect
* Foot pedal with emergency stop
* The safety of electrical cabinet with interlock
* QC11K series CNC controller: HMI, Estun, Delem, Cyblec, ESA.
* Power supply: According to customer's request.
| Model | Throat depth | Back gauge range | Shear angle | Strokes | Main motor | Overall dimension | Weight |
| QC11K- | mm | mm | min-1 | kw | mm | kg | |
| 4x2000 | 100 | 600 | 0.5-1°30' | ≥20 | 5.5 | 2600x1525x1650 | 4000 |
| 4x2500 | 100 | 600 | 0.5-1°30' | ≥18 | 7.5 | 3100x1625x1850 | 4500 |
| 4x3200 | 100 | 600 | 0.5-1°30' | ≥15 | 7.5 | 3650x1650x1880 | 5800 |
| 4x4000 | 100 | 600 | 0.5-1°30' | ≥12 | 7.5 | 4660x1680x1975 | 7500 |
| 6x2500 | 100 | 600 | 0.5-1°30' | ≥14 | 7.5 | 3100x1725x1950 | 5200 |
| 6x3200 | 100 | 600 | 0.5-1°30' | ≥10 | 7.5 | 3830x1750x1980 | 6200 |
| 6x4000 | 100 | 600 | 0.5-1°30' | ≥10 | 7.5 | 4660x1780x2075 | 8100 |
| 6x5000 | 100 | 800 | 0.5-1°30' | ≥8 | 11 | 5700x1850x2180 | 12500 |
| 6x6000 | 100 | 800 | 0.5-1°30' | ≥7 | 15 | 6700x1890x2380 | 16800 |
| 6x8000 | 100 | 1000 | 0.5-1°30' | ≥5 | 18.5 | 8800x2200x2600 | 36000 |
| 8x2500 | 100 | 600 | 0.5-1°30' | ≥14 | 11 | 3100x1725x1960 | 5400 |
| 8x3200 | 100 | 600 | 0.5-1°30' | ≥10 | 11 | 3850x1750x1980 | 6500 |
| 8x4000 | 100 | 600 | 0.5-1°30' | ≥10 | 11 | 4680x1850x2075 | 8800 |
| 8x5000 | 100 | 800 | 0.5-1°30' | ≥8 | 15 | 5800x1850x2180 | 13500 |
| 8x6000 | 100 | 800 | 0.5-1°30' | ≥7 | 15 | 6800x2100x2450 | 20000 |
| 10x2500 | 100 | 600 | 0.5-2° | ≥11 | 15 | 3195x1800x2210 | 7300 |
| 10x3200 | 100 | 600 | 0.5-2° | ≥10 | 15 | 3900x1800x2240 | 9200 |
| 10x4000 | 100 | 600 | 0.5-2° | ≥7 | 15 | 4700x1930x2250 | 11000 |
| 10x5000 | 100 | 800 | 0.5-2° | ≥8 | 18.5 | 5800x2250x2500 | 17000 |
| 10x6000 | 100 | 1000 | 0.5-2° | ≥7 | 22 | 6800x2450x2700 | 24000 |
| 10x7000 | 100 | 1000 | 0.5-2° | ≥6 | 30 | 7800x2500x2800 | 36000 |
| 10x8000 | 100 | 1000 | 0.5-2° | ≥6 | 30 | 8800x2600x2900 | 43000 |
| 12x2500 | 100 | 600 | 0.5-3° | ≥11 | 15 | 3200x1800x2210 | 7500 |
| 12x3200 | 100 | 800 | 0.5-3° | ≥10 | 15 | 3900x1800x2240 | 9800 |
| 12x4000 | 100 | 800 | 0.5-3° | ≥8 | 18.5 | 4800x1980x2450 | 13000 |
| 12x5000 | 100 | 800 | 0.5-3° | ≥8 | 18.5 | 5800x2250x2600 | 18000 |
| 12x6000 | 100 | 800 | 0.5-3° | ≥7 | 30 | 6800x2500x2800 | 25000 |
| 13x8000 | 100 | 1000 | 0.5-3° | ≥7 | 37 | 9100x2650x3000 | 50000 |
| 16x2500 | 100 | 800 | 0.5-3° | ≥8 | 18.5 | 3250x2100x2450 | 9200 |
| 16x3200 | 100 | 800 | 0.5-3° | ≥7 | 22 | 3950x1880x2450 | 13500 |
| 16x4000 | 100 | 800 | 0.5-3° | ≥5 | 30 | 4750x1950x2590 | 15500 |
| 16x5000 | 100 | 800 | 0.5-3° | ≥8 | 30 | 5700x2250x2850 | 24000 |
| 16x6000 | 100 | 1000 | 0.5-3° | ≥7 | 37 | 6800x2450x3000 | 34000 |
| 20x2500 | 100 | 800 | 0.5-3.5° | ≥6 | 30 | 3250x1900x2450 | 11500 |
| 20x3200 | 100 | 800 | 0.5-3.5° | ≥5 | 30 | 4150x2100x2680 | 16000 |
| 20x4000 | 100 | 800 | 0.5-3.5° | ≥5 | 30 | 4850x2200x2780 | 20500 |
| 20x5000 | 100 | 800 | 0.5-3.5° | ≥5 | 37 | 5700x2350x2950 | 30000 |
| 20x6000 | 100 | 1000 | 0.5-3.5° | ≥5 | 45 | 6800x2450x3150 | 43000 |
| 25x2500 | 100 | 800 | 0.5-3.5° | ≥5 | 37 | 3450x2000x2700 | 15200 |
| 25x3200 | 100 | 800 | 0.5-3.5° | ≥5 | 37 | 4150x1890x2780 | 22000 |
| 25x4000 | 100 | 800 | 0.5-3.5° | ≥5 | 45 | 4850x2400x2900 | 25500 |
| 25x5000 | 100 | 800 | 0.5-3.5° | ≥5 | 45 | 5800x2500x3150 | 38000 |
| 25x6000 | 100 | 1000 | 0.5-3.5° | ≥5 | 55 | 6900x2600x3400 | 50000 |
| 30x3200 | 100 | 1000 | 0.5-3.5° | ≥4 | 45 | 4200x2200x3000 | 24000 |
| 32x2500 | 100 | 1000 | 0.5-3.5° | ≥4 | 45 | 3480x2200x2800 | 22000 |
| 32x3200 | 100 | 1000 | 0.5-3.5° | ≥4 | 45 | 4200x2200x3000 | 28000 |
