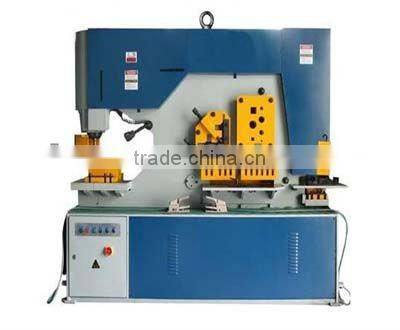

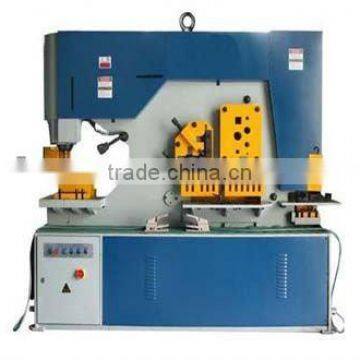

25mm Dia. x 16mm Thickness Hydraulic Iron Worker Q35Y-16

Name: 25mm Dia. x 16mm Thickness Hydraulic Iron Worker Q35Y-16
Brand: TIMAC
SKU: 140798030
Availability: InStock

US$ 6,000 - 12,500 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Hydraulic

Brand Name TIMAC

Model Number Q35Y-16

25mm Dia. x 16mm Thickness Hydraulic Iron Worker Q35Y-16

Feature:

* Sturdy weldment structure.

* Exact stroke length adjustment on all five station, individual adjustment with limit switches.

* Precise machine stop in any position for secure and exact workpiece and fool setup (jog operation).

* 2 cylinder operation, punch and shearing cylinder operates the three shearing stations and the notching unit.

* Central lubrication.

* Optional triangular or rectangular notching unit.

* Hydraulic overload protection.

* Large assortment of accessories.

* Special tools upon request.

Specification:

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Punching
Rated capacity	550KN	750KN	1100KN	1400KN
Dia. x Thickness	25x16(1x0.64)	30x20(1.2x0.8)	35x25(1.4x1)	38x265(1.52x1.04)
Throat depth	300(12)	355(14.2)	400(16)	600(24)
Max. stroke length	80(3.2)	80(3.2)	80(3.2)	80(3.2)
Speed-3/4inch travel	48(24cycles)	48(24cycles)	48(24cycles)	56(28cycles)
Flange punch	6	6	6	6
Shearing
Max. flat bar thichness	16x250(0.64x10)	20x300(1x13.2)	25x330(1x13.2)	30x355(1.2x14.2)
Max. flat bar width	8x400(0.32x16)	10x480(0.4x19.2)	16x600(0.64x24)	20x600(0.8x24)
Blade length	410(16.4)	485(19.4)	610(24.4)	610(24.4)
Blade angle	7°	8°	8°	8°
Angle cutting
Equal angle shearing 45°	70x8(2.8x0.32)	70x10(2.8x0.4)	80x8(3.2x0.32)	80x10(3.8x0.4)
T-bar 90°	125x12(5x0.48)	140x12(5.6x0.48)	160x14(6.4x0.56)	180x16(7.2x0.64)
Section cutting
Square bar Lx L	40x40(1.6x1.6)	50x50(2x2)	50x50(2x2)	55x55(2.2x2.2)
Round bar diameter	45(1.8)	50(2)	60(2.4)	65(2.6)
Notching
Thickness	10(0.4)	13(0.52)	14(0.56)	16(0.64)
Width	50(2)	52(2.08)	55(2.2)	60(2.4)
Depth	100(4)	100(4)	100(4)	100(4)
Specification
Motor power	4kw	5.5kw	7.5kw	11kw
Motor speed	1440r/min	960r/min	1440r/min	1440r/min
Machine dims	1640x750x1770	1860x900x1900	2090x960x2355	2300x1040x2680
Machine dims	(65.6x30x70.8)	(74x36x76)	(83.6x38.4x94.2)	92x41.6x107.2)
Net weight	1600/1800kg	2600/2200kg	4800/5500kg	6800/7800kg
Special ACC.
Channel model	12	16	20	28
Joist model	12	16	20	28
Capacity for mold max.bending	500x4(20x0.16)	500x4(20x0.16)	600x4(24x0.16)	600x4(24x0.16)
