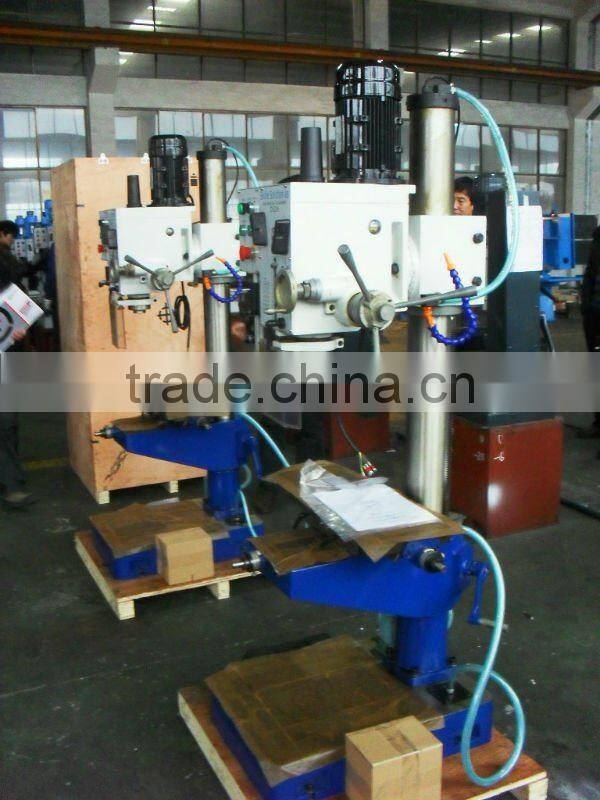

Column Drill Press

Column Drill Press thumbnail-1
Column Drill Press photo-1
US$ 1,000 - 3,000 MOQ: 5 Sets
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Henan, China
Brand Name TIMAC

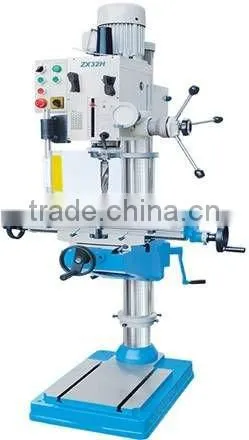

Model Number ZX32H

Specifications

1. Column drill press;
2. Head swivels a circle;
3. Adjustable gibs on table;
4. Positive spindle lock;

DRILLING MILLING MACHINE



Features:

1. Milling, drilling, tapping, boring, reaming;

2. Head swivels 360°;

3. Worktable up & down perpendicularly;

4. Super high column;

5. Micro feed precision;

6. Heavy-duty tapered roler bearing spindle;

7. Positive spindle lock;

8. Adjustable gibs on table;

9. Geared drive, lower noise.



Standard Accessories:

Draw bar; Drill chuck; Tool-holder bits; Coolant system; Operator manual;



Specifications

ZX32H

Worktable travel

X: 370mm,   Y: 190mm,  Z: 120mm

Dimension of worktable

710x210mm

Table load capacity

100kg

T-slots(number/width/spacing)

3x12x50mm

T-slot foot(number/width/spacing)

2x14x200mm

Spindle speeds

75~3200(12)rpm

Spindle taper

MT4

Quill stroke

120mm

Throat

270mm

Diameter of column

115mm

Max. distance spindle nose to worktable

610mm

Max. diatance spindle nose to base

1180mm

Drilling capacity in steel/ST37

32mm

Head swivel range

±45°

Thread cutting in steel/ST37

M16

Main motor rating

1.1kw

Coolant system

0.4kw

Overall dimensions(LxWxH)

880x750x1700mm

Weight

340kg
