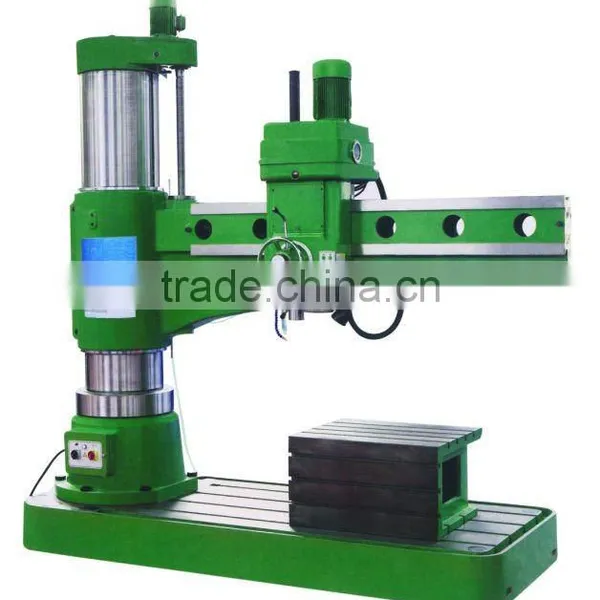

Large-sized and Heavy-duty Radial Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
RD825, RD620
Specifications
Large-sized Radial Drilling Machine1.Large-sized Radial Drilling Machine
2.Hydraulic transmission.
3. Hydraulic clamping.
4. Hydraulic speed exchanging
Model |
Unit |
RD825 |
RD620 |
Max.Drilling capacity |
mm |
80 |
63 |
Distance spindle axis to column generating line |
mm |
500-2500 |
450-2050 |
Diameter of column |
mm |
550 |
450 |
Spindle taper |
|
MT6 |
MT5 |
Spindle travel |
mm |
450 |
400 |
Spindle speeds range |
r/min |
16-1250 |
20-1600 |
Spindle speeds series |
|
16 |
16 |
Range of spindle feeds |
mm/r |
0.04-3.2 |
0.04-3.2 |
Spindle feeds |
|
16 |
16 |
Distance spindle nose to working surface of base |
mm |
550-2000 |
400-1600 |
Dimension of worktable |
mm |
1000x800x560 |
950x630x500 |
Dimension of base |
mm |
3530x1400x300 |
2900x1250x250 |
Overall size |
mm |
3730x1400x3790 |
3110x1250x3150 |
Power of main motor |
kw |
7.5 |
5.5 |
G.W/N.W |
kg |
15000/11000 |
8000/7000 |
Packing dimension |
cm |
416x165x248 |
382x163x170 |
