TRAPANO Series Auto-feeding Drilling Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Drilling Speed:
50-1250r.p.m
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Hydraulic Pillar Radial Drilling PressUS$ 5,000 - 25,000MOQ: 1 Set -
Universal Radial Drilling Press With Mechanical TransmissionUS$ 5,000 - 25,000MOQ: 1 Set
-
Vertical Knee-Type Box-Column Drilling MachineUS$ 5,000 - 25,000MOQ: 1 Set
-
Drilling Milling Machine MD-16AUS$ 295 - 350MOQ: 15 Sets
-
Hydraulic Type Radial Drilling MachineUS$ 5,000 - 25,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Drilling Speed
50-1250r.p.m
Brand Name
TIMAC
Model Number
TRAPANO-1/2/3/4/5
Voltage
as customer's request
Power(W)
750/1000w
Dimension(L*W*H)
75mm*73mm*146mm
Weight
320-390KG
Certification
CE & ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

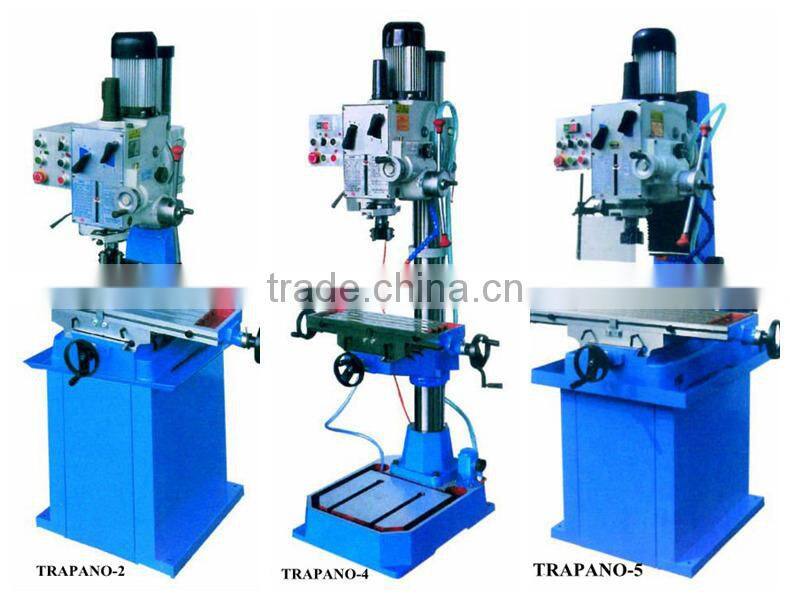

Auto-feeding Drilling /MillingMachine(TRAPANO series)
Product Description
Parameter:
| Model | Unit | TRAPANO-1 | TRAPANO-2 | TRAPANO-3 | TRAPANO-4 | TRAPANO-5 |
| Max. drilling capacity | mm | 40 | 45 | |||
| Width of facing milling | mm | / | 80 | / | 80 | 80 |
| Diameter of facing milling | mm | / | 22 | / | 22 | 28 |
| Diameter of column | mm | 115 | 115 | 115 | 115 | / |
| Spindle travel | mm | 110 | ||||
|
Distance from spindle axis to column generaing line |
mm | 261.5 | 260 | |||
|
Max.distance from spindle nose to table |
mm | / | 450 | 745 | 475 | |
|
Max.distance from spindle nose to base |
mm | 800 | / | 1245 | / | |
| Spindle taper | MT4/R8 | MT4 | ||||
| Range of spindle speeds | 50-1250 | |||||
| Series of spindle speed | r/min | 6 | ||||
| Spindle feeds | mm/r | 0.12, 0.18, 0.25 | ||||
| Dimension of table surface | mm | / | 730×210/820×240 | 540×470 | 585×190 | 730×210/820×240 |
| Table travel | mm | / | 450×170/540×170 | 515 | 370×140×515 | 450×170/540×170 |
| Dimension of base | mm | 690×520 | 605×400 | 690×520 | 605×558 | |
| Overall height | mm | 1450 | 1100 | 1760 | 1810 | 1100 |
| Main motor | w | 750/1100 | ||||
| Coolant motor | w | 40 | ||||
| G.W/N.W | kg | 360/320 | 370/330 | 390/350 | 385/345 | |
| Packing dimension(L×W×H) | cm | 75×73×146 |
86×74×116/ 97×77×116 |
72×74×191 |
86×74×116/ 97×77×116 |
|
