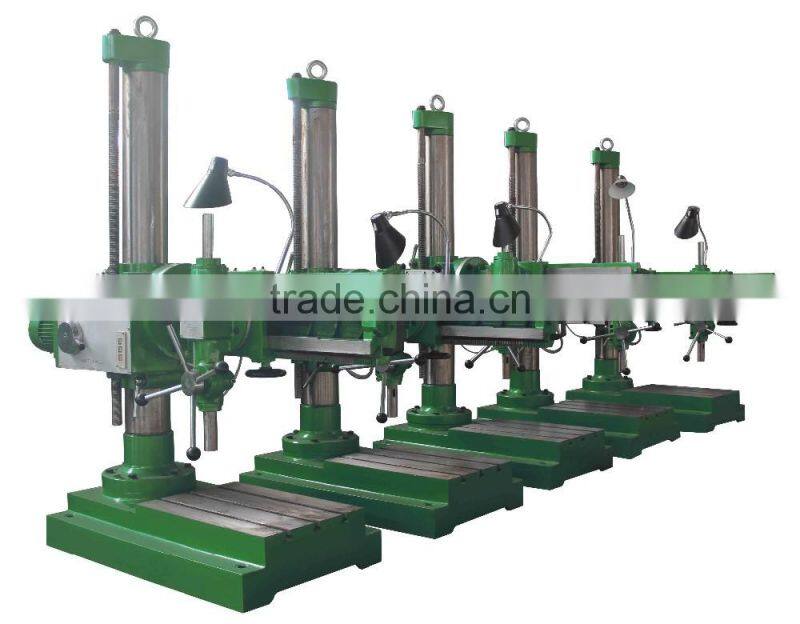

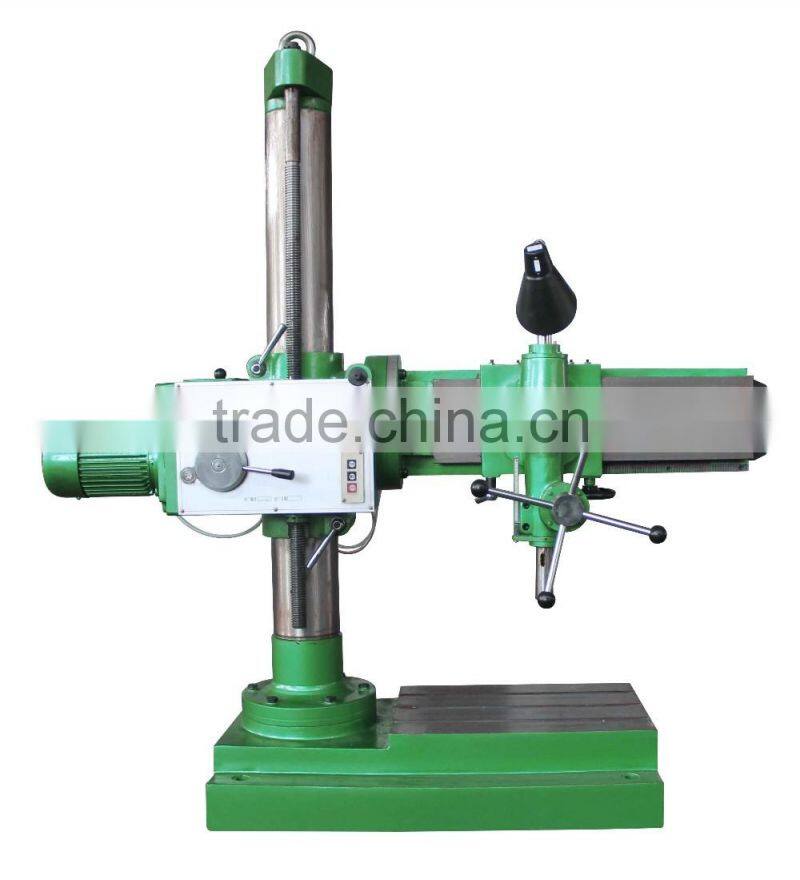

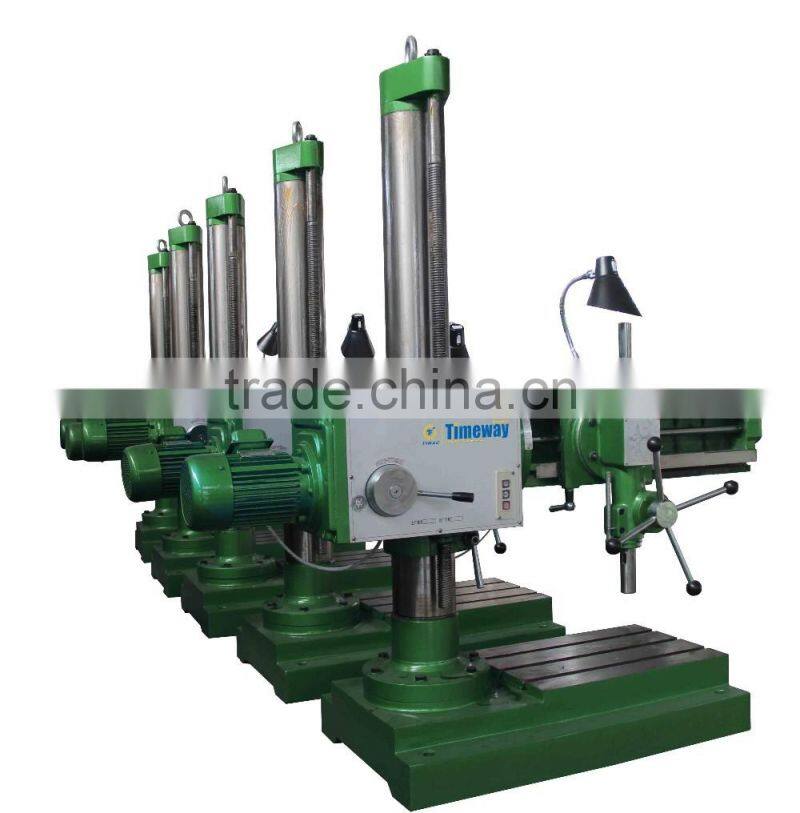

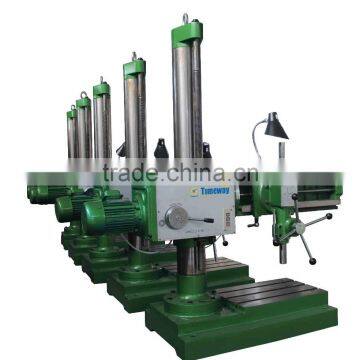

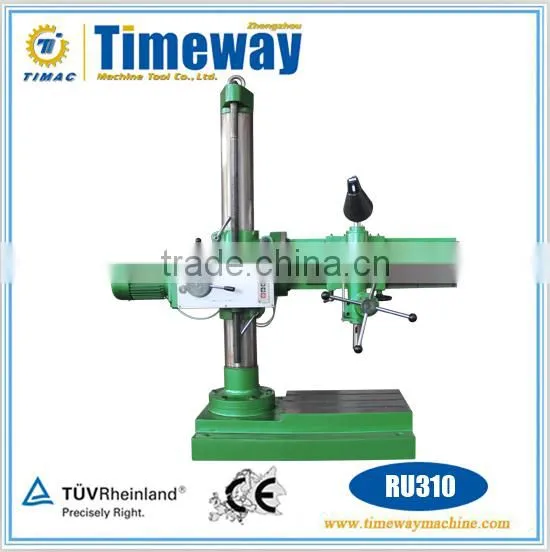

Mechanical-Type Single Column Radial Drilling Machine
RU310 RU208
Features:
- Base, column, boom and gear head are made of premium high-quality cast.
- Major design features include a column and a highly torsion-resistant boom.
- The gears feature hardened and precision-ground chromenickel steel gears for smooth and low-noise operation.
Technical Parameter:
Specification |
Unit |
RU208 |
RU310 |
Max. drilling diameter |
mm |
25 |
32 |
Distance from spindle center to column surface |
mm |
390-870 |
390-870 |
Distance from spindle nose to worktable surface |
mm |
65-865 |
65-865 |
Spindle box horizontal travel |
mm |
500 |
500 |
Radial ram rotary angle |
deg |
360° |
360° |
Spindle taper |
- |
Morse No.3 |
Morse No.3 |
Spindle speed range and grades |
rpm |
100-565(4 steps) |
173-960(4 steps) |
Feed speed and grades |
mm/r |
0.1-4(4 steps) |
- |
Spindle travel |
mm |
135 |
120 |
Main motor power |
kw |
1.5 |
1.5 |
Net weight |
kg |
900 |
850 |
Floor area |
mm |
635x430 |
635x430 |
Worktable size |
mm |
- |
- |
Overall dimension |
mm |
1760x570x1900 |
1760x570x1900 |
Standard Configuration:
• Mechanical clamping for spindle head, radial arm and column
• Hardened and ground guideway & gears
• Halogen work light
• Coolant system
• Tool & tool box
• Operator manual in English
• 380V-50Hz-3Ph or as client’s request.
|

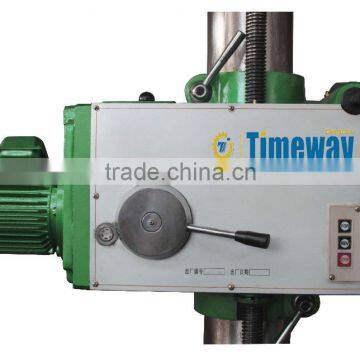

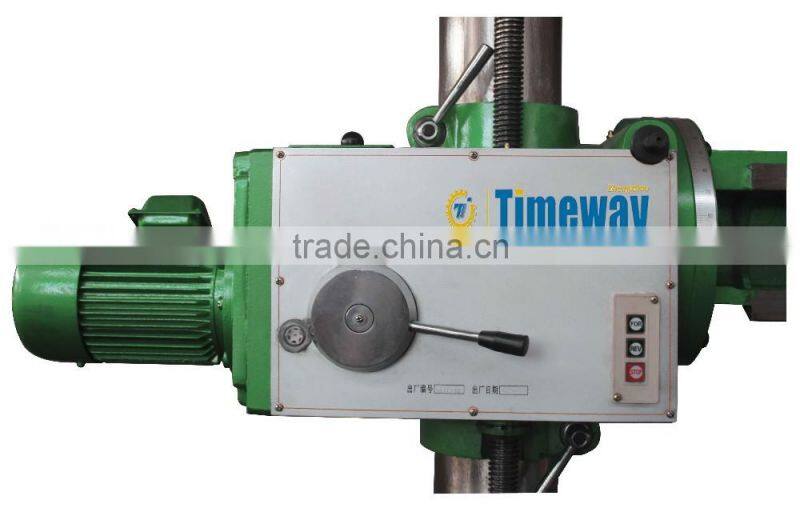

Gear Box and Main Motor |

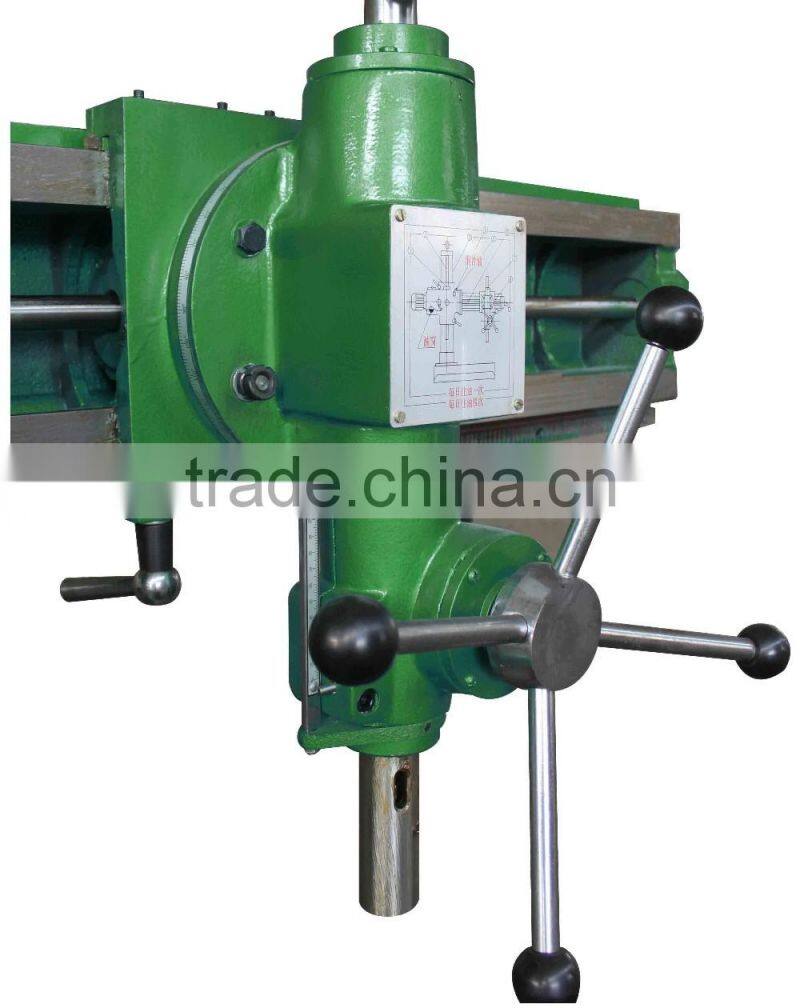

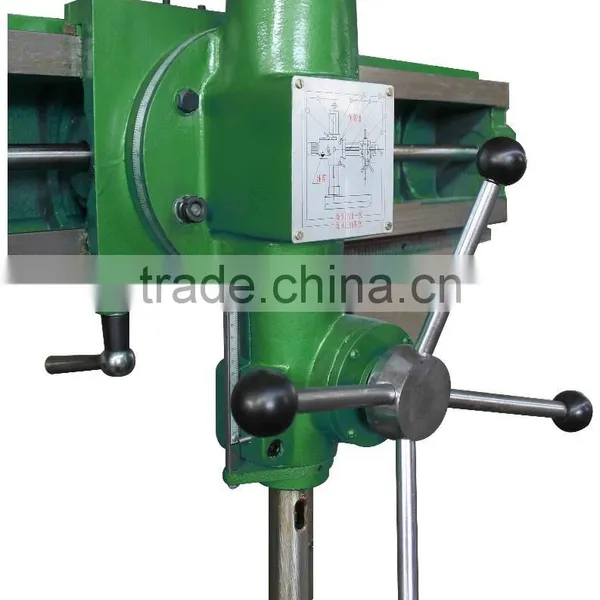

Spindle and Manual Feed Mechanical Transmission |
|

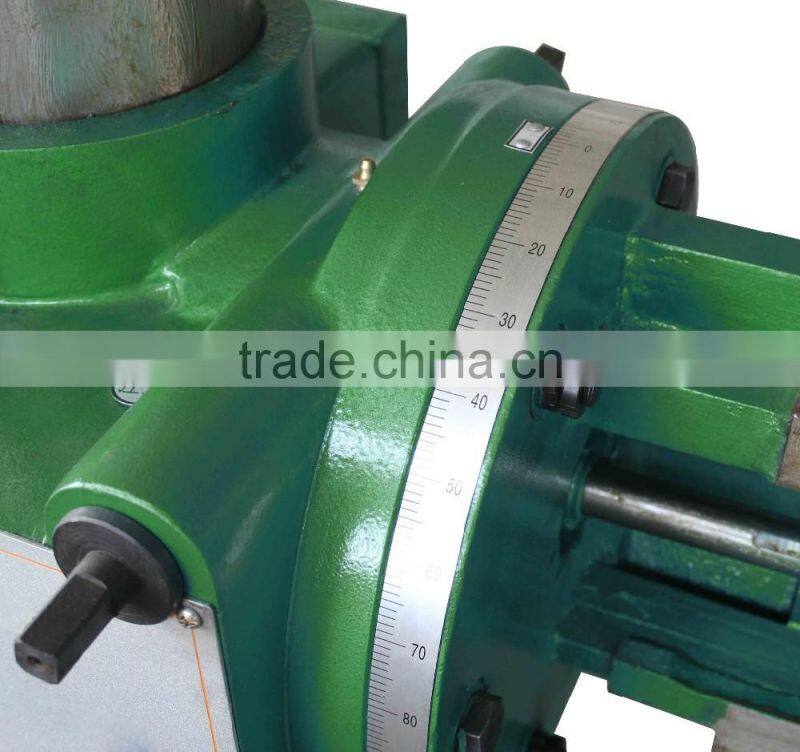

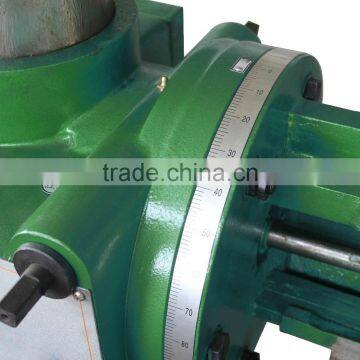

360deg Rotary Arm |
