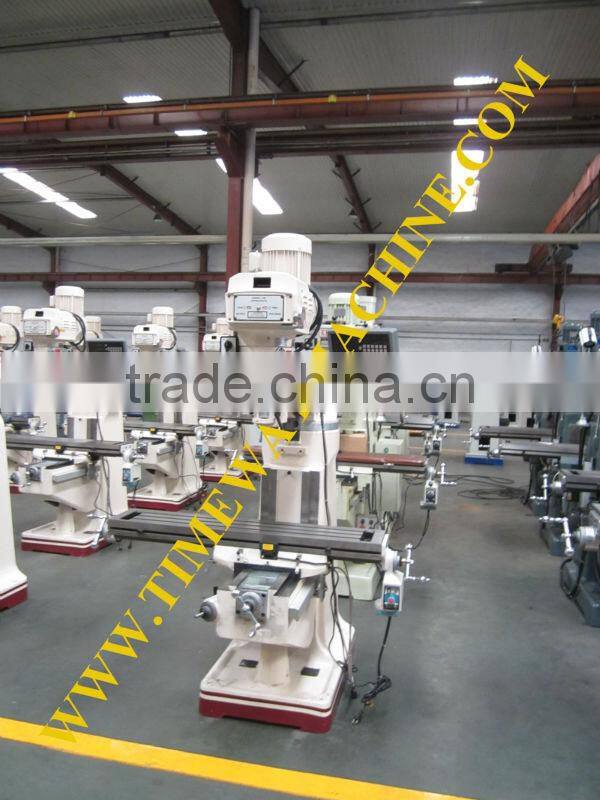

Help CenterM250D Universal Turret Milling Machine / Vertical Turret Milling Machine
Related Products
-
M250C Universal Milling Machine / Vertical Turret Milling MachineUS$ 2,500 - 6,500MOQ: 1 Set -
M250C Universal Turret Milling Machine / Vertical Turret Milling MachineUS$ 2,500 - 6,500MOQ: 1 Set
-
M250B Universal Turret Milling Machine / Vertical Turret Milling MachineUS$ 2,500 - 6,500MOQ: 1 Set
-
M250 Universal Turret Milling Machine / Vertical Turret Milling MachineUS$ 2,500 - 6,500MOQ: 1 Set
-
M230B Universal Turret Milling Machine / Vertical Turret Milling MachineUS$ 2,500 - 6,500MOQ: 1 Set
Specifications

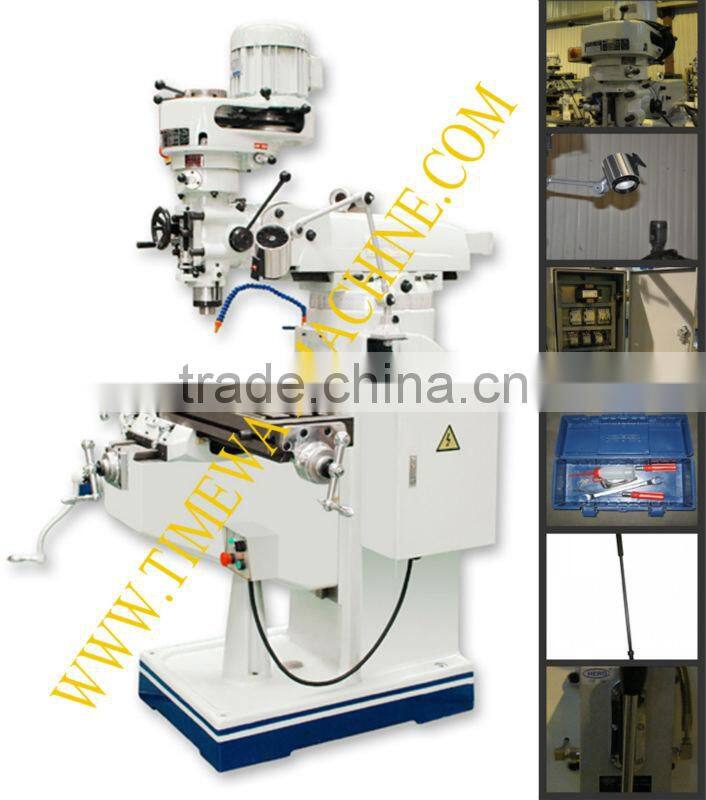

Universal Turret milling machine/Vertica turretl milling machine1.Table size:254x1370mm
2.High Precision Taiwan Made
Turret milling machine / Universal milling machine / Vertical milling machine
Standard configuration Optional configuration
Technical specification:
| Model | Unit | M230A | M230B | M250 | M250A | M250B | M250U | M250C | M250D | M300 | M300A | M330 | M330A | |
| Table size | mm | 230x1067 | 254x1270 | 250x1270 | 254x1270 | 305x1370 | 330x1370 | |||||||
| 230x1246 | 254x1370 | 254x1370 | 305x1500 | 330x1500 | ||||||||||
| Longitudianl travel | mm | 650 / 840 | 850 / 950 | 770 | 850 / 950 | 870 / 1000 | 840 / 1000 | |||||||
| Cross travel | mm | 305 | 420 | 400 | 420 | 380 | 368 | |||||||
| Vertical travel | mm | 400 | 420 | 400 | 420 | 430 | 450 | |||||||
| T-slot No. and size | mm | 3 x 16 | ||||||||||||
| Ram travel | mm | 312 | 470 | 500 | ||||||||||
| Distance from spindle to table | mm | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
| Spindle hole taper | Standard: R8 Optional : ISO30/ISO40 | Standard: ISO40 | ||||||||||||
| Spindle travel | mm | 127 mm | ||||||||||||
| Spindle speed | r.p.m | Standard: step 16 speed 50HZ: 65-4500 60HZ: 80-5440 | ||||||||||||
| Optional: Variable speed 65-4500 | Optional: Variable speed: 65-3750 | |||||||||||||
| Auto. quill feed | mm/r | Three steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15(0.006″) | Three Steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15 (0.006″) | |||||||||||
| Spindle Motor | kw/HP | 2.25kw / 3HP | 3.75kw / 5HP | 3.75kw / 5HP | ||||||||||
| Head Swivel | 90° | |||||||||||||
| Head Tilting | 45° | Fix | 45° | Fix | 45° | Fix | ||||||||
| Dimension of package | One | mm | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 | ||||||||
| Two | mm | 1450x1570x2080 | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 | |||||||||
| Three | mm | 1450x2180x2080 | 1650x2285x2235 | - | - | |||||||||
| Gross Weight | kg | 1100 | 1160 | 1550 | 1380 | 1420 | 1650 | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 | |

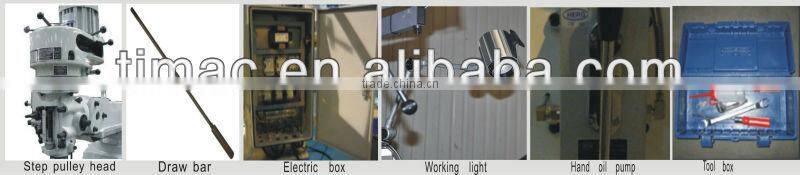

***Standard accessories:
Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box

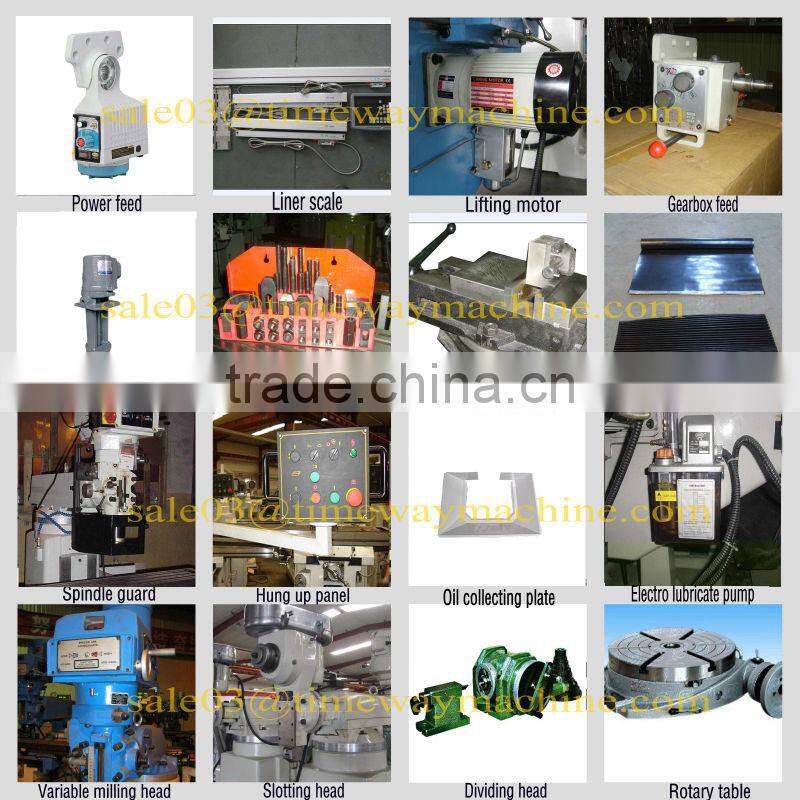

***Optional accessories:
Digital readout system(DRO), Machine vise, Power feed unit, Gear box power feed, Clamping kits, ISO40 collet chuck, R8 collet chuck, Oil collecting plate, Plastic splash guard, Cooling system

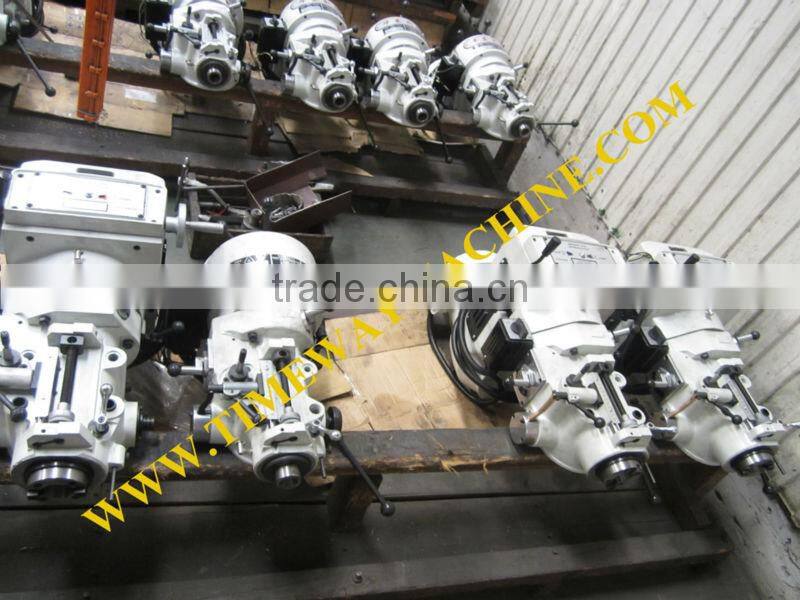

Milling Head made from Tanwan
(Alternatives: Step Pulley Head; Variable Speed Head; Inverter Head)

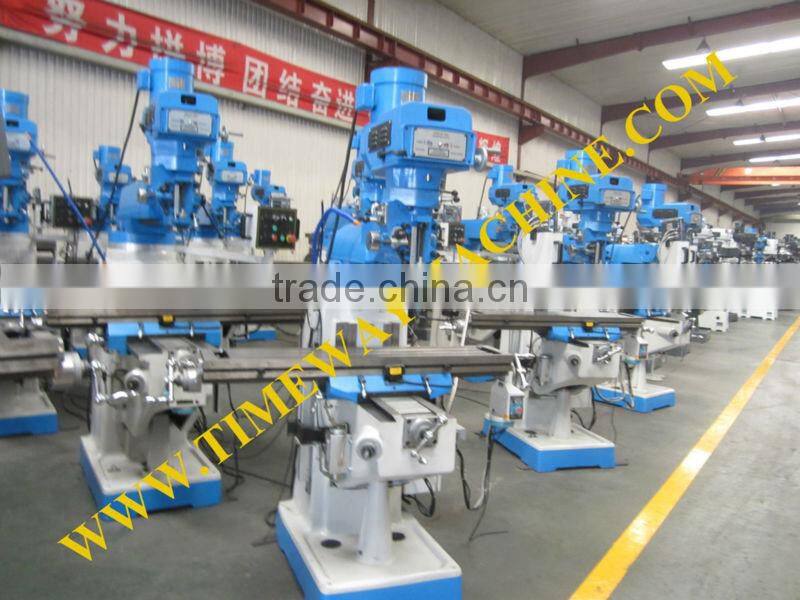

Milling Machine Assembly
Finished Milling Machine View
Production Capacity for 150 Sets Per Month
For more machine's information, please vistit our website: ;
or email to Peter Wong: sale03 at timeway
Hope you like our machines and professional service !!!
