M300A Universal Turret milling machine / Vertical turret milling machine

Specifications

Universal Turret milling machine/Vertica turretl milling machine1.Table size:254x1370mm2.High Precision Taiwan Made

Turret milling machine/Universal milling machine/ Vertical milling machine



Vertical Turret Milling Machine



Model

Unit

M230A

M230B

M250

M250A

M250B

M250U

M250C

M250D

M300

M300A

M330

M330A

Table size

mm

230x1067

254x1270

250x1270

254x1270

305x1370

330x1370

230x1246

254x1370

254x1370

305x1500

330x1500

Longitudianl travel

mm

650 / 840

850 / 950

770

850 / 950

870 / 1000

840 / 1000

Cross travel

mm

305

420

400

420

380

368

Vertical travel

mm

400

420

400

420

430

450

T-slot No. and size

mm

3 x 16

Ram travel

mm

312

470

500

Distance from spindle to table

mm

0-415

0-405

0-350

0-450

Spindle hole taper

Standard: R8  Optional : ISO30/ISO40

Standard: ISO40

Spindle travel

mm

127 mm

Spindle speed

r.p.m

Standard: step 16 speed  50HZ: 65-4500  60HZ: 80-5440

Optional: Variable speed 65-4500

Optional: Variable speed: 65-3750

Auto. quill feed

mm/r

Three steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15(0.006″)

Three Steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15 (0.006″)

Spindle Motor

kw/HP

2.25kw / 3HP

3.75kw / 5HP

3.75kw / 5HP

Head Swivel

90°

Head Tilting

45°

Fix

45°

Fix

45°

Fix

Dimension of package

One

mm

1400x1476x2030

1516x1550x2080

1566x1650x2080

1800x2016x2180

Two

mm

1450x1570x2080

1650x1790x2170

1720x1800x2175

1800x2200x2180

Three

mm

1450x2180x2080

1650x2285x2235

-

-

Gross Weight

kg

1100

1160

1550

1380

1420

1650

1590

1590

1700

1750

2300

2350



Features:



  M230A:

*Double 55°dovetail guide way is adopted on Both Y and Z axis;

*Adopted strengthen rib on both sides of the column;

*The work table surface and 3 axis guide way are hardened and precision ground.



  M230B:

*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;

*Adopted strengthen rib on both sides of the column;

*The work table surface and 3 axis guide way are hardened and precision ground



  M250A:

*Double 55°dovetail guide way is adopted on Both Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

*The work table surface and 3 axis guide way are hardened and precision ground.



  M250B:

*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;

*The guide way on saddle is lined with TF wearable material;

*The work table surface and 3 axis guide way are hardened and precision ground.



  M250:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material.



  M250C:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*Fixed structure is used to connect the mill head without adapter;



  M250D:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm.



  M250U:

*Rectangular guide ways on Y and Z axis;

*X, Y axis adopt auto feed gear box; Feed motor: 250w; Feed rate: 15, 23, 33, 48, 78, 114, 166, 257;

*The work table surface and 3 axis guide way are hardened and precision ground.



  M300:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.



  M300A:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor;

*Fixed structure is used to connect the mill head without adapter;



  M330:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

* Super saddle structure.



M330A:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

* Super saddle structure;

*Fixed structure is used to connect the mill head without adapter.



***Standard accessories:

Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box



***Optional accessories:

Digital readout system(DRO), Machine vise, Power feed unit, Gear box power feed,  Clamping kits,  ISO40 collet chuck, R8 collet chuck, Oil collecting plate, Plastic splash guard, Cooling system







Milling Head made from Tanwan

(Alternatives: Step Pulley Head; Variable Speed Head; Inverter Head)



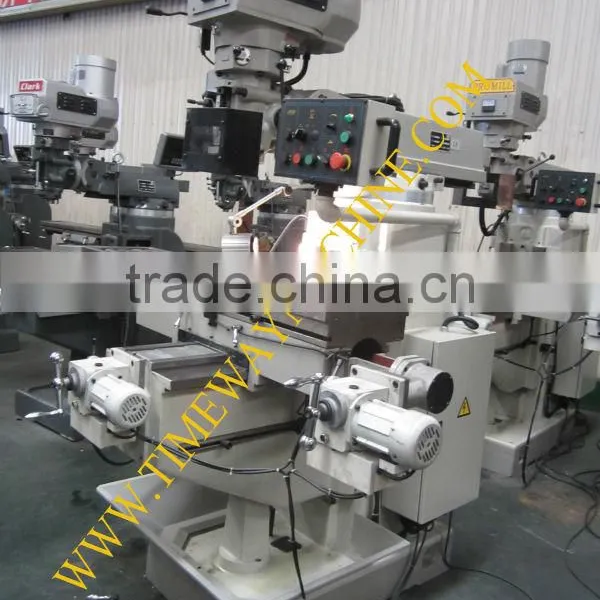

Milling Machine Assembly



Finished Milling Machine View
