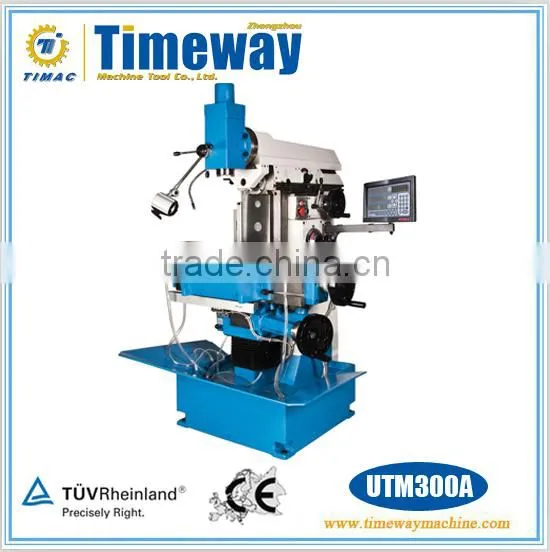

Universal Tool Milling Machine / UTM300A
Features:
*Milling machine for tool construction;
*Automatic feeds on all 3 axes;
*Outer arbor supporting for horizontal milling;
*Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
*Streamlined arrangement of operating controls on the right side;
*Vertical head quill for drilling, with hand lever feed;
*Quill stroke 80mm;
*Central lubrication;
*Hardened guide ways;
*Can be equipped with Digital Position Indicator.
Parameter:
Specification |
UTM300A |
UTM320A |

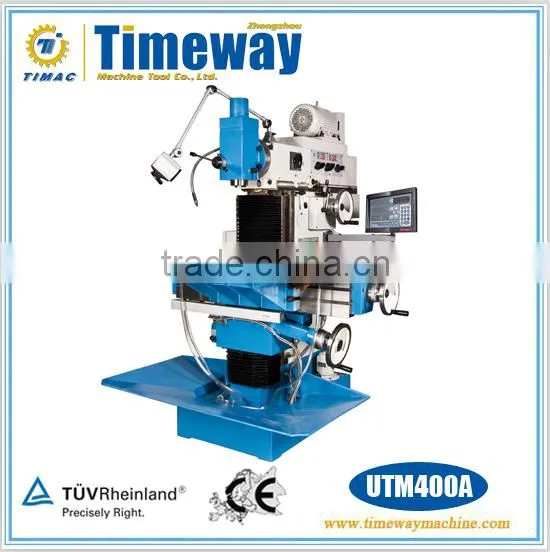

UTM400A |
Work space dimensions |
300 x750 mm |
320 x 750 mm |
400 x 800 mm |
Vertical table dimensions |
225 x 830 mm |
225 x 830 mm |
250 x 1060 mm |
T-slots,work table |
5 x 14 x 63 mm |
5 x 14 x 63 mm |
6 x 14 x 63 mm |
T-slots,vertical table |
2 x 14 x 126 mm |
3 x 14 x 63 mm |
3 x 14 x 63 mm |
Longitudinal travels(X) |
405(manual) / 395 mm |
45(manual) / 400 mm |
500 mm |
Transverse travel(Y) |
200 mm |
305(manual) / 300 mm |
400 mm |
Vertical travel(Z) |
390(manual) / 380 mm |
400(manual) / 390 mm |
400 mm |
Horizontal spindle(Min.) |
35 mm |
85 ± 63 mm |
95 ± 63 mm |
Horizontal spindle(Max.) |
425 mm |
485 ± 63 mm |
475 ± 63 mm |
Vertical spindle(Min.) |
|
85 ± 63 mm |
55 ± 63 mm |
Vertical spindle(Max.) |
|
440 ± 63 mm |
445 ± 63 mm |
Max.throat |
188 mm |
160 mm |
540 mm |
Speed range |
40-1600 r/min |
40~2000 r/min. |
40~2000 r/min. |
Spindle mount |
ISO 40, Taper 7:24 |
ISO 40, 7:24 |
ISO 40, Taper 7:24 |
X,Y,Z axis feeds |
|
10-380 mm/min. |
10~380 mm/min. |
Rapid feed |
|
1200 mm/min. |
1200 mm/min. |
Quill stroke |
80 mm |
80 mm |
80 mm |
Main motor rating |
2.2 kw |
2.2 kw |
3 kw |
Feed motor rating |
|
3.59 kw |
5 kw |
Dimensions(LxWxH) |
1170×1210×1600 mm |
1215 x 1200 x 1800 mm |
1390 x 1430 x 1820 mm |
Weight |
1100 Kg |
1300 kg |
1400 Kg |
***Standard accessories:
*Complete tool;
*Cutter arbor (dia. Φ16, 22, 27, 32mm);
*Reducing sleeves (Morse1, 2, 3)
*Spring collect (dia. Φ2, 3, 4, 5, 6, 8, 10, 12mm)
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS
Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS
Container loaded: 3 sets / 20'GP
