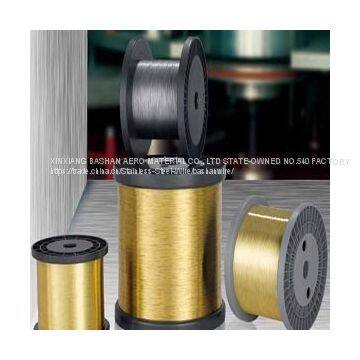

Hot Sale Edm Brass Wire for CNC Machine

Hot Sale Edm Brass Wire for CNC Machine thumbnail-1
Hot Sale Edm Brass Wire for CNC Machine thumbnail-2
Hot Sale Edm Brass Wire for CNC Machine thumbnail-3
Hot Sale Edm Brass Wire for CNC Machine thumbnail-4
Hot Sale Edm Brass Wire for CNC Machine thumbnail-5
Hot Sale Edm Brass Wire for CNC Machine photo-1
Hot Sale Edm Brass Wire for CNC Machine photo-2
Hot Sale Edm Brass Wire for CNC Machine photo-3
Hot Sale Edm Brass Wire for CNC Machine photo-4
Hot Sale Edm Brass Wire for CNC Machine photo-5
US$ 4 - 10 MOQ: 50 Kilometers
Key Specifications
Get Latest Price
Brand Name:
bashan
Place of Origin:
China
Model Number:
alloy, 316/304
Contact Supplier Request Quote Chat Now
Xinxiang Bashan Aero Material Co., Ltd State-owned No.540 Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin,qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name bashan
Place of Origin China
Model Number alloy, 316/304
Type Brass Wire
Application EDM
Ultimate Strength (≥ MPa) 980
Alloy Or Not Is Alloy
Grade Stainless Steel
Wire Gauge 0.10mm,0.15mm,0.20mm,0.25mm,0.35mm
Cu (Min) 62%
Product Description

1. Grade: Copper

2.Model Number:0.25mm

3. Alloy Or Not:Is Alloy

4. Place of Origin:Henan, China (Mainland)

5.Standard:ISO9001-2008

6.Certification: Passed ISO9001:2008 quality certificate

                            Passed ISO/TS16949:2009 certificate

                            Passed GJB9001A-2001 military quality certificate.

7.Brand Name:Bashan

Description of Hot sale edm brass wire for CNC machine

Product Name
Hot sale edm brass wire for CNC machine
Material
quality brass wire
 Wire diameter
0.30mm, 0.25mm, 0.20mm
Weight/Spool
3kg/5kg/7kg/15kg/20kg
Tensile strength:
1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2
tolerance
0.001
spool
P3,P5,P10,P20,DIN125,DIN160,DI
Ultimate Strength (≥ MPa)
980
Packing
Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
Used
used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino

Specification of Hot sale EDM wire for CNC machine

Condition
Diameter(mm)
Tolerance(mm)
Tensile Strength (N/mm²)
Type of Spool
(Standard Weight)
       Hard
0.10
±0.001
≥980
DIN125(3kg,3.5kg
0.15
±0.001
≥980
0.20
±0.001
≥980
DIN125(3kg,3.5kg)

p5(5kg)

DIN160(7kg,8kg)

DIN200(15kg,16kg)
0.25
±0.001
≥980
0.30
±0.001
≥980
    Semi-hard
0.25
±0.001
480~520
0.30
±0.001
         Soft
0.25
±0.001
380~420
0.30
±0.001
Reliable Raw Materials

Good and reliable raw material is the most important factor of producing excellent fine stainless steel wire. Bashan company use good raw materials from well-known iron manufacturers at home and abroad. Ugitech in France, Hikari Works in Japan, Tisco in China, D&B Special Steel in China, Ruipu in China, etc.

Packing & Transport
Packing Details of Hot sale edm brass wire for CNC machine:

* Vacuum packing, sealed with PVC        cellophane, moistureproof,quakeproof,   and corrosion resistance.
*  Carton box

Processing & Delivery Time of Hot sale edm brass wire for CNC machine:

* Common products in one week.

* Special products according to Contract.

MOQ Of Hot sale edm brass wire for CNC machine:

*  500Kilogram/Kilograms

* Payment terms:  T/T, L/C , Paypal,        West Union etc.
*  Trade term:  EXW/ FOB/ CIF.

Our most professional packaging
Transport of large trucks to the seaport
And international market
Material
Type
D1
D2
d
W1
W2
Spool/box
Spool W (k)
Volum/box
ABS
DIN125
125
80
20
125
100
4
0.2
0.254X0.254X0.127=0.008M3
P3
130
80
20
110
90
4
0.2
0.264X0.224X0.132=0.008M3
P5
160
90
20
114
90
4
0.33
0.324X0.232X0.18=0.014M3
DIN160
160
100
22
160
128
2
0.35
0.324X0.162X0.18=0.009M3
DIN200
200
125
22
200
160
1
0.66
0.22X0.22X0.22=0.01M3
Our Company

Xinxiang Bashan Aero Material Co., Ltd.

In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

Factory
Basahn  factory  affiliated  to  China  Aviation  Industry  Corporation (AVIC),  is  the  only  professional  military  manufacturer  of  stainless  steel  wire,  metal  wire  mesh,  filter  element,  special  filtration   component  and  wire  thread  insert.
Workshop

1) 800 tons of stainless steel wire of medium and fine wire.3600 tons of coarse wire above 1mm in diameter.

2) 500 thousand square meters of high precision wire cloth in nominal aperture sizes from 6.00 to 0.02mm.

3) 10 million pieces of thread inserts, including free run type and screw-locking type with ranges of M2-M45mm.

Warehouse

We have a professional warehouse management system to ensure the safe storage of our products.

Team  & Quality Control

We carry out a strict quality management system in accordance with ISO9001，TS16949，ISO 14001.

Our Certifications

1）Passed ISO9001:2008 quality certificate
2）Passed ISO/TS16949:2009 certificate
3）Passed GJB9001A-2001 military quality certificate.
4）Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
