Micro motion switch Z-15GW21-B
- 100000 Piece / Pieces per Month
- Ningbo
- L/C D/P D/A Credit Card PayPal
- High lifespan KW2-3 series KW2-3-02P-30-5 micro switch long handle small micro action
- Limit Switches Professional Customised Source Factory Silver Contact Quick Switch for Rail Transportation
- Travel Limit Switches Manufacturers Direct Sales Self-cleaning contacts Micro Switches for Automation Control
- Micro Switch Waterproof Strength Factory Professional Customised Micro Switch Waterproof for Rail Switches
- LXC micro switch high-voltage switch is suitable for high-speed rail transit travel switch circuit breakers
- Magnetic blow micro switch high voltage switch for railroad transportation pure silver contact PC housing
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DAIER | Model Number: | Z-15GW21-B |
Max. Current: | 16A | Max. Voltage: | 250VAC | Operating Temperature: | -25℃~+80℃ |
Protection Level: | IP40 |
Product Description

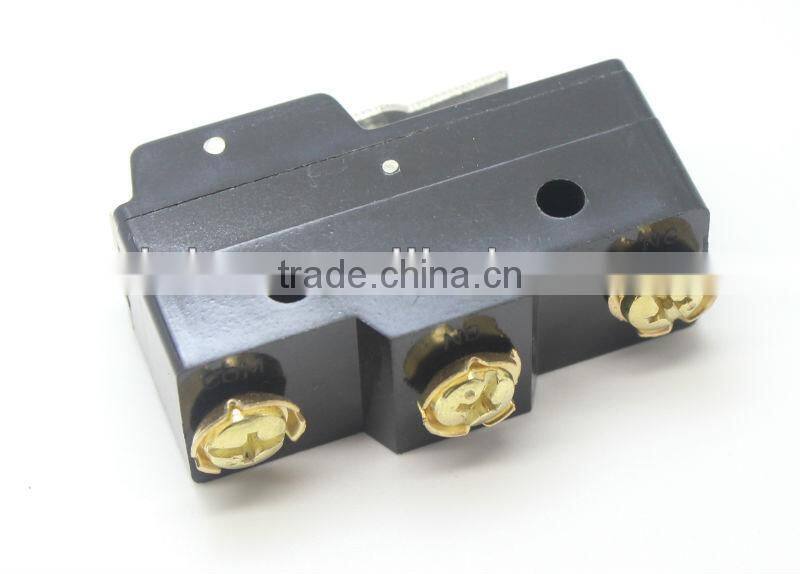

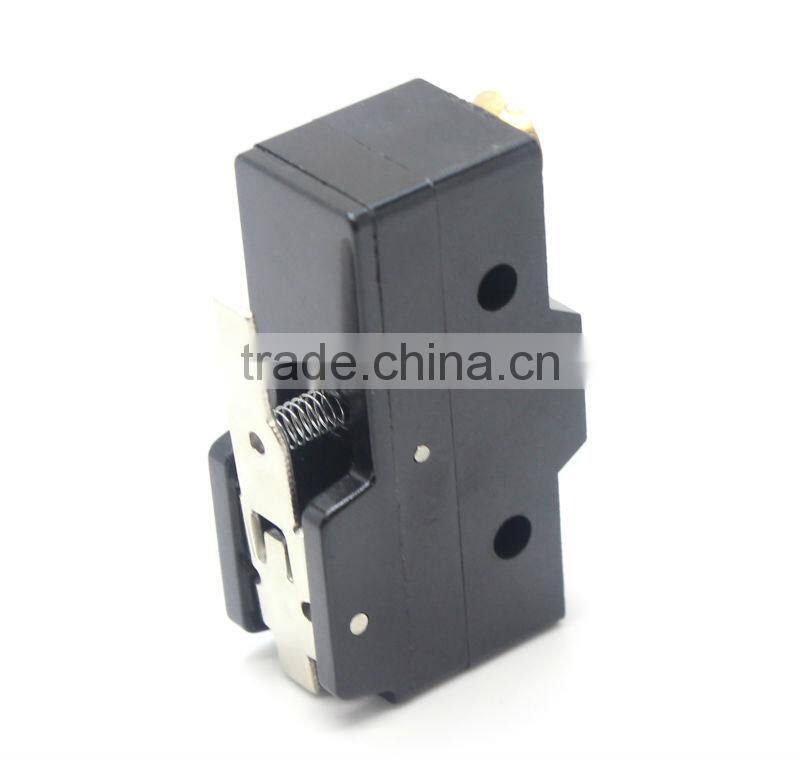

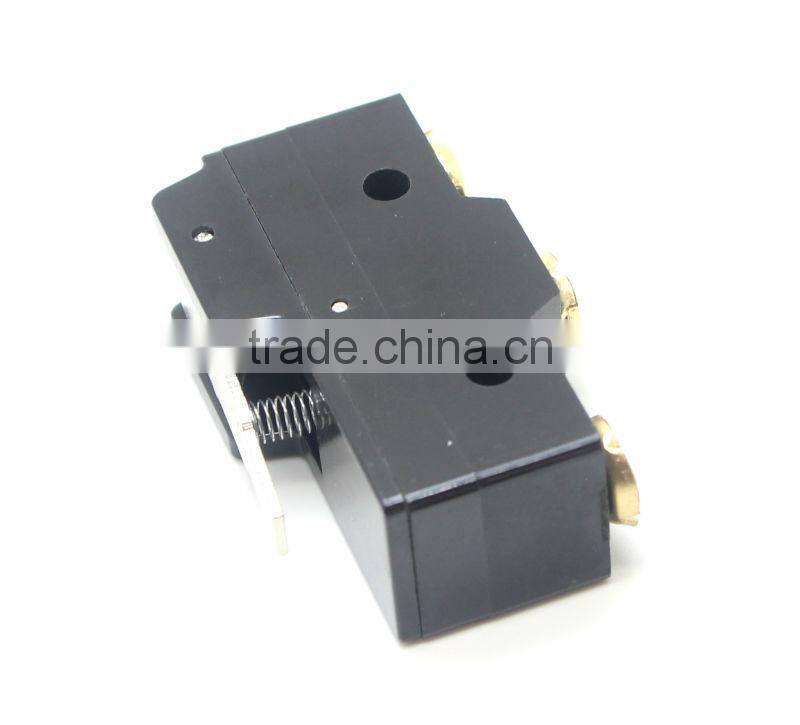

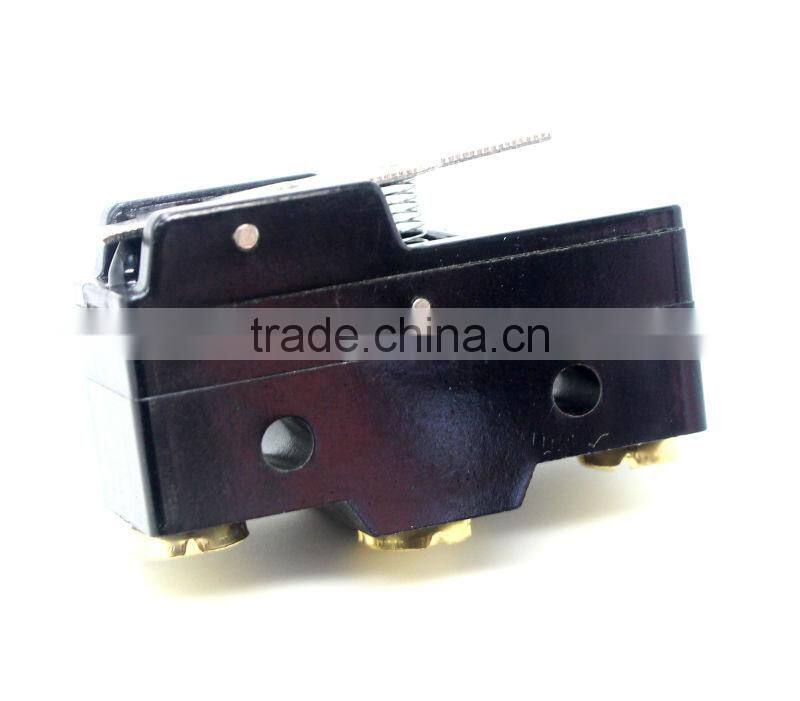

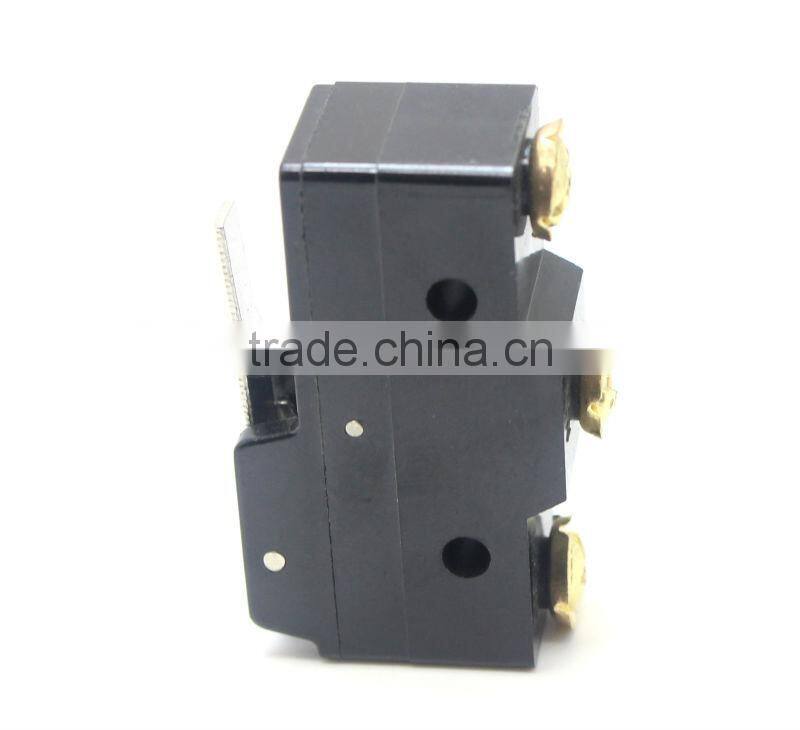

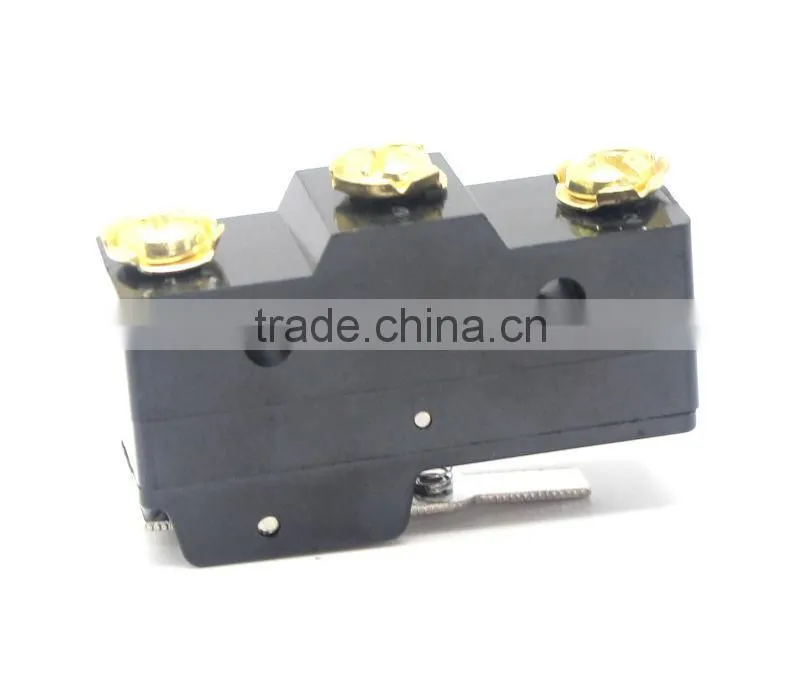

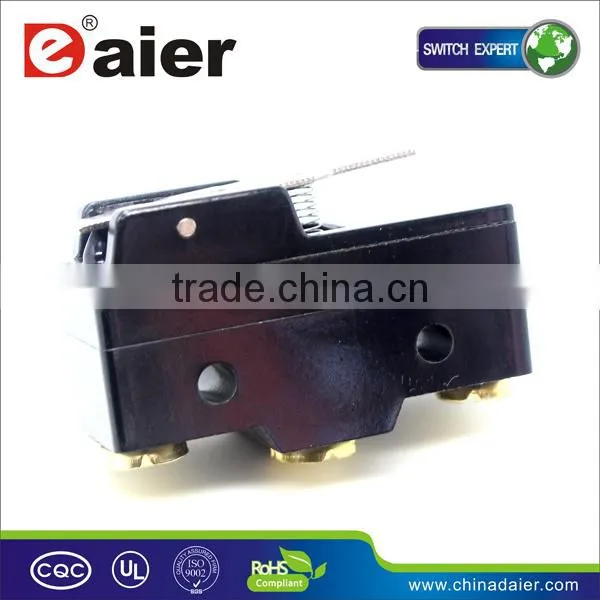

Micro motion switch Z-15GW21-B
micro motion switch
1.Z-15GW21-B
2.screw terminals
3.16A 250V
4.approval:CQC,CE
- The Main Thchnology Performane
Features: | |
5 current ratings | |
Choice of actuator styles | |
3 terminal types (optional screw terminals available consult factory) | |
3 contact arrangements | |
Long-life coil spring mechanism | |
High-temperature 150°C and 200°C | |
available on select models (consult factory) | |
Specifications: | |
Electrical: | |
EllectricalRating: | 15A,125/250VAC;3/4HP,125VAC 1-1/2HP,250VAC |
Temperature Rating: | 105°C Std. (150°C and 200°C optional) |
Flammability Rating: | UL94HB |
Materials: | |
Case: | General Purpose Phenolic |
Actuating Button: | Thermoplastic Nylon |
Common Terminals: | Brass |
NO and NC Terminals: | Brass |
Moving Blade: | Brass |
Spring: | Stainless Steel |
Auxiliary Actuators: | Cold-Rolled Steel (Nickel-Plated) |
Roller: | Sintered Stainless Steel |
Contacts: | Silver-Cadmium Oxide |
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.

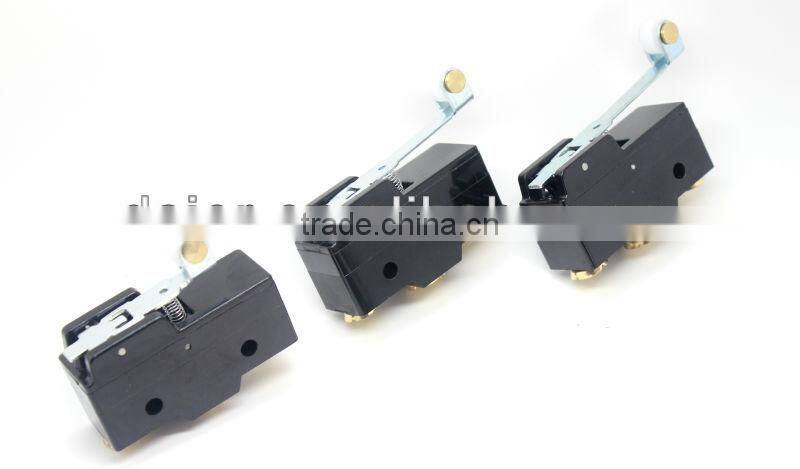

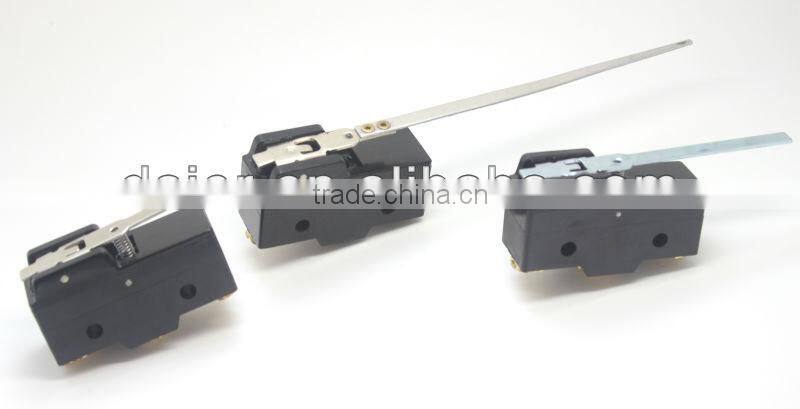

- PRODUCT SHOW
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of BNC connectors, push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
